Piezoresistive OEM Pressure Sensing Element for Gas (MPM283)

Name: Piezoresistive OEM Pressure Sensing Element for Gas (MPM283)
Brand: all-electronics-online.com
SKU: 774497205
Availability: InStock
Rating: 4.8 (121 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM283
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure Range:	0~700kpa....100MPa
Pressure Type:	Sealed Gauge,Gauge,Absolute
Overpressure:	1.5 Times Fs
Diameter:	12.6mm
Long Term Stability:	+-0.15%Fs
Houisng:	Stainless Steel
Impact:	100g,11ms
Compensated Temp:	-10~80c
Operation Temp:	-40~125c
Storage Temp:	-40~125c

Product Description

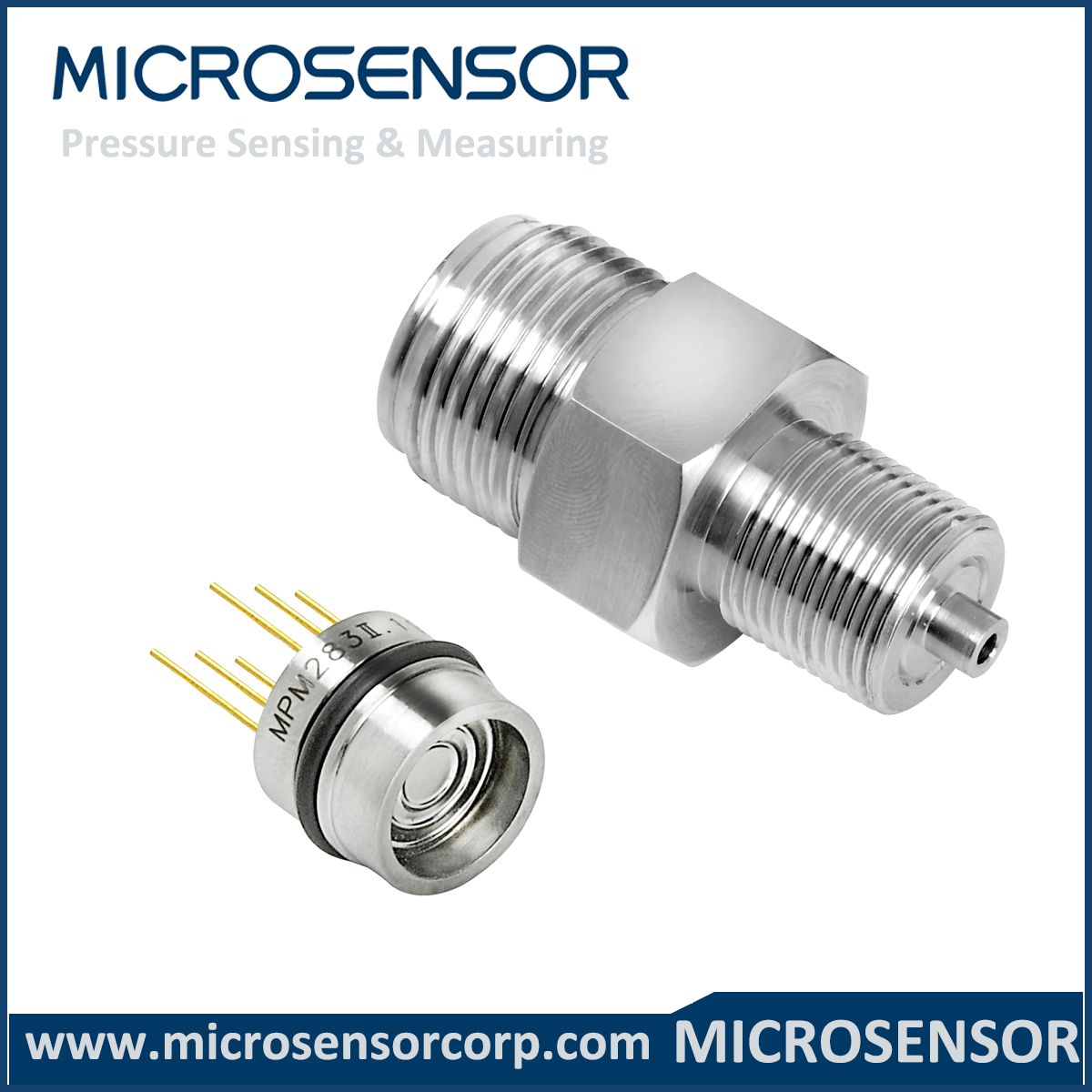

Piezoresistive OEM Pressure Sensing Element for Gas (MPM283)

Features:
     1. Piezoresistive;
     2.12.6mm;
     3. SS316L;
     4. Constant current power supply

Applications:
     1.Industrial process control
     2.Level measurement
     3.Gas, liquid pressure measurement
     4.Pressure inspection meter
     5.Pressure calibrator
     6.Liquid pressure system and switch
     7.Cooling equipment and air conditioner
     8.Aviation and navigation inspection

Description:
MPM283 is OEM piezoresistive pressure sensor with stainless steel and isolated diaphragm, the whole product has integrated construction, high endurance, high stability and good reliability, it can be used specially for middle and high pressure measurement.

Specifications


Span thermal error		±0.75	±1.0	%FS, @35ºC
Compensated temp. range	-10~80			ºC
Working temp. range	-40~125			ºC
Storage temp. range	-40~125			ºC
Stability		±0.1	±0.2	%FS/year
* testing at basic condition ** 100MPa pressure sensor's non-linearity: typ. ±0.30, max. ±0.35(units ±%FS,BFSL)

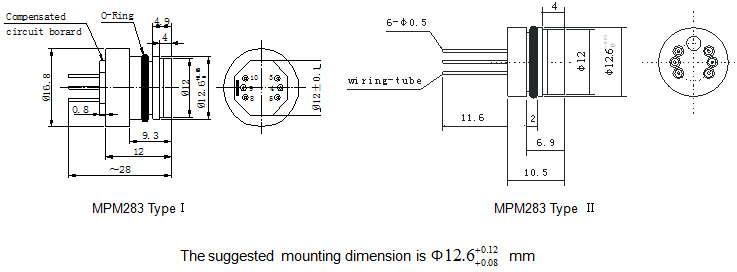

Construction Outline:

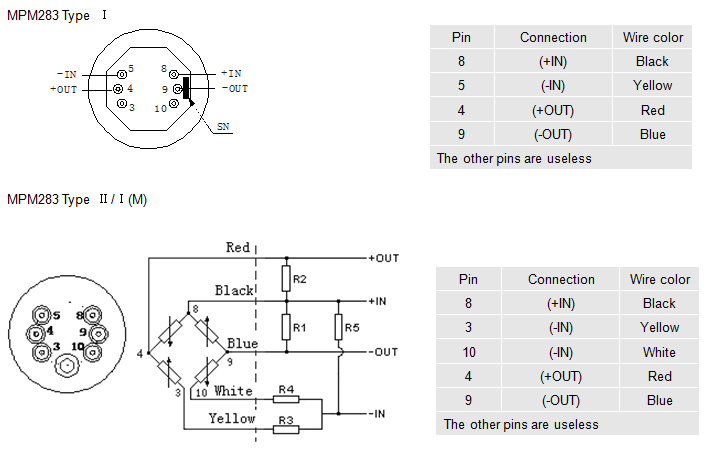

Electric Connection:

Order guide:

MPM283

Piezoresistive OEM Pressure Sensor

Code

Assembling type

with cap Φ16.8 mm

Φ12.6×10.5 mm

Range code

Pressure range

Pressure type

0~700kPa

G.A

0~1000kPa

G.A

0~2MPa

G.A

0~3.5MPa

G.S.A

0~7MPa

0~10MPa

0~20MPa

0~35MPa

0~70MPa

0~100MPa

Code

Pressure type

Gauge

Absolute

Sealed gauge

Code

Temperature compensated type

With lasar trimming compensated circuit borard (only for MPM283 I )

Compensated by outer resistors

Code

Electric connection

Kovar pin(default)

flexible wire, default length:100mm

MPM283 II 17 S M 2 the whole spec
