Pipe Anti-Freeze Protect Heating Cable GS and Ce Certificate

Name: Pipe Anti-Freeze Protect Heating Cable GS and Ce Certificate
Brand: all-electronics-online.com
SKU: 767957225
Availability: InStock
Rating: 4.8 (20 reviews)

Price:	US $ 8/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JYSH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	16or17-976
Length:	DIY
Application:	Heating
Insulation Material:	XLPE
Certification:	UL
Type:	PVC
Conductor Type:	FEP PVC
Conductor Material:	Alloy
Brand:	Senphus

Product Description

pipe anti-freeze protect heating cable GS and CE certificate

Senphus Pipe anti-freeze protect heating cable is from 1m to 49m usually, and we have exported them to Europe and North America for many years.The 6 to 13 degree thermostats can control the temperature of the heating cable and will save more power.

No.	Model (Article)	Length(M)
1	1M-17W	1m
2	2M- 32W	2m
3	4M-64W	4m
4	8M-128W	8m
5	12M-192W	12m
6	14M-224W	14m
7	18M-288W	18m
8	24M-384W	24m
9	36M-576W	36m
10	37M-629W	37m
11	49M-784W	49m

calibre	15mm	22mm	28mm	35mm	42mm	48mm	60mm	76mm
Without pipe insulation	-20°C.	-13°C.	-10°C.	-7°C.	-5°C.	-4°C.	-3°C.	-2°C.
With 13mm pipe insulation	-45°C.	-45°C.	-40°C.	-40°C.	-35°C.	-30°C.	-25°C.	-20°C.

Installation:

first unwind the heating cable. The cable must never be connected to the power line when it is wound up.
if the cable is too inflexible because of low temperatures, unwind it and put it for some minutes into the plug.
afterwards you can pass the cable.
the area around the pipe where you want to connect it with the cable must be accessibly and non-attached.
the heating cable can not be passed behind walls

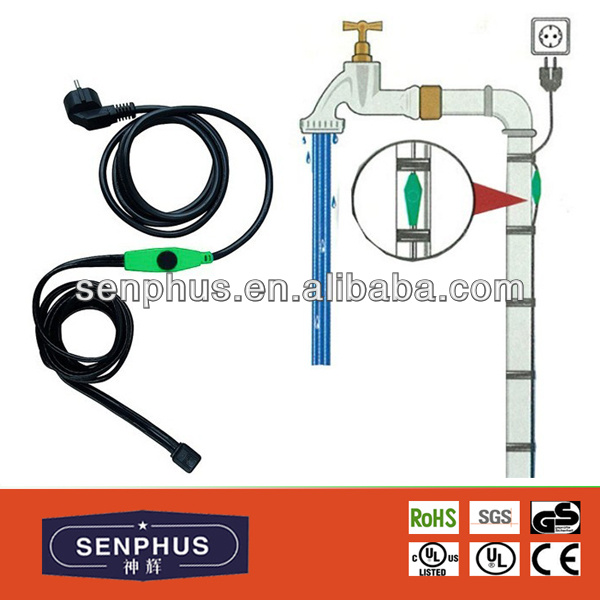

put the thermostat with the round black contact area tightly on the coolest point of the pipe and fix it with insulating tape.

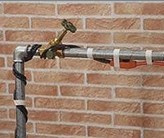

finally put the whole cable on the pipe and fasten it every 30~60cm with insulating tape.
attention: the cable must be fastening straight on the pipe
now you can check if your cable works.
afterwards insulate the water pipe and the heating cable with mineral rock wool or foam. Attention: never use more than 13mm of this material to insulate.
in general the heating cable must be protected against mechanical damage or biting.
the heating cable can not be put into liquids.
finally plug the cable into a 230V main plug.

Jiangyin Senphus Electrical Material Co., Ltd is a new Hi-tech enterprise of heating alloy, heating cable/mat, heating wire, silicone rubber heater, drum silicone rubber heater, thermostat, which is engaging in R&D, manufacture and sale.

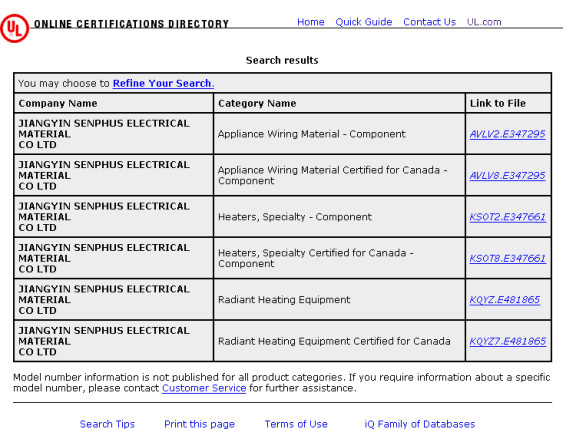

We have our own alloy smelting factory, possessing first-class production and advanced research facilities, so that we guarantee the top quality of our products. We have already passed ISO9001 quality management system and achieved the examination report of National Center for quality Supervision & Test of Electric Wire & Cable, and gained the European Union CE certification, UL certificate, GS Certificate, electromagnetic radiation certification, SGS and REACH certification.

Heating cable/wire and temperature controller system are widely used in wind power blades, construction heating, pipeline heating, outdoor snow melting, soil heating field and so on. Silicone rubber heater are widely used in electrical household appliance, spaceflight, petroleum, metallurgy, military project, chemical, electric power, medical appliance, mechanism, outdoor communication, automobile, etc. Industry.

Our products have been exported to America and Europe, Africa, Southeast Asia, like USA, Canada, England, France, Holand, Poland, Peru, South Africa, Italy, Greece, Thailand, India, Hongkong, etc. More than thirty countries and areas.

Our company always persist in"reputation first, quality high and customers supreme" management ideal. We will use great products, competitive price, professional service to cooperate with you and gain win-win!

OEM is welcome! !
