PIR Motion Sensor Module for Automatic Detection Electrical Appliances

Name: PIR Motion Sensor Module for Automatic Detection Electrical Appliances
Brand: all-electronics-online.com
SKU: 784422445
Availability: InStock
Rating: 4.8 (72 reviews)

Price:	US $ 2-3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HW8002
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operating Voltage:	4-12 V
Operating Temperature:	-20 C - 50c
Distance:	0.5-27m
Angle:	10*140
Frequency:	10.525GHz
Delay Time:	2s
Color:	Green
Warranty:	2 Years
Weight:	2g

Product Description

PIR Sensors Module for Automatic Detection Electrical Appliances

Overview

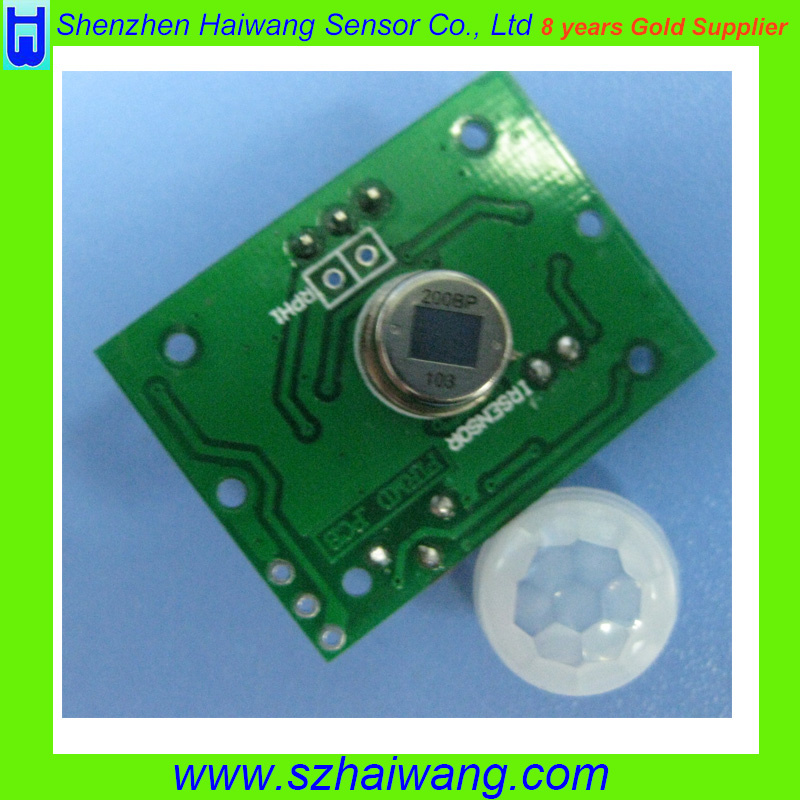

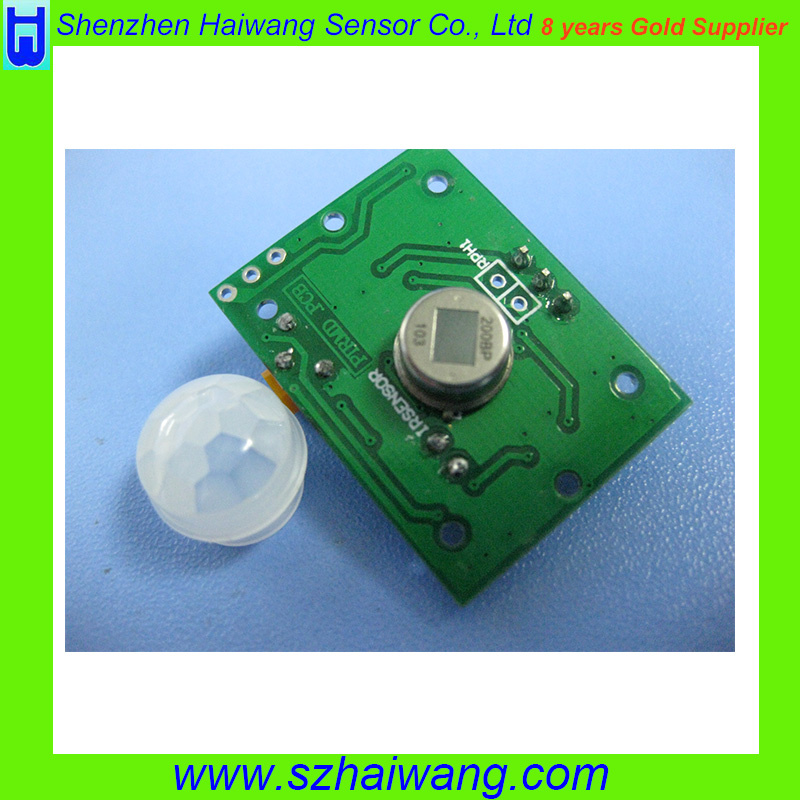

HW8002 is a pyroelectric miniature sensor module which can detect infrared from human body and output the electrical signals.

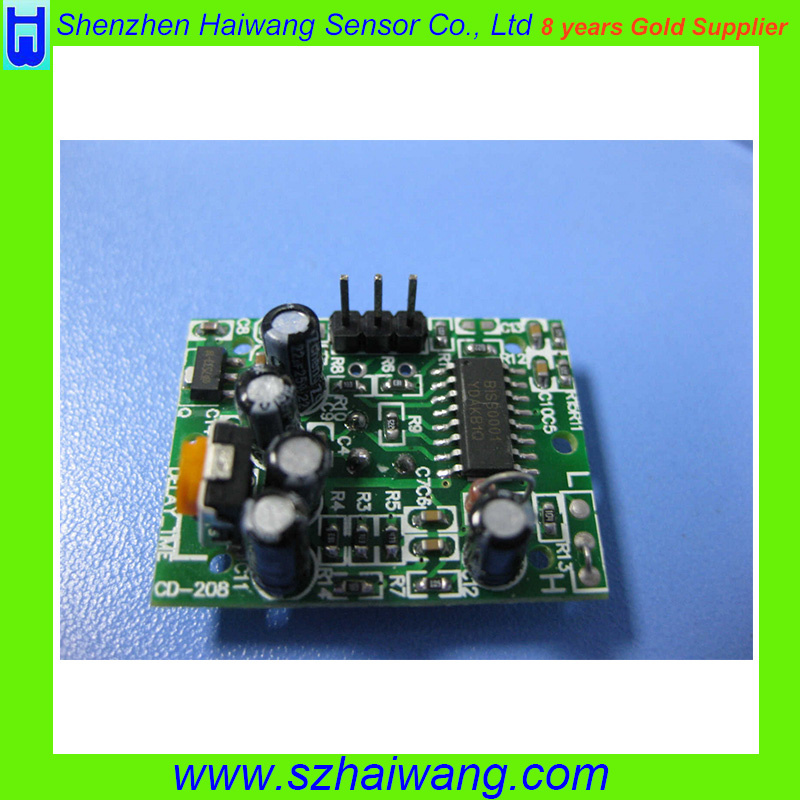

The HW8002 consists of a PIR detector, Fresnel lens and a PCB with an analog IC, BISS0001 and components, making it ideal for usage in motion detection equipment.

Usage
The module is ideal for all kinds of automatic detection devices like lighting controls,automatic doors, motion detectors,security guard monitors,alarms and so on.

Dimension

Operation Voltage	4-12V
Output Pulse Width	0.5s
Current	400mA-5V
Effective Distance	0.5-27m
Size	25*35mm
PIR Input Gain	68dB
Delay Time	0.1-25mins
Opereation Temperature	-20-50
Frequency	10.525GHz
Angle	10-140 degree

All the dimensions above can be customized.

Warm note
1. Strictly prohibited to operate in charge to avoid any mistake, such as burn out circuit or get an
electric shock.
2. Avoid being installed in the rain, to prevent damage or affect the lifetime.
3. Better install far away from the place of the magnetic field or the conductor to avoid wrong
actions.
