PIR Motion Sensor Module(HW8002)

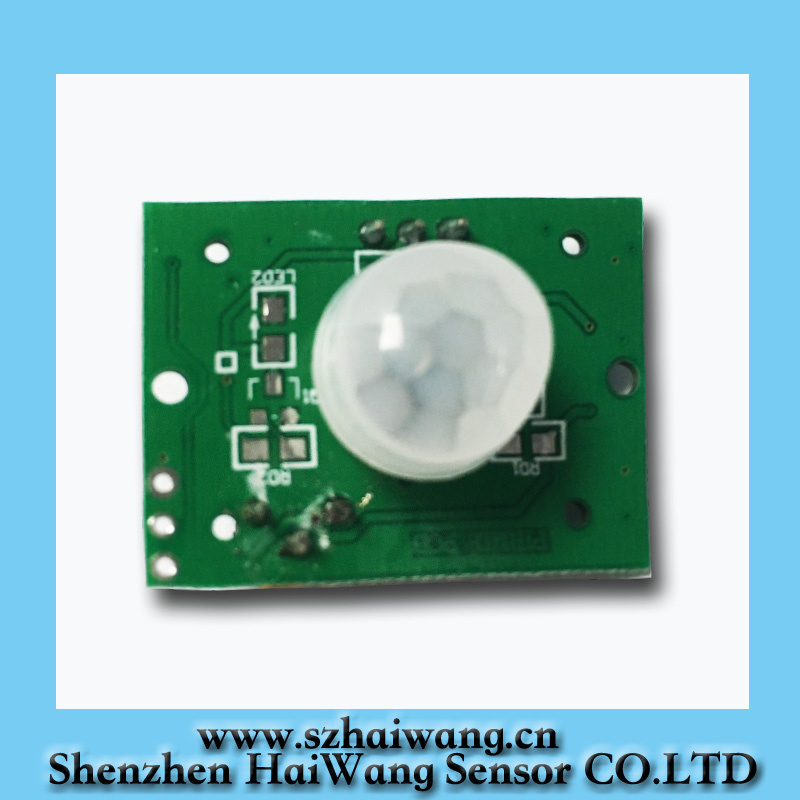

HW8002 PIR control module
key features of sensor module:
*A PIR detector combined with a fresnel lens ,PCB, analog IC
*limited components to form the module.
*High level output of variable width is provided.
HW8002 is a pyroelectric sensor module which developed for human body detection. A PIR
detector combined with a fresnel lens(can choose different size) are mounted on a compact size PCB togather with an analog IC, BISS0001, and limited components to form the module. High level output of variable width is provided.
PIR Sensor module Features and Electrical Specification
Compact size (25 x 35 mm)
Wide range of operation voltage 4-12V
Special output pilse width can be requested
TTL output can be directly connected to micro controller or logic device
High sensitivity
High RFI immunity
Power up delay 25sec
Delay time: 5seconds to 8 minutes(as customer requirement)
Operation Temperature: under -20 degree to 70 degress
Infrared sensor: dual element, low noise, high sensitivity
Light sensor: CdS photocell (can be add as customer requirement)
HW8002 is a pyroelectric sensor module which developed
for human body detection. A PIR detector combined with a
fresnel lens are mounted on a compact size PCB together
with an analog IC, HW8002 and limited components to
form the module. High level output of variable width is
provided.) .
2: Specification
Model |
HW-8002 |
|
operating voltage |
DC 4V~12V; |
|
Static Power |
<50 μA ; |
|
Distance |
0.5-27m |
|
range |
10-140 |
|
Operation
Temperature |
-20-+70 |
|
Dimension |
7*24*32mm |
Not including lens |
Electrical parameter
Product Type
|
PIR control module HW8002
|
Operating Voltage Range
|
DC Voltage 3V ~ 12V
|
Quiescent Current
|
<50uA
|
Level output
|
High 3.3 V / Low 0V (Can be customized)
|
Delay time
|
0.5-200S ( adjustable ) range can be made few tenths - tens of minutes
(Can be customized) |
Blocking time
|
2.5S ( default ) range can be few tenths - tens (Can be customized)
|
Induction angle
|
10-140 degree
|
Operating Temperature
|
-20 - +70 degrees
|
Distance
|
0.5-27m (Can be customized) |
We can custom the module as your request,welcome to ask me.OEM is highly welcomed.
