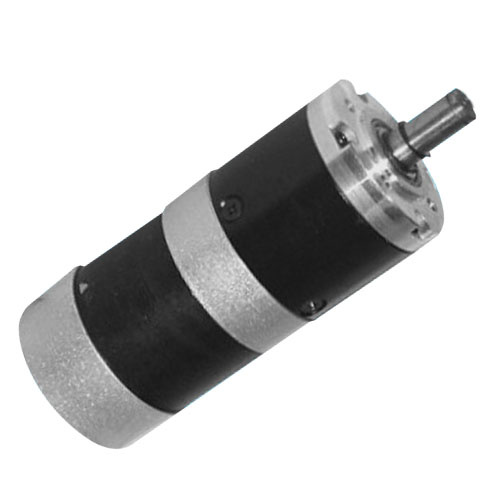

Planet Gear BLDC Motor

Planet Gear BLDC Motor
Price: US $ 60/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: 83ZYT125
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gearbox Size: φ22mm~φ130mm
Rated Torque: 0.01~120n.M
Application: Power Tools
Operating Speed: High Speed
Certification: CE
Brand: Longway

Product Description

Output Power: Form 0.02W to 100W
Diameter: Φ 12, Φ 16, Φ 20, Φ 22, Φ 24, Φ 25, Φ 28, Φ 36, Φ 40, Φ 45, Φ 56, Φ 60, Φ 73, Φ 83.
Certificate: CE

Typical applications: It can be used as driven compnets in many appliance. We can match planet gear and spur gear to all kinds of DC motor.

Model

   Rated Voltage (VDC)

No-load Speed (rpm)

No-load  Current   (A)



Rated Speed  (rpm)

       Rated  Torque       (N.m)

     Output Power    (W)



Rated Current

(A)

 Stall Torque   (N.m)



Stall Current

(A)

83ZYT125-2420

24

2000

0.80

1700

0.24

42

3.5

1.6

17

83ZYT125-2430

24

3000

0.90

2600

0.30

Ningbo Yinzhou Longway Technology Co., Ltd. is a professional motor, machinery and electronic products manufacturer in China. Since day one after its establishment, our company has spared no efforts in developing new products and optimizing them. A comprehensive and consistent quality system has been since long established, from design to production, form marketing to after sale service. Our company attaches great importance to employee training. It pays off when the quality of each and every one of our employees keeps improving. Now the motor products include PMDC motors, brushless motors, stepping motors, AC and DC gear motors, synchronous motors, brushless servo motors. Most of products are CE, UL approved. We can also complete OEM/ODM orders in accordance with clients' specific requirements, designs and samples.

The advanced technologies of design and manufacturing were adopted from Germany. We take pride in the CAD/cam mould tooling center and the testing center. We enjoy an excellent reputation in Europe, America, Australia, Middle East, and southeast Asia as well as in China.

"satisfactory products plus satisfactory services" makes our success happen. We sincerely hope to have and also thank for valuable supports and cooperation from all friends in the world.
