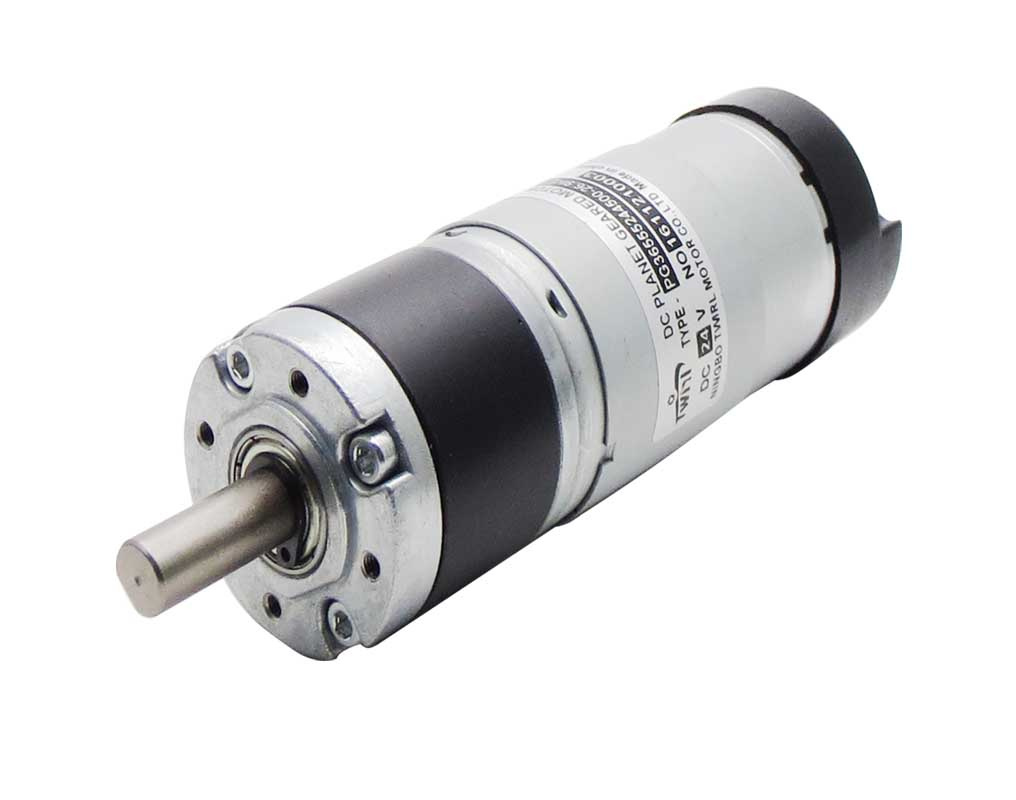

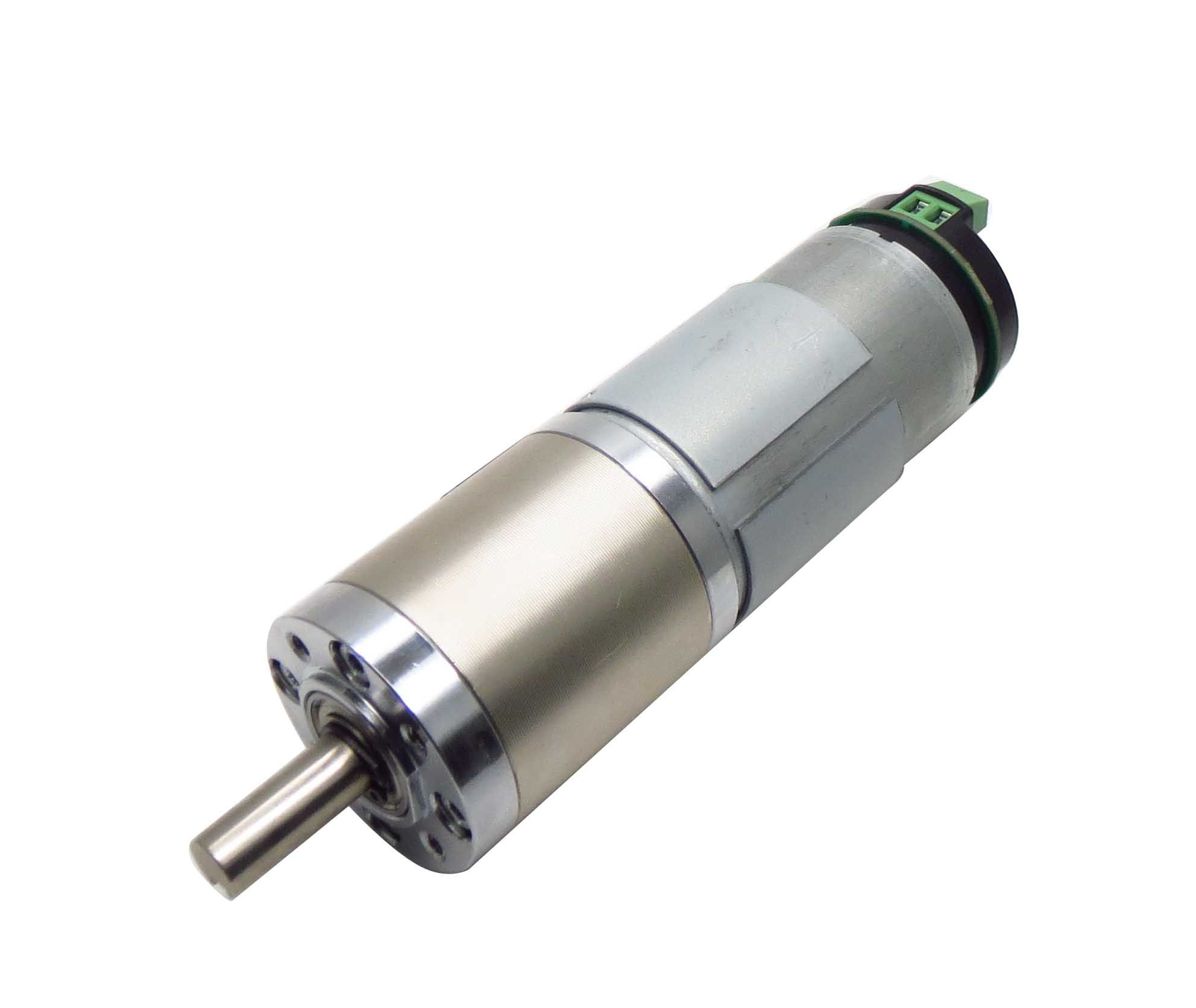

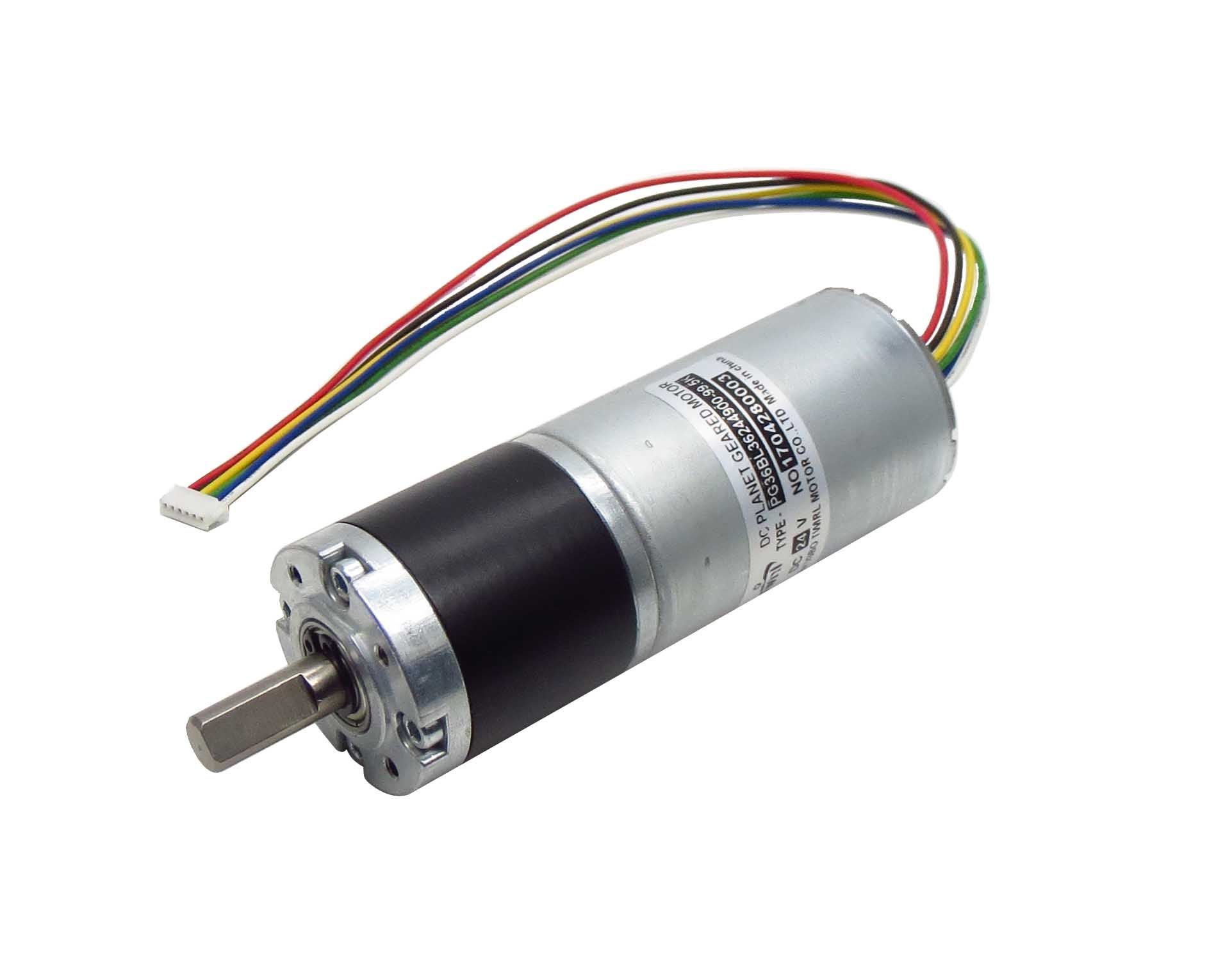

Planetary Gear Motor
| Price: |
US $ 6.58-7.18/Piece |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
SL-PG36M55 |
| Application: |
Power Tools |
| Operating Speed: |
Constant Speed |
| Excitation Mode: |
Shunt |
| Structure And Working Principle: |
Brush |
| Brand: |
Mada |
Product Description

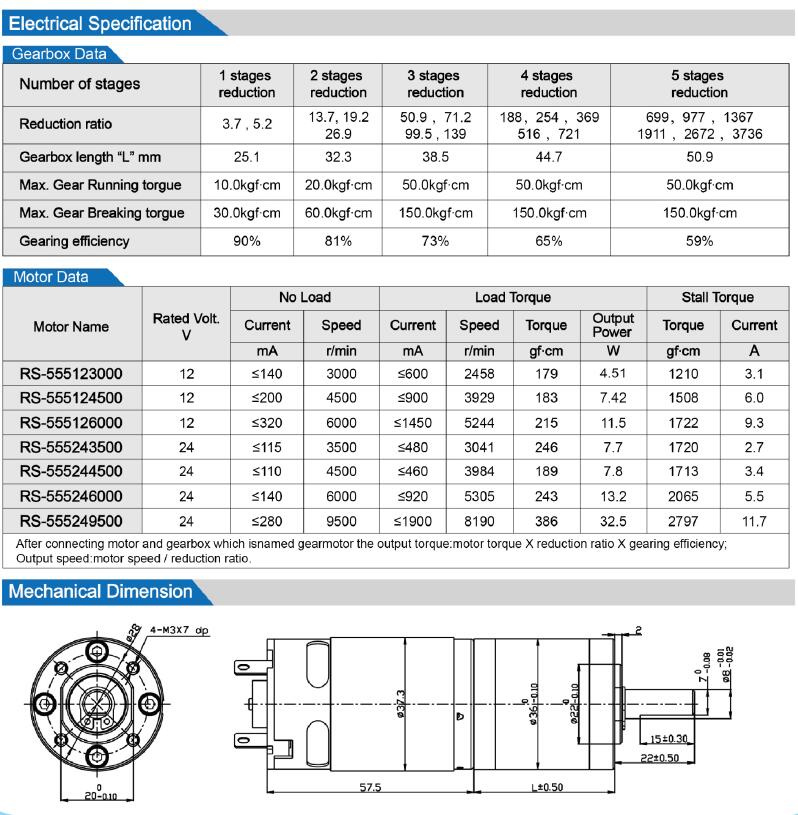

DC Planetary Gear Motor Specification:1. Voltage: 6V 9V 12V 24V2. Speed: 1-1600rpm3. Torque: 1-100kg. Cm rated torque4. Gearbox 36mm Dia X 26.4-52.4mm length5.Shaft: 8mm Dia X 22mm Length5. Motor's voltage, speed, torque, shaft can accept customizied requirment after evaluation.6. Packing Details: 280-350g/PCS(approx) 40PCS/CTN 16kg/carton7 The datasheet and price range only typical data for reference, Gear motor's price are usually decide byMotor's reduction ratio and torque. Please fell free to contact with me if youwant this motor Specificaton or
About SUNLITE MOTOR CompanyNingbo SUNLITE Motor Co. Ltd is a manufacturer and exporter of micro motors, Our Product range are:
DC Brush motor: 6-130mm diameter, 0.1-1500W output power. Brushless DC Motor: 28-110mm, 5-800W output power DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power DC Planeary Gear Motor: 10-82mm diameter, 0.1-200W output power Stepper Motor: NEMA 08 to NEMA 43, Can contact with gearox and lead screwAC Gear Motor: 42 to 104mm diameter, 6-200 output power Compare with other competitors, Our advantages are:
1) High Quality Guarantee: 11 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS certificates.2) Experience: Till Augest, 2017, We had export our goods to 95 different countries like US, Germany, UK, Japan, Brizal,Russia and so on. 3) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China. 4) Good Service: SUNLITE MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don't need way about can't not find the person when have agent things. - 5 MOQ: Small Orders Accepted
6) On Time Delivery: 7-15 working days lead time for normal motors, Custmoized motor lead time are also less than 20 working days.
7) Customized service: Our experienced R&D team can support customized motor if necessary.
Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.

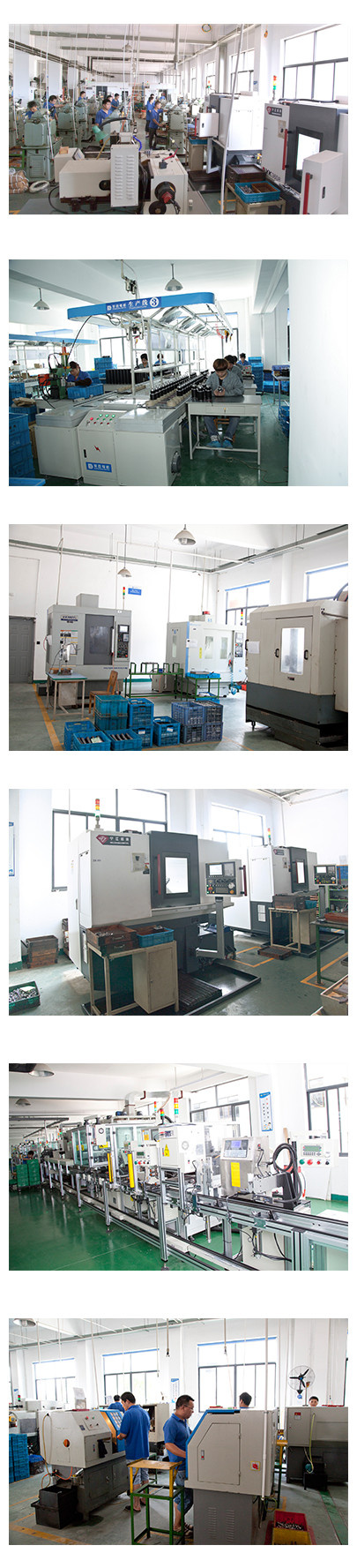

work line of gear motor
SUNNYLUX ELECTRIC Co., Ltd, is your reliable partner in China for the professional innovation lightings, especially LED light products. We pursue a smart and eco saver life for the person who uses our products.
In SUNNYLUX, 95% products are exported. Thanks to the cooperation with wholesalers, retailer and our excellent teams. Our company has a constant annual growth. SUNLITE provides high quality products at reasonable prices, and we welcome OEM & ODM projects. We pay attention to the quality, customer request and target market's certificates. The main customers of our company include Europe, Southeast Asia, Oceania, Middle East, north American and south American.
The Products
Our main products include two series: LED LIGHT FITTING (LED waterproof lights, LED Ceiling lights, LED flood lights, LED Panel lights, LED down lights, LED highbay lights, LED bulkhead lights, LED emergency lights etc. ) LED LIGHT SOURCE (LED TUBE, LED BULB, LED SPOT light, LED DOME Light LED PL light, LED R7S light etc. ). All of our lighting products are with certificate, and the quality is stably.
The Technology
One of the foundations is high quality of the products. Our specialists from the Development Department are constantly working on increasing quality standards. We offer the technical solution before and after sale. To be a qualified supplier for the high-level market, most of SUNLITE products have CE, ETL, EMC, GS, DLC, UL, R&TTE approval. We are RoHS compliant and pass ISO9001.
The vision
We feel very confident in our products and believe that they can meet with different requirements in worldwide markets. We would like to establish mutual beneficial business relationships with clients all over the world and develop lighting markets to get win-win benefits together.
