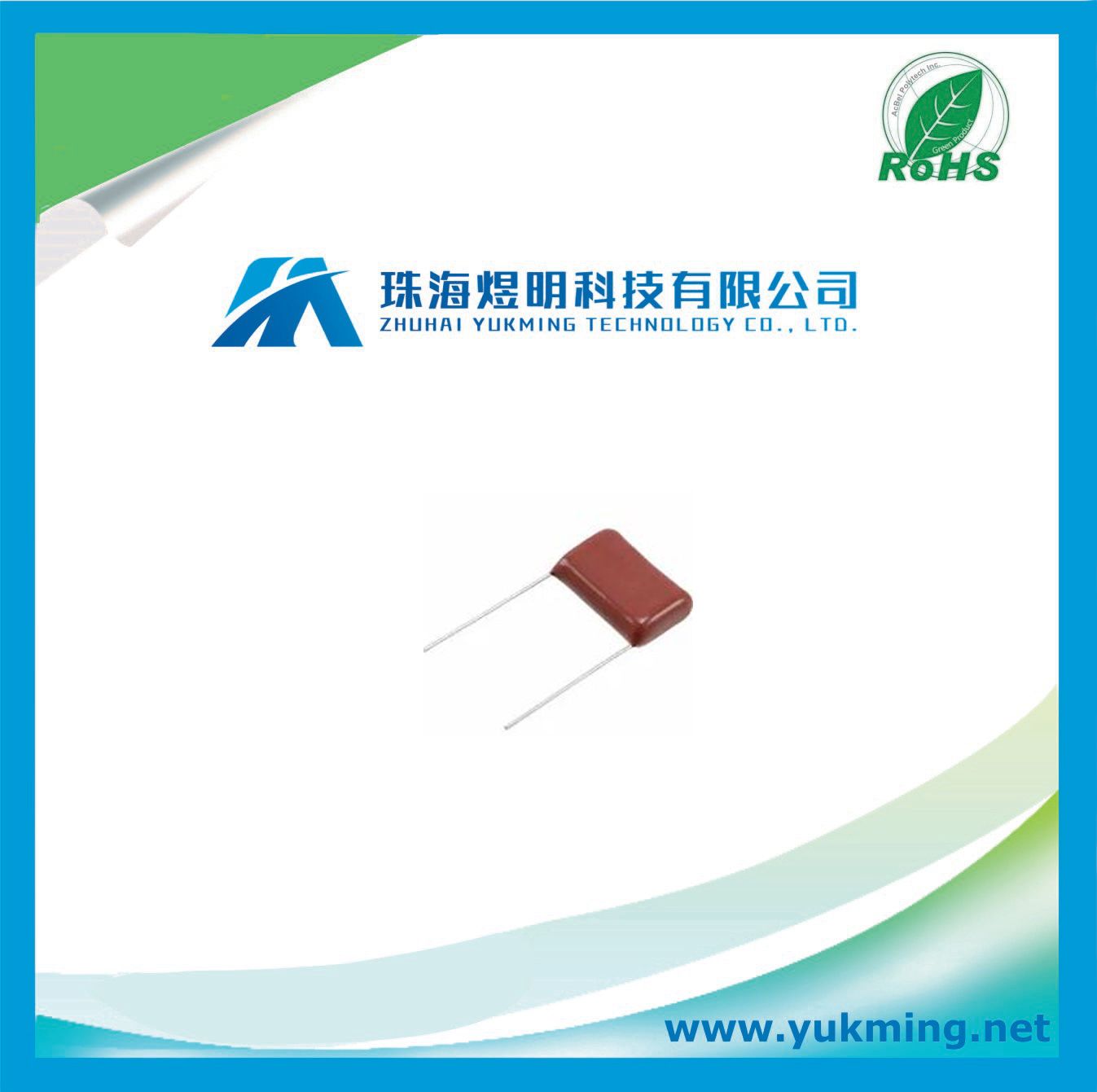

Plastic Polypropylene Film Capacitor Ecqe6474kf

Prod Model:	ECQE6474KF
Capacitance Value:	0.47UF
Voltage Rating - DC:	630
Tolerance:	10%
Operating Temperature Range:	-40 to 105 Deg C
Lead Diameter (mm):	0.8
Application:	General Purpose
Package Type:	Through Hole
Type:	Film Capacitor
Capacitance:	0.47UF
Structure:	Radial
Usage:	General Purpose

Product Description

                           Hello, Thank you for your visiting!

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can.


Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require






Categories	Capacitors
	Film Capacitors
Manufacturer	Panasonic Electronic Components
Series	ECQ-E(F)
Packaging	Bulk
Part Status	Active
Capacitance	0.47uF
Tolerance	+/-10%
Voltage Rating - DC	630V
Dielectric Material	Polyester, Metallized
Operating Temperature	-40 degree C ~ 105 degree C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.024" L x 0.366" W (26.00mm x 9.30mm)
Height - Seated (Max)	0.768" (19.50mm)
Termination	PC Pins
Lead Spacing	0.886" (22.50mm)
Applications	General Purpose


MANUFACTURER
Panasonic

PRODUCT CATEGORY
Capacitor Film

DESCRIPTION
Cap Film 0.47uF 630V PET 10% (26 X 9.3 X 18.5mm) Radial 22.5mm 105°C Bulk

Ideal for smoothing voltages or improving signals, Panasonic's ECQ-E6474KF plastic film capacitor is a low-cost solution. It can withstand a voltage of 630 VDC. This polypropylene film capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.8 mm and a pitch of 22.5 mm. Its capacitance value is 0.47uF. This product is 26(Max) mm long, 18.5(Max) mm tall and 9.3(Max) mm deep. The ECQ-E6474KF polypropylene film capacitor has a radial termination style. It has a tolerance of 10%.

Specifications
EU RoHS Compliant
Capacitance Value 0.47uF
Voltage 630VDC
Tolerance 10%
Dielectric PET
Maximum Operating Temperature (°C) 105
Mounting Through Hole
Termination Style Radial
Minimum Operating Temperature (°C) -40
Size (mm) 26 X 9.3 X 18.5
Operating Temperature (°C) -40 to 105
Lead Diameter (mm) 0.8
Packaging Bulk
Product Length (mm) 26(Max)
Product Depth (mm) 9.3(Max)
Product Height (mm) 18.5(Max)
Special Features Excellent Electrical Characteristics|Flame Retardant Epoxy Resin Coating|Non Inductive Construction
Seated Plane Height (mm) 19.5(Max)
Lead Pitch (mm) 22.5
Lead Length (mm) 20
Wire Form Straight
