Plastic Rubber P + R Switch
| Price: |
US $ 0.5/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
| Prod Model: |
SK-PR3 |
| Color: |
Available |
| Special Materials: |
Silicone+Plastic |
| Keypad Surface Process: |
UV Coating |
| Lightback: |
Yes |
| Standard: |
Standard |
| Size: |
120 Type |
| Application: |
Warehouse |
| Type: |
Microwave Sensor Switch |
| Certification: |
CE |
| Principle: |
Capacitive |
| Wires: |
Two-Wires |
Product Description

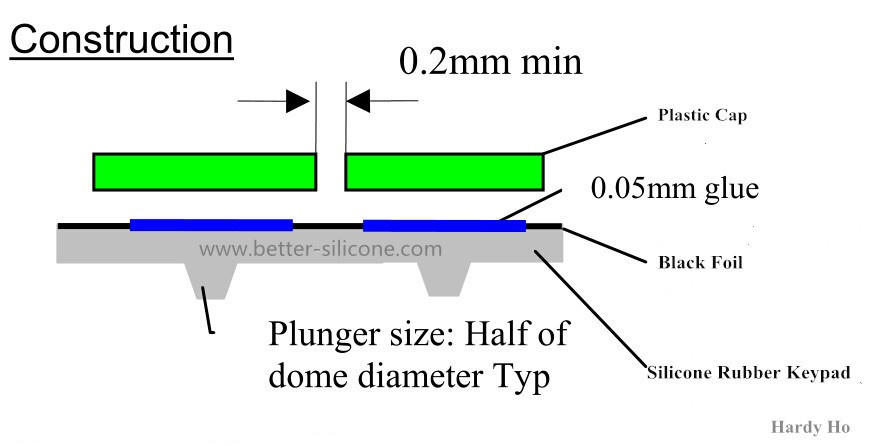

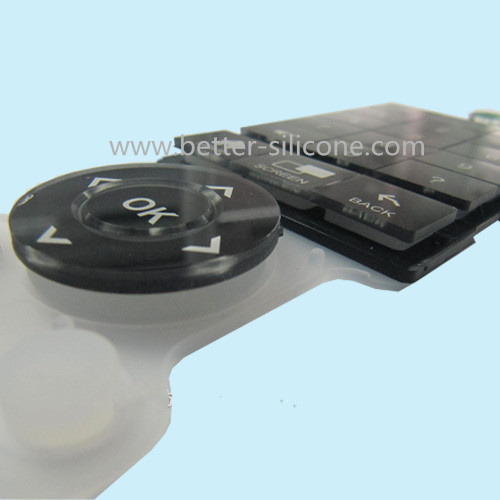

P+R Keypad (Plastic + Rubber):This kind keypads combine the benefits of plastic keycap with the elastomeric and sealing feature of silicone rubber keypads by glue. The interface support many kinds of colors, textures, graphic pattern, which can enhance the aesthetic and backlight effects of products.
Basic Information1. Production Process:
1.) Keypads Forming and Plastic Keycap Injection Forming.
2.) Silk Screen Printing, Spray Coating, Laser Etching, Back-lighted.
3.) Trimming Die for Plastic Keycap, and Silicone Keypad Deburring.
4.) Assembly keycap and Keypads by Glue. 5.) Baking Process for combination.2. Plastic Keycap:

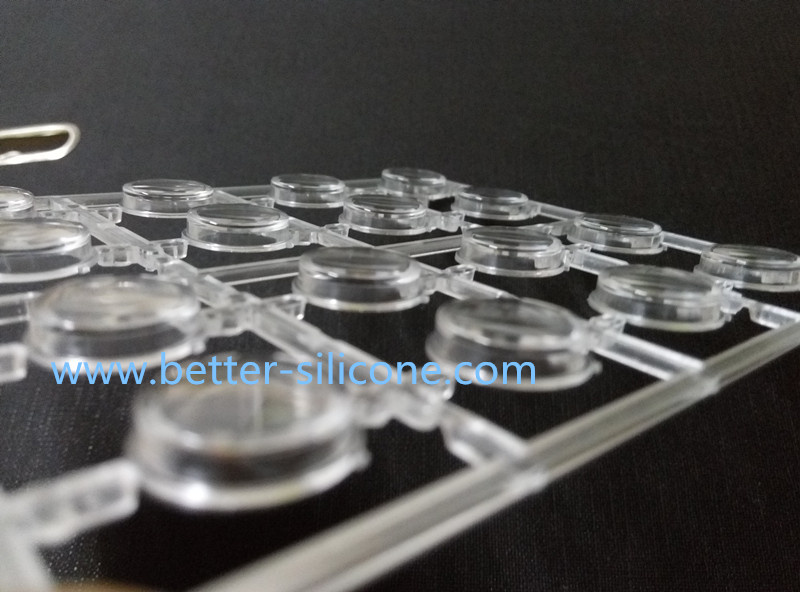

1.) Materials: PC, PMMA (acrylic), ABS, ABS+PC.
2.) Usage: Light Guide, Textures, Metallic Color Effects etc.
3.) Keypad Height >0.8mm.
4.) Sharp Corner Radius 0.2mm
5.) Graphics with or without backlighting(Back plastic keypad can choose silk scre en printing). 6.)Abrasion Resistance Coating and UV Coating.3. Appliance: Cell Phone, POS terminal, Calculator, Music Device etc.
1. Advantages 1.) Good aesthetic and backlight effects.
2.) Good Touch Feeling, Anti-dust.
3.) Cost effective to large quantities.
3.) Long lifespan keypad 2. Disadvantage.1.) High injection mold-making cost: If choose PC/PMMA materials and up to light guide effects, that need choose good mold core steels.2.) High Keycap Demands: No flowing mark, no texturing and up to light guide effects. That need good injection machines and injection standard parts.
3.) Unsuitable to low quantities. Our Company Advantages:1. Competitive Price: Origin Manufacturer.2. Quality Advantage1. ) Mold tools making since 1998.2.) Dust-free production environment: 1 LSR injection Machines, 3 Sets Rubber
Compressive Machines, and Assembly Line in 100,000 rating Dust-free Plants.3.) Fully production equipment and TestorFive Plants: Mold-Making, Silicone Rubber Compressive, Plastic Injection, LSR Injection, and Assembly Plants.
Mold-Making Equipment: CNC, Mirror EDM, EDM, Slow-speed Wire Cut M/C and other auxiliary equipment etc.
Production Equipment: 15 Sets Rubber Compressive Machines, 8 Sets Haitian Plastic Injection Machines, 2 Sets LSR Injection Machines.
Test Equipment: 3D Projectors, Sealing Testor, Elasticity Measurement, Durometer etc.4. Production and Test strictly according to ISO9001.
5. Experienced staff:6. Fast-reaction Organization: Such as, One morning, Our Customer tell two precision rubber parts for smart cell phone need to revived, and ask we to send revived rubber samples to them at that day. At last, we made it at that day.

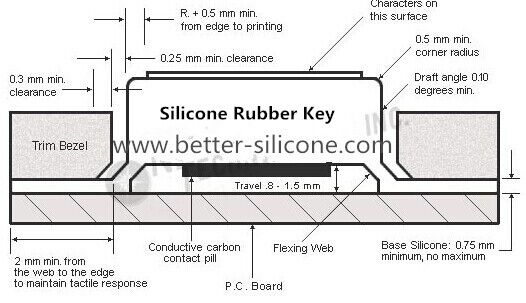

Quickly Quotation Requarirements1. Show a top and side view2. Dimension as shown3. Include number of legend and rubber colors4. With or without carbon pills5. Quantities to be quotedThese are the primary elements for a quotation. Other details such as travel, force, durometer and tactile response can be determined at the time of order.Specialty features such as protective coatings, laser etching, light pipes, etc. should be included. | Silicone Keypad Surface Process | UV Coating, Laser Etching, Silly Printing, Spray Coating etc. |
| Plastic Keycap Surface Process | UV Coating, Metallic Plated, Light Guide etc |
| Combination | Glue |
Xiamen Better Silicone Import and Export Co., Ltd, which specialized in making Rubber Compression / plastic injection /Liquid Silicone Rubber Injection mold tool and producing silicone rubber compression parts, plastic injection parts, Liquid silicone rubber injection parts: Rubber Sheet, Gasket, O-RING, Seal, Silicone Rubber Valve, Silicone Rubber Keyboard, Rubber Nozzle, Rubber Grommet, Silicone Bushing Sleeves, Rubber Damper, Rubber Bumper, Rubber Bellows, Silicone / Liquid Silicone Mask, Connectors etc.
Xiamen Better Silicone Import and Export Co., Ltd have five production Plant:
1. Mold-Making Plants: Rubber Compression Mold, Plastic Injection Mold, Liquid Silicone Rubber Injection Mold
2. Rubber (Silicone) Compression Plant
3. Plastic Injection Plant
4. Liquid Silicone Injection Plant (Clear Room)
5. Assembly Plants (Clear Room)
As a factory management cooperation, we focus on improving Mold-making technology, each production plant efficiency, and take full advantage to enjoy customer's demands and meet marketing demand.
Our Advantage:
Own Precision Mold-making Technology (since 1998 years)
Experienced Technical Persons and Workers
One-stop Service: Mold Tool Making, Silicone Rubber Compression Production, Plastic Injection Production, Liquid Silicone Injection Production and Assembly.
Experienced Industry Knowledge, Leading industry: Electronic Industry (like Precision Silicone Rubber Smart Cellphone Parts, Rubber Keypad, 3M Adhesive Tape+Silicone Rubber etc), Medical Industry (like Silicone/Liquid silicone rubber mask/valve/gasket etc), Sanitary Industry (like Silicone Shower Head Nozzles).
Well-established and Down-to-earth Company: Improve production technology and also use qualified formal materials
