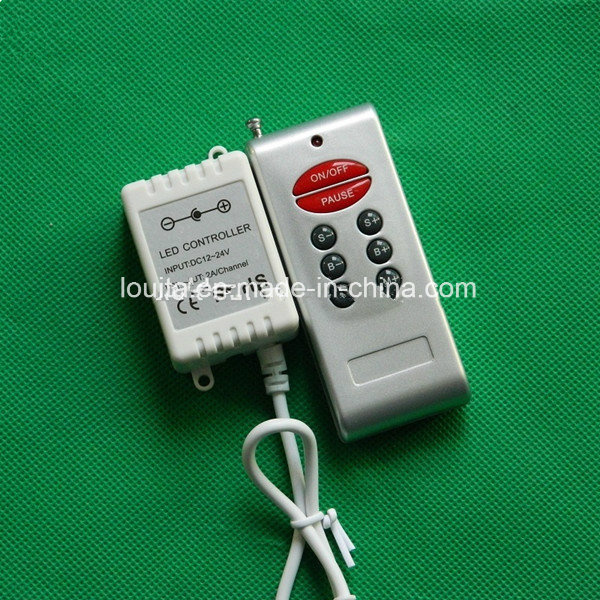

Plastic Shell 12V LED RGB Controller with RF 8 Key

Name: Plastic Shell 12V LED RGB Controller with RF 8 Key
Brand: all-electronics-online.com
SKU: 806437805
Availability: InStock
Rating: 4.3 (59 reviews)

Price:	US $ 4-4.1/Piece
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYD-RF8S
Static Power Consumption:	<1W
Connection Mode:	Common Anode
Output:	3 CMOS Open Drain Output
Output Current:	<2A(Each Circuit)
Net Weight:	48g
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Battery Type:	AAA Battery
Voltage:	DC5V, 12V~24voptional
Material:	Aluminum

Product Description

Basic Info

Place of origin:	Shenzhen,China
output:	3 CMOS Open drain Output
output current:	<2A(each circuit)
Connection mode:	Common anode
Static power consumption :	<1w
Output power:	5V:<30W, 12V:<72W, 24V:<144W
Net weight:	48g
Brand name:	louita

Product Description

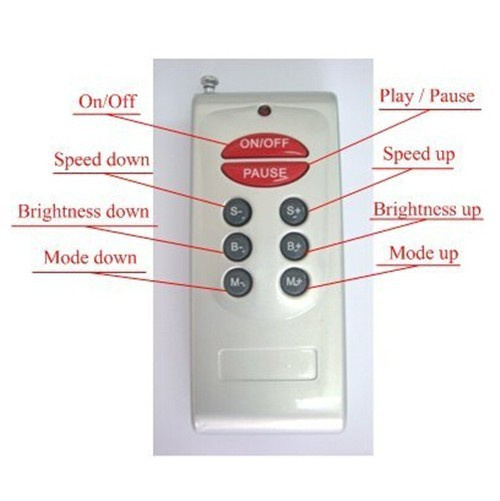

This RF 8 Keys RGB controller is mainly used to controlled all kinds of constant voltage led lights,such as:LED source, LED strips,led wall washer,wall Glass curtain lights,etc.It integrated with easy connection,simple manipulation and power off memory function.User can choose the 7 color jump, fade,fash mode ,and the lights brightness are adjustable according to the user actual requirement.

Technical Parameters:
Working temperature:-20-60ºC
Input voltage:DC5V, 12V~24V optional
Output:3 circuit
Connection mode:Common anode
Controller size:L61×W35×H22mm
Net weight:48g
Gross weight:60g
Static power consumption:<1W
Output current:<2A/ch
Output power: 5V<30W, 12V<72W, 24V<144W

Standard color changes as follows:

No	Patterns	Remarks	No	Patterns	Remarks
1	Static red	Brightness is adjustable,Speed is unadjustable.	12	Seven-color gradual changing	Speed and Brightness are adjustable
2	Static green		13	Red stroboflash
3	Static blue		14	Green stroboflash
4	Static yellow		15	Blue stroboflash
5	Static purple		16	Yellow stroboflash
6	Static cyan		17	Purple stroboflash
7	Static white		18	Cyan stroboflash
8	Three-color jumpy changing	Speed and brightness are adjustable	19	White stroboflash	Speed is adjustable, brightness is unadjustable
9	Seven-color jumpy changing	Speed and brightness are adjustable	20	R/B cross-fade
10	Three-color superposition	Speed is adjustable,brightness is unadjustable	21	B/G cross-fade
11	Three-color gradual changing	Speed is adjustable,brightness is unadjustable	22	G/R cross-fade
