| Prod Model: |
LYD-QC01 |
| Connection Mode: |
Common Anode |
| Static Power Consumption: |
<1W |
| RF Frequency: |
433.9m |
| Output: |
3 CMOS Open Drain Output |
| Application: |
Audio / Video Players |
| Signal Transmission: |
RF Remote Control |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Material: |
Plastic |
| Battery Type: |
AAA Battery |
| Voltage: |
DC12~24V |
Product Description
Basic Info| place of origin: | Shenzhen,China |
| Output: | 3 CMOS Open drain Output |
| Output Current: | <4A/CH |
| Connection mode: | Common anode |
| Static power consumption: | <1w |
| Output Power: | 12V:<144W, 24V:<288W |
| RF frequency: | 433.9M |
| Supply Voltage: | DC12~24V |
Product DescriptionThis FR touch remote RGB controller adopted the advanced PWM touch technology, Mainly used to control all kinds of common anode constant volage led products, such as LED source, flexible strip, wall washer, glass curtain wall light and so on. This controller is with indicating light and power off memory function. Easy connection and simple to used is the representative advantages of this controller.User can choose different changing mode, adjust the speed and brightness,turn on/off by the RF remote control according to their preference
Technical ParametersWorking temperature:-20~60ºC
Supply voltage:DC12V~24V
Output:3 Channel
Connection mode:Common anode
Controller size:L85×W45×H23mm
Net weight:88g
Static power consumption:<1W
Output current:<4A/CH
Output power:12V:<144W;24V:<288W
Direction for useFunction introduction:
1,Use the RF remote control, no need to make the remote direct to the controller,and the RF remote can controlled it across obstacles.
2,In the open area remote control distance is over 30 meters;
3,Each controller and the remote are sticked with an unique ID on it,each controller can be study two remote control's ID,this means that one controlled can be controlled by two remote at the same time.Besides,this controller can make it to be controlled by the unique remote , or make one remote to controlled many controller as well.
4,the controller is full touch remote with color right on it , user can change the color simply by touch the color ring.
Operation method:1.Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2.Just the ON key is valid in OFF condition, to turn on the controller by press the ON key for the first time.the controller will be in the same mode as last time it save.

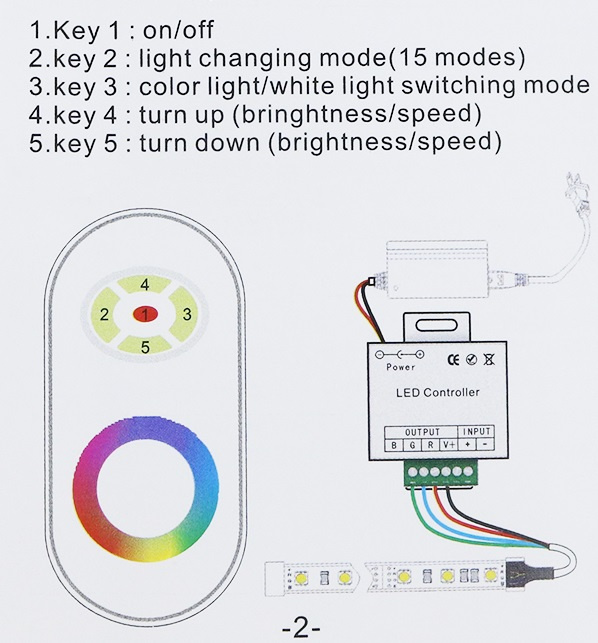

3.In on condition,press the Key 2 can be realize the 15 kinds of changing mode as follows:
| NO. | Mode | remark |
| 1 | Six color fade | Key 4 and key 5 can be adjust the changing speed of the dynamic mode |
| 2 | three color jump |
| 3 | Seven color fade |
| 4 | Three color fade |
| 5 | Seven color fade |
| 6 | Red strobe-flash |
| 7 | blue strobe-flash |
| 8 | Purple strobe-flash |
| 9 | Green strobe-flash |
| 10 | Yellow strobe-flash |
| 11 | Cyan strobe-flash |
| 12 | White strobe-flash |
| 13 | Red-blue cross jump |
| 14 | Blue-gree cross jump |
| 15 | Red-gree cross jump |
4.Press Key 3 once to activate white light mode.when switch to the static color,can be touch the color ring to realize the color you want.
5.In static color mode,can be adjust the light brightness by press Key 4 or key 5.
6.In dynamic mode, can be press the key 4 or key 5 to adjust the changing speed.
7.In dynamic mode, can be press the key 4 or key 5 to adjust the changing speed.
8.Matching code:
Press key1 for 5 times within 10 seconds when power on again, the light blink 5 times if matching is successful.
Packaging&Shipping:
