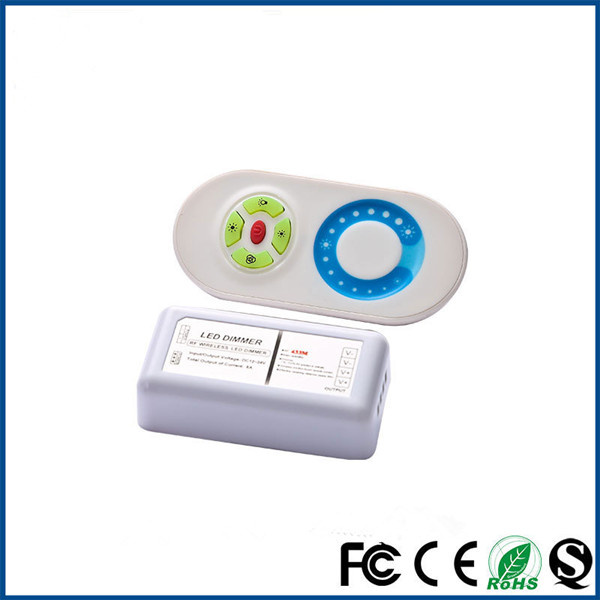

Plastic Shell RF Touch 5 Keys Touch Sensor LED Dimmer

Name: Plastic Shell RF Touch 5 Keys Touch Sensor LED Dimmer
Brand: all-electronics-online.com
SKU: 805996645
Availability: InStock
Rating: 4.8 (110 reviews)

Price:	US $ 6.4-6.5/Piece
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYD-DT01
Static Power Consumption:	<1W
Connection Mode:	Common Anode
Output Current:	<4A/CH
RF Frequency:	433.9m
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Material:	Plastic
Battery Type:	Button Battery
Voltage:	DC12V~24V

Product Description

Basic Info

place of origin:	Shenzhen,China
output:	2 CMOS Open drain Output
output current:	<4A/CH
Static power consumption:	<1w
Output Power:	12V:<96W, 24V:<192W
RF frequency:	433.9M
Connection mode:	Common anode
External dimension:	L85W45H23mm

Product Description
This RF touch Single color led dimmer adopt the RF wireless remote control, can adjust brightness infinitely
to change the lights brightness according to the customer's preference.

Technical Parameters:
Working temperature: -20-55°C
Input voltage: DC12-24V
Output: 2 Channel (2 channel signal are the same)
Connection mode: Common anode

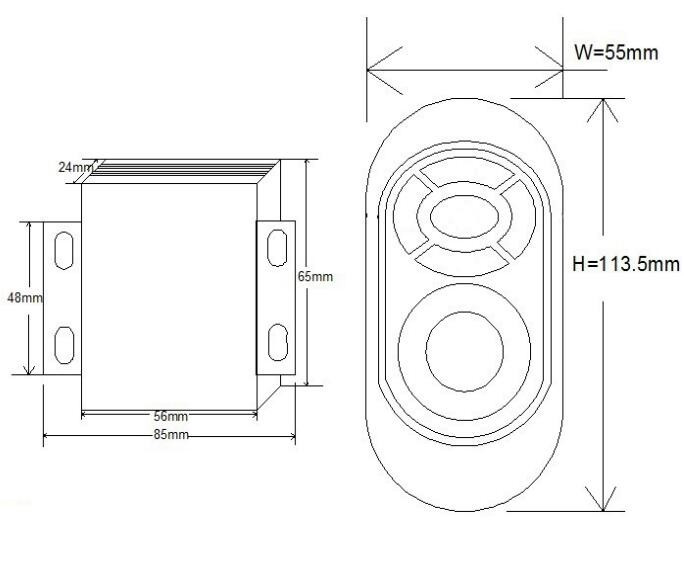

Dimmer size: L85×W45×H23mm
Remote size: L144×W55×H9m
Net weight: 88g
Static power consumption: <1W
Output current: <4A/CH
Output power: 12V:<96W, 24V:<192W

Direction for use:
Function introduction:
1. Use the RF remote control, no need to make the remote direct to the controller
and the RF remote can controlled it across obstacles;
2. In the open area remote control distance is over 30 meters;
3. Each controller and the remote are stick with an unique ID on it,each controller can be study two remote control's ID.
This means one controller can be controlled by two remote at the same time. Besides, this controller can make it
to be controlled by the unique remote, or make one remote to controlled many controller as well.
(remarks:need to make to order)

Operation method:
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2. Adopt wireless 433.9mhz RF Touch 5 keys remote control
