Plated Edges PCB Circuit Board 1.6mm Thick 0.062" Volume Production
| Price: |
US $ 1.2/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-638-V6.38 |
| Mininum Trace (Mil): |
16 Mil |
| Minimum Gap(Mil): |
14.7 Mil |
| RoHS Required: |
Yes |
| Final Foil External: |
8 Oz |
| Final Height Of PCB: |
1.2mm |
| Surface Finish: |
OSP |
| Solder Mask Color: |
No Required |
| Colour Of Component Legend: |
No Required |
| Warpage: |
0.14% |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Material: |
Aluminum |
| Dielectric: |
Aluminum |
Product Description
Company Profile
Bicheng Enterprise Limited offers single sided / double sided and multilayer circuit boards. We
have been serving PCB electronics industry in Shenzhen, China since 2003.
Our advantages
* Your satisfied source to buy printed circuit boards (PCBs)
* All PCBs are 100% tested (flying probe or fixture test)
* Free panelizing
* Special price for partners
* On time delivery
* No minimum order quantity
* Worldwide shipping, door to door service
Our products
* PCB Prototypes and PCB Production
* Rigid PCB Fabrication
* Flexible PCB (FPC)
* PCB up to 32 layers
* RoHS complaint, Lead free PCBs
* Material: FR-4, High Tg (Tg170, Tg180), RO4350B, RO4003C, Polyimide
* Controlled Impedance
* Surface finish: HASL, HASL lead free, Immersion tin, Immersion silver, Immersion gold, gold
finger
* Blind vias
* 3 days to 4 weeks lead time

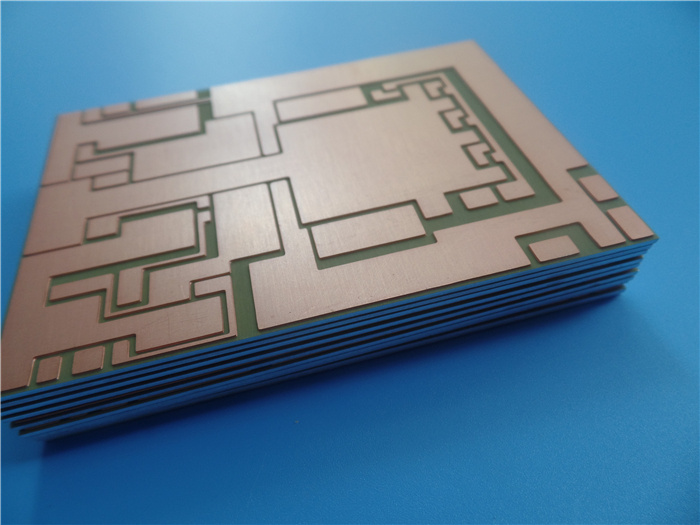

Aluminum PCB

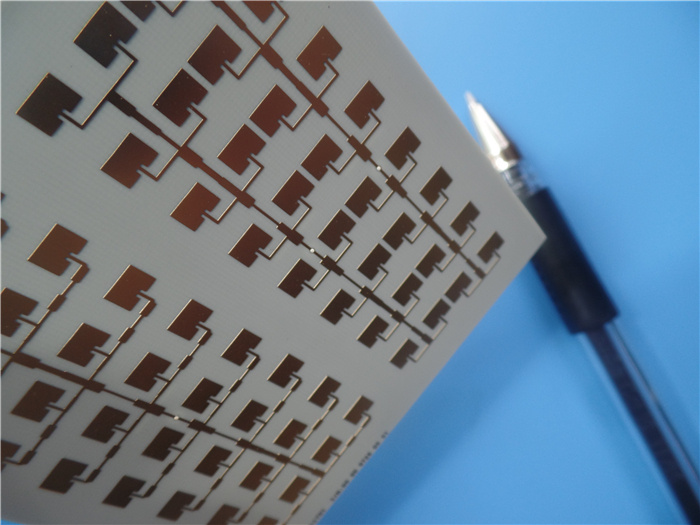

High Frequency PCB

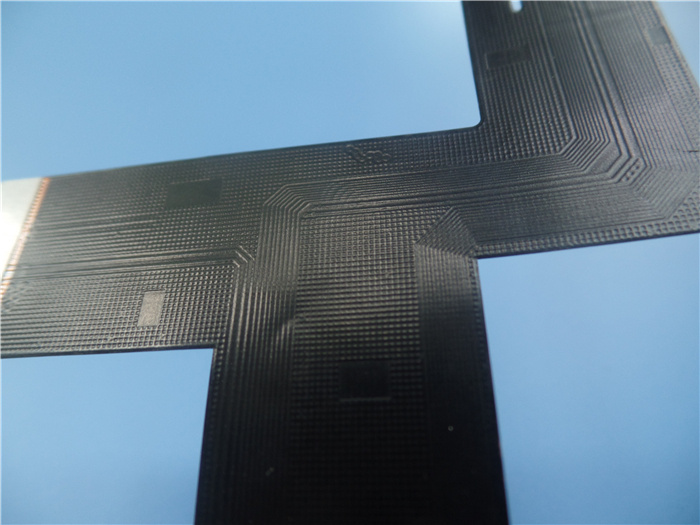

Flex PCB
PCB Circuit Board
Technology InformationPerformance parameter of MCPCB substrate (The parameter will continue to be improved
without notice)| Test item | Unit | Aluminum base | Copper base | Iron base | Test
method |
| Actual vale | Actual vale | Actual vale |
| Peel strength | N/mm | 2.2 | 2 | 2.3 | 4010 of
GJB1651 |
| Surface resistance | MΩ | 1 x (10^6) | 1 x (10^6) | 1 x (10^6) | 5020 of
GJB1651 |
| Volume resistance | MΩ.m | 3.2 x (10^7) | 3.2 x (10^7) | 3.2 x (10^7) | 5020 of
GJB1651 |
| Breakdown voltage | KV/min | ≥2.0
(Breakdown
voltage is
adjustable
according to
customers'
demend) | ≥1.0
(Breakdown
voltage is
adjustable
according
to customers'
demend) | ≥1.0
(Breakdown
voltage is
adjustable
according to
customers'
demend) | 5040 of
GJB1651 |
| Solder dipping | ºC/min | 260ºC,
3 minutes,
no bubble
and
delamination | 260ºC,
3 minutes,
no bubble
and
delamination | 260ºC,
3 minutes,
no bubble
and
delamination | 4010 of
GJB1651 |
| Flammability | - | FV-0 | FV-0 | FV-0 | 17 of GB
/T4722 |
| Thermal resistance | ºC/W | 0.25-1.2 | 0.25-1.2 | 0.25-1.2 | TO-220 |
| Dielectric constant | - | 3 | 3 | 3 | (40ºC,
93%,96h) |
Thermal conductivity
of Dielectric | W/M.K | 0.8-8 | 0.8-350 | 0.8-3 | ASTM
5470-D |
| Working temperature | ºC | ≤120 | ≤120 | ≤120 | (40ºC,
93%,1Y) |
Thermal conductivity
of metal base | W/M.K | ≥200 | ≥350 | ≥45 | ASTM |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
