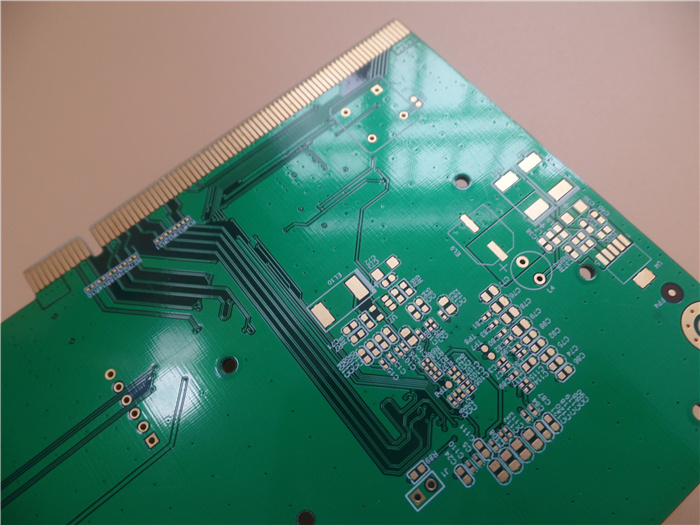

Plated Milling Cutouts PCB Circuit Board PCB 2.0mm Thick 0.079"
| Price: |
US $ 1.06/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
BIC-640-V6.40 |
| Final Foil External: |
1.0 Oz |
| Final Height Of PCB: |
1.6mm |
| Surface Finish: |
OSP |
| Solder Mask Color: |
Green |
| Colour Of Component Legend: |
None |
| Minimum Trace And Space: |
6 Mil/9 Mil |
| Minimum / Maximum Holes: |
0.9/2.3mm |
| Board Plating: |
0.0029" |
| Via: |
Via Open |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
PTFE Er= 2.55 |
Product Description
Company Profile
Established in Shenzhen in 2003, Bicheng Enterprise Limited is an experienced PCB supplier.
We are widely-recognized and have a strong network in the PCB industry. As an ISO 9001-2008
-, ISO 14001-2004-, ISO/TS 16949:2009- and UL-compliant, we offer different types of PCB from
fiberglass, high frequency, metal core and ceramic. Our 16,000-square-meter factory can produce
30,000 square meters with 8,000 types of PCB per month.
Various PCBs are Available
Our extensive product line includes double-sided PCBs, multi-layer PCBs (up to 32 layers),
FR-4 PCBs (Tg130 - Tg170), high frequency PCBs (RO4350B, RO4003C), aluminum PCBs
(1W/MK, 2W/MK, 3W/MK), flexible PCBs and HDI PCB boards.
Having Multiple PCB Technology to Meet the Market Demands

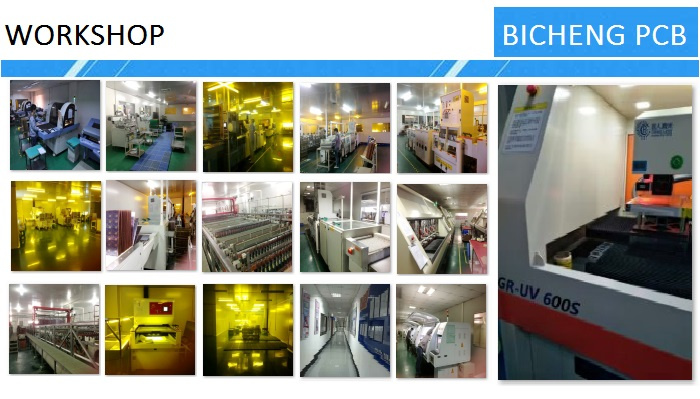

Our plants use state-of-the-art equipment during our production and testing phase in order
to ensure quality and to meet the market demands. These include heavy copper testers,
impedance control testers, automatic target drill machines, PCB cleaning machines and
more.
Offering New Customer Promotion
For new customers, we offer SMT stencil foil, PCB panelization and prototype testing free of
charge.
Our other advantages include:- Our engineering design prevents problems from occurring during pre-production
- We can meet your PCB needs from prototype to mass volume production
- Eligible products rate of first production: >95%
- Delivery on time: >98%, door to door shipment service
- Customer complaint rate: <1%
Our advantages help you maximize your profit by saving time and cost. Contact us now.

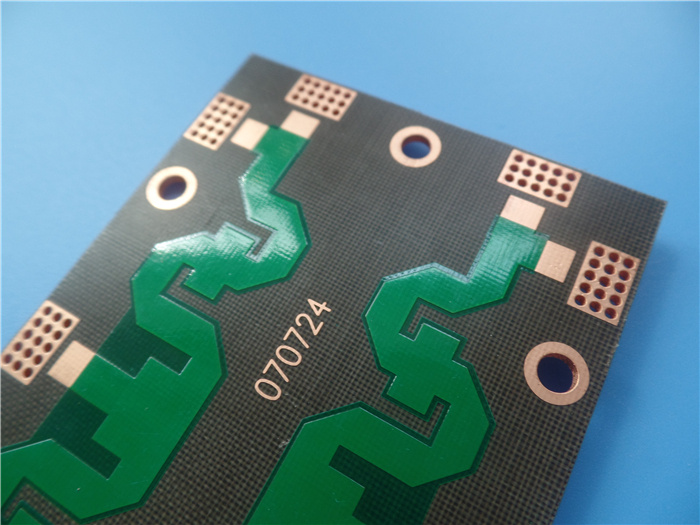

High Frequency PCB

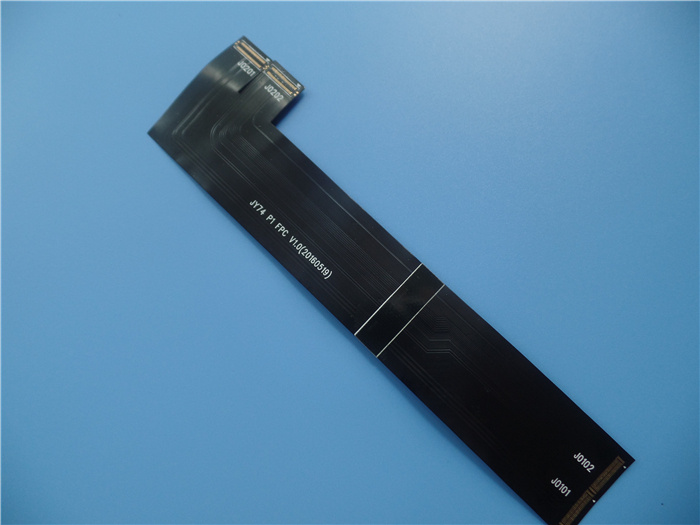

Flexible Printed Circuit

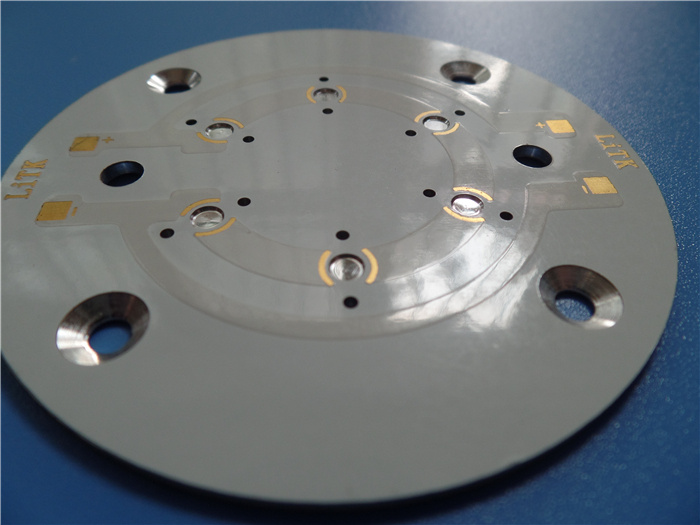

Metal Core PCB
PCB Board
Technology InformationPrinted Circuit Board Capability| Parameter | Value |
| Layer Counts | 1-32 |
| Substrate Material | FR-4(including High Tg 170, High CTI>600V);
Aluminum based; RO4350B, RO4003C;
Polyimide, 94HB and FR-1 (upon request) |
| Maximum Size | Flying test: 900*600mm,
Fixture test 460*380mm,
No test 1100*600mm |
| Board Outline Tolerance | ±0.0059" (0.15mm) |
| PCB Thickness | 0.0157" - 0.3937" (0.40mm--10.00mm) |
| Thickness Tolerance(T≥0.8mm) | ±8% |
| Thickness Tolerance(t<0.8mm) | ±10% |
| Insulation Layer Thickness | 0.00295" - 0.1969" (0.075mm--5.00mm) |
| Minimum Track | 0.003" (0.075mm) |
| Minimum Space | 0.003" (0.075mm) |
| Outer Copper Thickness | 35µm--420µm (1oz-12oz) |
| Inner Copper Thickness | 17µm--420µm (0.5oz - 12oz) |
| Drill Hole(Mechanical) | 0.0059" - 0.25" (0.15mm--6.35mm) |
| Finished Hole(Mechanical) | 0.0039"-0.248" (0.10mm--6.30mm) |
| DiameterTolerance(Mechanical) | 0.00295" (0.075mm) |
| Registration (Mechanical) | 0.00197" (0.05mm) |
| Aspect Ratio | 12:1 |
| Solder Mask Type | LPI |
| Min Soldermask Bridge | 0.00315" (0.08mm) |
| Min Soldermask Clearance | 0.00197" (0.05mm) |
| Plug via Diameter | 0.0098" - 0.0236" (0.25mm--0.60mm) |
| Impedance Control Tolerance | ±10% |
| Surface Finish | HASL,HASL LF,ENIG,Imm Tin,
Imm Ag, OSP, Gold Finger |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
