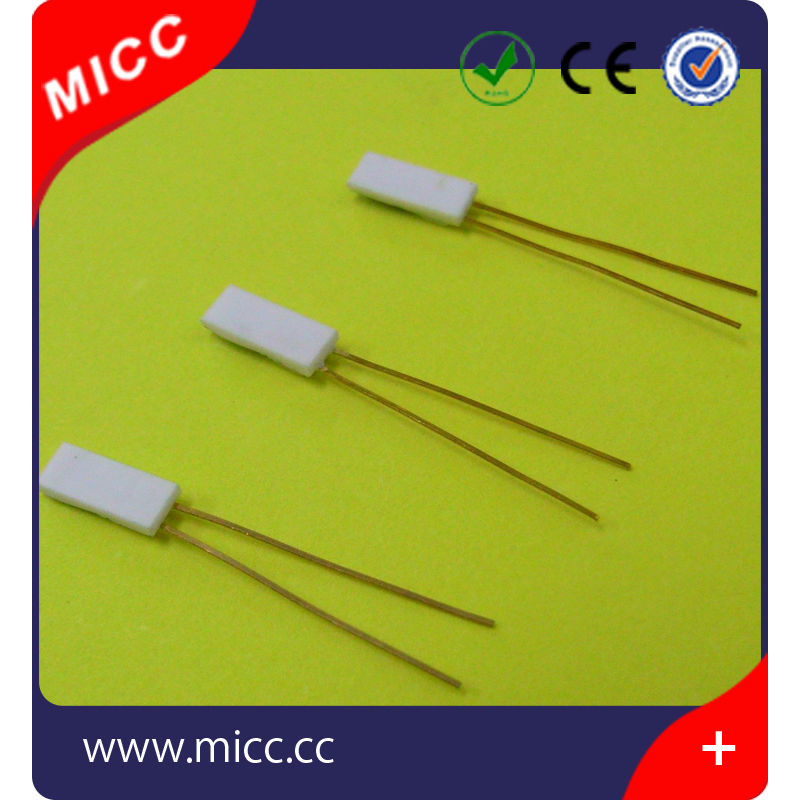

Platinum Rtd Elements

Name: Platinum Rtd Elements
Brand: all-electronics-online.com
SKU: 725912855
Availability: InStock
Rating: 4.3 (108 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	20/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RTD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Mseries PRTDs are designed for large volume applications where long term stability, interchangeability and accuracy over a large temperature range are vital. Typical applications are Automotive, White goods,
HVAC, Energy management, Medical and Industrial equipment.

The measuring point for the nominal resistance is defined at 8 mm from the end of the sensor body.

Nominal Resistance R0	Tolerance	Order Number Plastic Box
100 Ohm at 0º C	DIN EN 60751, class B	32 208 548
	DIN EN 60751, class A	32 208 550
	DIN EN 60751, class 1/3 DIN	32 208 551
500 Ohm at 0º C	DIN EN 60751, class B	32 208 706
1000 Ohm at 0	DIN EN 60751, class B	32 208 571
	DIN EN 60751, class A	32 208 572
	DIN EN 60751, class 1/3 DIN	32 208 707

Specification	DIN EN 60751 (according to IEC 751)
Temperature range	-70º C to +500º C (continuous operation) (temporary use to 550º C possible) Tolerance class B: - 70º C to + 500º C Tolerance class A: - 50º C to + 300º C Tolerance class 1/3 DIN: 0º C to + 150 º C
Temperature coefficient	TC = 3850 ppm/K
Leads	Pt clad Ni wire
Long-term stability	max. R0-drift 0.04% after 1000 h at 500º C
Vibration resistance	at least 40 g acceleration at 10º C to 2000 Hz, depends on installation
Shock resistance	at least 100 g acceleration with 8ms half sine wave, depends on installation
Shock resistance	at least 100g acceleration at frequencies from 10Hz up to 2000Hz, depends on the installation
Environmental conditions	Unhoused for dry environment only
Insulation resistance	> 100 MΩ at 20º C; > 2 MΩ at 500º C
Self heating	0.4 K/mW at 0º C
Response time	Water current (v= 0.4m/s): t0.5 = 0.05s, t0.9 = 0.15s Air stream (v= 2m/s): t0.5 = 3.0s, t0.9 = 10.0s
Measuring current	100Ω : 0.3 to 1.0 mA 500Ω : 0.1 to 0.7 mA 1000Ω : 0.1 bis 0.3 mA (self heating has to be considered)
Note	Other tolerances, values of resistance and wire lengths are available on request.
