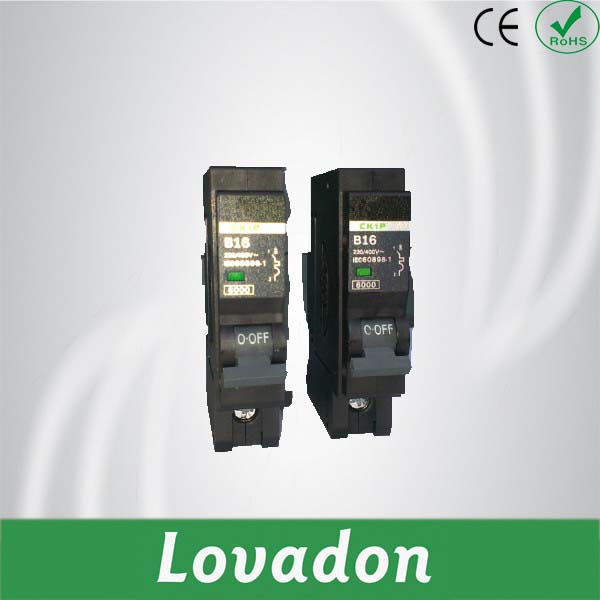

Plug in B16 Circuit Breaker

Name: Plug in B16 Circuit Breaker
Brand: all-electronics-online.com
SKU: 684434512
Availability: InStock
Rating: 4.4 (32 reviews)

Price:	US $ 0.62/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	B16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Storage Temperature:	-25~+70
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	1
Certification:	CE

Product Description

10 KA according IEC 60947-2 and IEC 60947-4
1.Item Name : B16
2.Standard IEC60898-1
3.Product Certifications CE, ISO9001
4.Product Function Short circuit protection, Over current protection

Product Description
Provides protection against Short-circuit/Overload current and function of isolation.
High breaking current withstand capacity
Applicable to terminal and pin/fork type busbar connection
Equipped with finger protected connection terminals
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity
Independent of power supply and line voltage, and free from external interference, voltage fluctuation

	1.Specifications
	Standard		IEC/EN 60898-1
Electrical features	Rated current In	A	1,2,4,6,10,16,20,25,32,40,50,63
	Poles	P	1,2,3,4
	Rated voltage Ue	V	220/380 230/400 240/415
	Insulation voltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated breaking capacity	A	4500/6000/10000
	Rated impulse withstand voltage(1.2/50) Uimp	V	6000
	Dielectric test voltage at ind. Freq. for 1min	kV	2
	Pollution degree		2
	Thermo-magnetic release characteristic		B,C,D
Mechanical features	Electrical life	t	8000
	Mechanical life	t	20000
	Protection degree		lP20
	Reference temperature for setting
	of thermal element	C	30
	Ambient temperature	C	From -5~+40
	(with daily average < 35 )
	Storage temperature	C	-25~+70
Installation	Terminal connection type		Cable / Pin-type busbar
	Terminal size top /bottom for cable	mm2	25
		AWG	18~3
	Terminal size top/bottom for busbar	mm2	25
		AWG	18~3
	Tightening torque	N*m	2
		ln-Ibs	18
	Mounting		On DIN rail EN 60715(35mm)by means fast clip device
	Connection		From top and bottom
