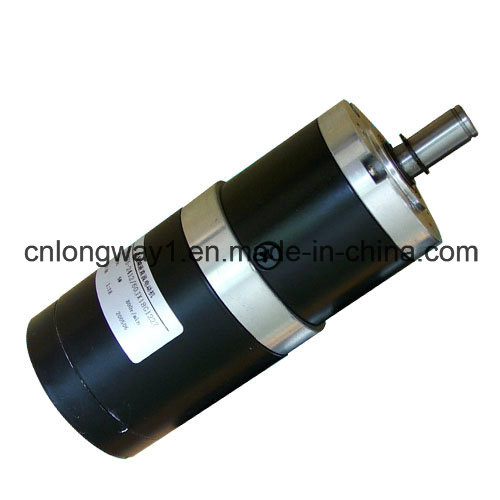

Pm DC Planetary Gear Motor

Pm DC Planetary Gear Motor
Price: US $ 68/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Prod Model: 56JX200K/60ZY75
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter: 56mm
Voltage: 12/24V
Speed: 6~833rpm
Application: Power Tools
Operating Speed: Low Speed
Excitation Mode: Excited
Structure And Working Principle: Brush
Brand: Longway

Product Description

Motor Technical Data
ModelRated VoltageNo-loda SpeedNo-load currentRated SpeedRated torqueOut put powerRated currentStall TorqueStall Current
60ZY75-123012V3000rpm0.8A2500rpm0.040N.m15W2.2A0.45N.m7.5A
60ZY75-242024V2000rpm0.30A1500rpm0.035N.m7.5W0.8A0.19N.m2.4A
60ZY75-245324V3000rpm0.40A2500rpm0.040N.m15W1.1A0.26N.m5.0A

Gear Motor Technical Data

Mode: 60ZY75-2420 DC MOTOR

Reduction ratio3.64.2513151847556576168198234276326
Number of gear trains11222333344444
Length         mm5353535353646464647676767676
No-load speed   rpm556470154133111433631261210976
Rated speed   rpm417353115100833227232097.56.55.54.5
Rated torque   N.m0.110.130.370.430.511.21.41.61.93.94.65.46.47.6
Max. permissible load in a short time           N.m66252525505050506060606060



Welcome your inquiry.
Ningbo Yinzhou Longway Technology Co., Ltd. is a professional motor, machinery and electronic products manufacturer in China. Since day one after its establishment, our company has spared no efforts in developing new products and optimizing them. A comprehensive and consistent quality system has been since long established, from design to production, form marketing to after sale service. Our company attaches great importance to employee training. It pays off when the quality of each and every one of our employees keeps improving. Now the motor products include PMDC motors, brushless motors, stepping motors, AC and DC gear motors, synchronous motors, brushless servo motors. Most of products are CE, UL approved. We can also complete OEM/ODM orders in accordance with clients' specific requirements, designs and samples.

The advanced technologies of design and manufacturing were adopted from Germany. We take pride in the CAD/cam mould tooling center and the testing center. We enjoy an excellent reputation in Europe, America, Australia, Middle East, and southeast Asia as well as in China.

"satisfactory products plus satisfactory services" makes our success happen. We sincerely hope to have and also thank for valuable supports and cooperation from all friends in the world.
