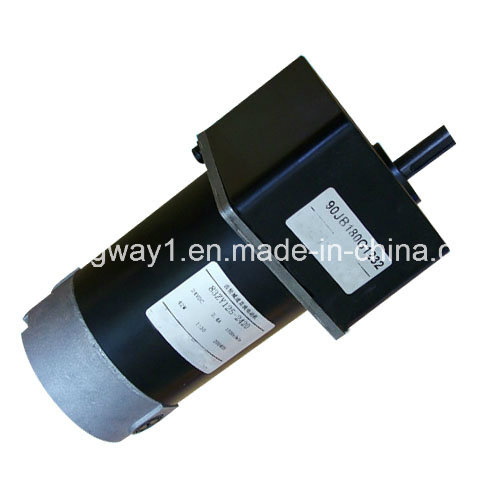

Pm DC Spur Gear Motor for Equipment

Name: Pm DC Spur Gear Motor for Equipment
Brand: all-electronics-online.com
SKU: 773947655
Availability: InStock
Rating: 4.3 (149 reviews)

Price:	US $ 60/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	83ZYT125-90SPGS200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor Diameter:	83mm
Motor Voltage:	12V , 24V
Motor Weight:	1.6kg
Motor Length:	110mm
Application:	Power Tools
Operating Speed:	Constant Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush

Product Description

Gearbox with diameter 90mm, allowed torque 20N.m
Fit for alloy steel gears, all bearing configuration, low noise.

Motor Technical Data

Model	Rated Voltage (VDC)	No-load Speed (r/min)	No-load Current (mA)	Rated Speed (r/min)	Rated Torque (mN.m)	Output Power (W)	Pated Current (mA)	Stall Torque (mN.m)	Stall Current (A)
83ZYT125-2420	24	2000	0.8	1700	0.24	42	3.5	1.6	17
83ZYT125-2430	24	3000	0.9	2500	0.3	77	4.6	1.8	20

Gear motor Technical Data

Reduction ratio	3	5	7.5	12.5	15	25	30	50	75	100	120	150
Number of grea trains	2	2	2	2	2	3	3	4	4	4	4	4
Length(L) mm	65	65	65	65	65	65	65	65	65	65	65	65
No-load speed r/min	667	400	267	160	133	80	67	40	27	20	16	13
Rated speed r/min	567	340	227	136	113	68	57	34	23	17	14	12
Rated torque N.m	0.6	1.0	1.4	2.4	2.9	4.4	5.2	7.9	11.8	15.8	19.0	20.0
Max.permissible load in a short time	5.0	7.5	7.5	7.5	7.5	15.0	15.0	30.0	30.0	30.0	30.0	30.0
Direction of Rotation	CCW	CCW	CCW	CCW	CCW	CW	CW	CCW	CCW	CCW	CCW	CCW

Reduction ratio	3	5	7.5	12.5	15	25	30	50	75	100
Number of grea trains	2	2	2	2	2	3	3	4	4	4
Length(L) mm	65	65	65	65	65	65	65	65	65	65
No-load speed r/min	1000	600	400	240	200	120	100	60	40	30
Rated speed r/min	833	500	333	200	167	100	83	50	35	27
Rated torque N.m	0.8	1.2	1.8	3.0	3.6	5.5	6.6	9.9	14.8	19.8
Max.permissible load in a short time	5.0	7.0	7.5	7.5	7.5	15.0	15.0	30.0	30.0	30.0
Direction of Rotation	CCW	CCW	CCW	CCW	CCW	CW	CW	CCW	CCW	CCW

The specifications can be designed according to the customer's requirement !
