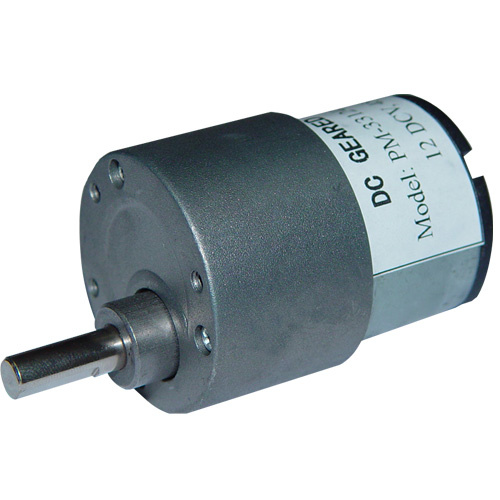

Pm33mm DC Gear Motor for Auto Shutte

Name: Pm33mm DC Gear Motor for Auto Shutte
Brand: all-electronics-online.com
SKU: 774451705
Availability: InStock
Rating: 4.7 (28 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PM33
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor Size:	33mm
Weight:	120-160g/PCS
CTN Size:	36.53117
60PCS/CTN:	G.W.11kgs
Application:	Power Tools
Operating Speed:	Low Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Certification:	CE

Product Description

DC GEAR MOTOR
Main voltage: 3V, 6V, 9V, 12V, 24V
Typical Applications: Auto shutter, Money detector, Binding machine, Automatic TV rack, Packing bank note machine, Limelight , Tissuse machine,Office equipment, Household appliances, Automatic actuator.
Motor Data:

Type	Rated Votage V	No load		Load Torque				Stall torque
		Current	Speed	Current	Speed	Torque	Output power	Torque	Current
		mA	rpm	mA	Rpm	gf.cm	W	gf.cm	mA
PM-33123000	12	≤20	3000	≤110	2200	25	0.55	100	400
PM-33124500	12	≤30	4500	≤150	3300	35	1.2	140	850
PM33-126000	12	≤40	6000	≤400	4500	45	2.3	180	1400
PM33-243000	24	≤15	3000	≤60	2200	25	0.55	100	200
PM-33244500	24	≤20	4500	≤80	3300	35	1.2	140	420
PM-33246000	24	≤30	6000	≤200	4500	45	2.3	180	700
