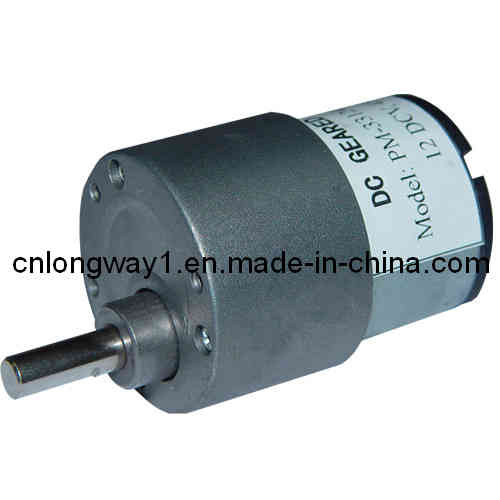

PMDC Gear Motor (PM-33)

Name: PMDC Gear Motor (PM-33)
Brand: all-electronics-online.com
SKU: 671329195
Availability: InStock
Rating: 4.6 (34 reviews)

Price:	US $ 20/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PM-33
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	12/24V
Application:	Power Tools
Operating Speed:	Low Speed
Excitation Mode:	Shunt
Structure And Working Principle:	Brush
Brand:	Longway

Product Description

Model: PM-33
We can design it according to your special requirements.

Geared motor name	Rated Volt. V	No Load	Load Torque	At Maximum Efficiency	Output power W	Number of gear trains	Gearbox length "L"mm
Current	Speed	Current	Speed	Torque
mA	r/min	mA	r/min	Kgf·cm	N·m	Kgf·cm	N·m
PM-33243000-30K	24	≤15	100	≤60	73	0.8	0.08	2	0.2	0.6	3	22
PM-33243000-60K	24	≤15	50	≤60	36	1.4	0.14	4	0.39	0.5	4	25
PM-33243000-90K	24	≤15	33	≤60	24	2.1	0.2	6	59	0.5	4	25
PM-33243000-180K	24	≤15	16	≤60	12	4.2	0.41	12	1.18	0.5	5	27
PM-33243000-270K	24	≤15	11	≤60	8	6.3	0.61	18	1.76	0.5	5	27
PM-33243000-540K	24	≤15	5.5	≤50	4	10	0.98	30	2.94	0.4	6	29
PM-33243000-810K	24	≤15	3.7	≤40	3	10	0.98	30	2.94	0.3	6	29
PM-33243000-1620K	24	≤15	1.8	≤30	1.6	10	0.98	30	2.94	0.2	7	29
PM-33243000-2430K	24	≤15	1.2	≤25	1.1	10	0.98	30	2.94	0.1	7	29
