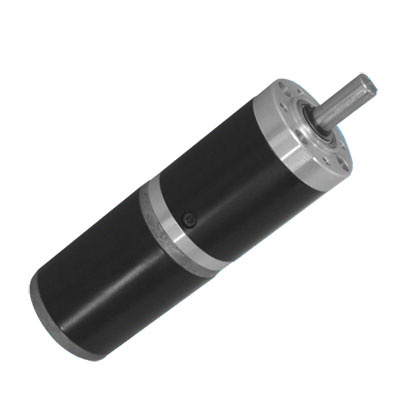

PMDC Planet Gear Motor with 36mm Diameter

Name: PMDC Planet Gear Motor with 36mm Diameter
Brand: all-electronics-online.com
SKU: 774129315
Availability: InStock
Rating: 4.7 (92 reviews)

Price:	US $ 45pc
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	36ZYT85P-12PLG30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
36mm Od Reinforced Gearbox:	Permissible Load Range0.3nm-3.0nm
Delivery Time:	15-20days
Package:	60PCS/CTN
Net Weight:	1kg
Application:	Power Tools
Operating Speed:	Low Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Certification:	CE

Product Description

PMDC PLANET GEAR MOTOR
Description of the product
1. Diameter 28mm planetary gear has a rated load 3N.M
2. Fit for big output torque equipment.

Motor Technical Data

Model	Rated Voltage VDC	No-load Speed r/min	No-load Current mA	Rated Speed r/min	Rated Torque mN.m		Output Power W	Pated Current mA	Stall Torque mN.m	Stall Current A
36ZYT85-1230	12	3000	250	2400	40		10	1.6	206	6.7
36ZYT85-2430	24	3000	150	2500	40	10		0.85	250	4.2

Gear motor Technical Data

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139
Number of gear trains	1	1	2	2	2	3	3	3	3
Length(L) mm	31.5	31.5	38.5	38.5	38.5	48.5	48.5	48.5	48.5
No-load speed r/min	808	579	214	157	111	59	42	30	21
Rated speed r/min	654	467	172	127	89	47	35	25	20
Rated torque N.m	0.14	0.19	0.5	0.68	0.97	1.8	2.4	3	3.0
Max.permissible load in a short time	1.0	1.0	3	3	3	6	6	6	6

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139
Number of gear trains	1	1	2	2	2	3	3	3	3
Length(L) mm	31.5	31.5	38.5	38.5	38.5	48.5	48.5	48.5	48.5
No-load speed r/min	808	579	214	157	111	59	42	30	21
Rated speed r/min	686	490	181	133	94	50	37	25	20
Rated torque N.m	0.14	0.19	0.5	0.68	0.97	1.8	2.4	3	3
Max.permissible load in a short time	0.9	0.9	3	3	3	6	6	6	6

*The specifications can be designed according to the customer's requirement !
