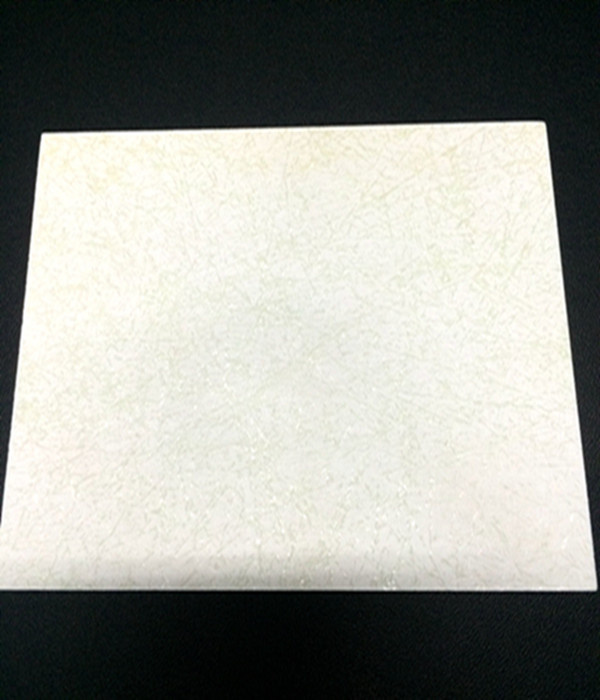

Polyester Fiber Laminated Gpo-3

Name: Polyester Fiber Laminated Gpo-3
Brand: all-electronics-online.com
SKU: 773333995
Availability: InStock
Rating: 4.4 (141 reviews)

Price:	US $ 4.5-5kilograms
Trade Terms:	FOB,CFR,CIF
Min Order:	500kilograms
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Gpo-3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sheet Size:	1020*1220mm
Application:	Switch Baseplate
Type:	Insulation Sheet
Chemistry:	Organic Insulation
Thermal Rating:	H 180
Maximum Voltage:	20KV~100KV
Material:	Upgm203
Color:	Red, White
Brand:	Nova

Product Description

Descriptions:

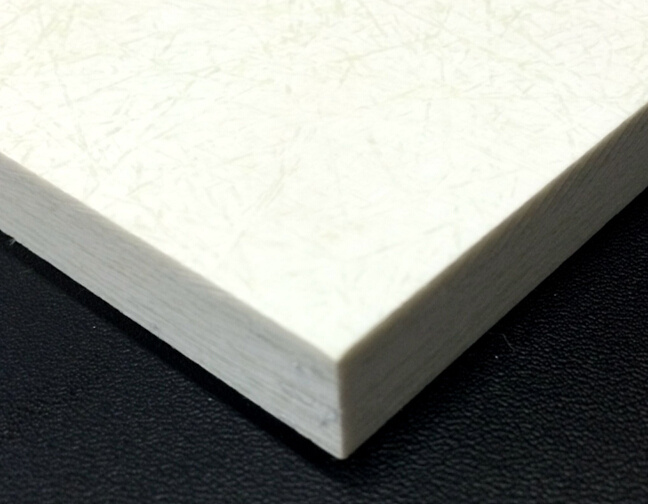

GPO-3 is also called UPGM203, it is a glass mat reinforced thermoset polyester molded sheet, which is both arc and track resistant.
GPO-3 is a UL recognized grade and is highly flame retardant and low-smoke generating.

Application:
Typical applications for UPGM203 include high-voltage appliance insulators, bus bar supports, and barriers and mounting panels in switchgear, as well as other types of electrical applications.

Specification:
1)Grade: GPO-3
2)Color: Red, White
3)Thickness range: 0.1mm~100mm
4)Min. Order Quantity: 500kgs in a lot

GPO-3 Physical Properties
Size	1020*1220mm
Tensile Strength ASTM D-638	7800 psi
Operating Temp	266º - 320º F (130º - 160º C)
Compressive Strength ASTM D-695	33,100 psi
Electrical Strength Perpendicular ASTM D149	450 Vpm
Thermal Conductivity BTU/hr/ft²/in/ºF	1.90
Arc Resistance ASTM D495	180 sec

We have the ability to machine electrical insulation laminates into many customize sizes and shapes according to drawings or samples.
We have the ability to machine electrical insulation laminates into many customize sizes and shapes according to drawings or samples.

Model NO	GPO-3
Base Material	glass fiber chopped strand mat and epoxy resin
Density	2.0

Item	Testing method	Unit	Result
Fire Retardancy Grade	A	--	94-V0
Dielectric constant	C-96/20/65 (in 25 °C oil)	KV/mm	14(OK)
Volume Resistivity	C-96/20/65	Ω	5*10^11-10^12
Volume Resistivity	C-96/20/65 +C-96/40/95	Ω	5*10^11-10^12
Surface Resitance	C-96/20/65	Ω	5*10^10-10^12
Surface Resitance	C-96/20/65 +C-96/40/90	Ω	5*10^11-10^12
Insulation Resistance	C-96/20/65	Ω-cm	5*10^10-10^11
Insulation Resistance	C-96/20/65 +D-2/100	Ω-cm	10^8-10^9
Permittivity(1MHZ)	C-96/20/65	--	4.0-5.0
Permittivity(1MHZ)	C-96/20/65 +D-48/50	--	4.5-5.5
Dissipation Factor(1MHZ)	C-96/20/65	--	0.035-0.045
Dissipation Factor(1MHZ)	C-96/20/65 +D-48/50	--	0.04-0.05
Bending strength(Horizontal)	A	kg/mm 2	38-45
Heat Resistance(120min)	A	°C	200(OK)
Anti-impact intensity(Parrallellable)	A	kg-cm/cm 2	--
Adhesive strength	A	kg	--
Compressive strength(Vertical)	A	kg/mm 2	--
Compressive strength(Horizontal)	A	kg/mm 2	--
Water absorption rate	E-24/50 +D-24/23	%	0.05-0.07
Acetone Resistance	boiled	Min	30(OK)
Punching Force	A	°C	20

Nova specializes in manufacturing & machining Electrical Insulation Laminates since 2001.

We offer high quality materials & machined parts to a variety of insulating applications, especially to Mechanical, Electrical, PCBs, Surfboard and Knifehand Industries.

Nova supplies the following products:

1) Epoxy Glass Fabric Laminated sheets (G10/G11/FR4/FR5)

2) Phenolic Paper Laminated sheets (X/XX/XP/XPC)

3) Phenolic Cotton Cloth Laminated sheets (C/CE/L/LE)

4) Others: Colored G10, Anti-static G10 ESD, Phenolic Rods/Tubes, Epoxy Rods/Tubes, G7 Glass Reinforced Silicone, and many others.

Custom machining, including cutting, sanding, routing, drilling, turning, slotting, and assembling, are welcome.

Just send us inquiries or drawings today, we appreciate an opportunity to service your insulating needs.
