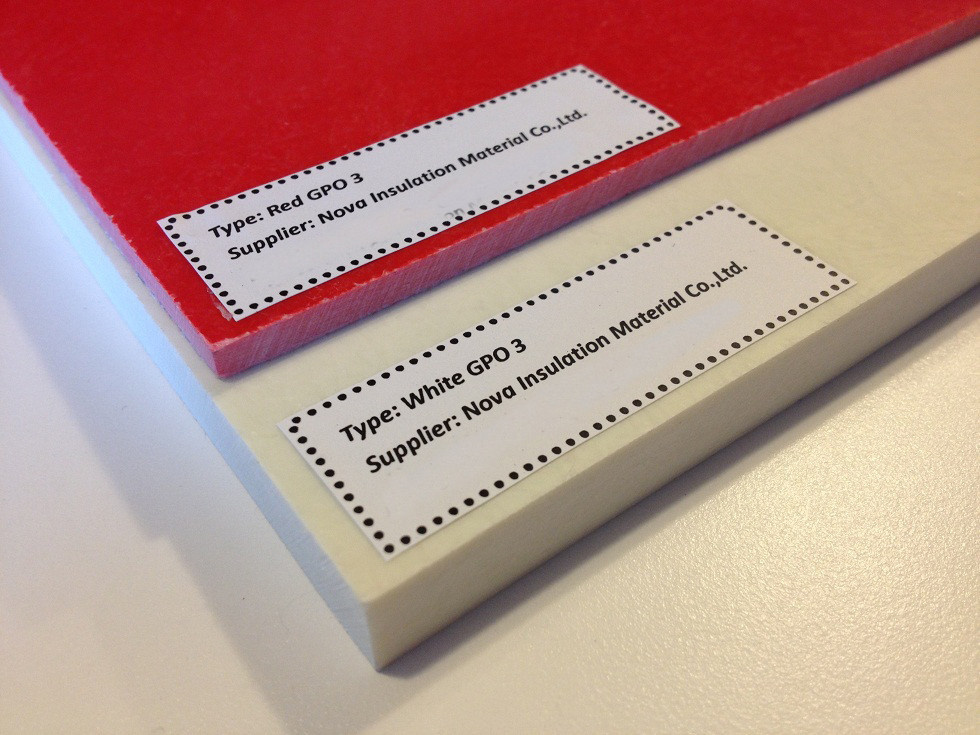

Polyester Glass Laminate (UPGM203)

Name: Polyester Glass Laminate (UPGM203)
Brand: all-electronics-online.com
SKU: 770122985
Availability: InStock
Rating: 5 (122 reviews)

Price:	US $ 4.5-5kilograms
Trade Terms:	FOB,CFR,CIF
Min Order:	500kilograms
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	UPGM203
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sheet Size:	10201220mm; 10202040mm; 1220*2440mm
Application:	Switch Baseplate
Type:	Insulation Sheet
Chemistry:	Organic Insulation
Thermal Rating:	H 180
Maximum Voltage:	20KV~100KV
Material:	Upgm203
Color:	Red, White
Brand:	Nova

Product Description

Descriptions:
GPO-3 is also called UPGM203, it is a glass mat reinforced thermoset polyester molded sheet, which is both arc and track resistant.
GPO-3 is a UL recognized grade and is highly flame retardant and low-smoke generating.

Application:
Typical applications for UPGM203 include high-voltage appliance insulators, bus bar supports, and barriers and mounting panels in switchgear, as well as other types of electrical applications.

Specification:
1)Grade: GPO-3
2)Color: Red, White
3)Thickness range: 0.1mm~100mm
4)Min. Order Quantity: 500kgs in a lot

GPO-3 Physical Properties
Size	1020*1220mm
Tensile Strength ASTM D-638	7800 psi
Operating Temp	266º - 320º F (130º - 160º C)
Compressive Strength ASTM D-695	33,100 psi
Electrical Strength Perpendicular ASTM D149	450 Vpm
Thermal Conductivity BTU/hr/ft²/in/ºF	1.90
Arc Resistance ASTM D495	180 sec

We have the ability to machine electrical insulation laminates into many customize sizes and shapes according to drawings or samples.

Nova specializes in manufacturing & machining Electrical Insulation Laminates since 2001.

We offer high quality materials & machined parts to a variety of insulating applications, especially to Mechanical, Electrical, PCBs, Surfboard and Knifehand Industries.

Nova supplies the following products:

1) Epoxy Glass Fabric Laminated sheets (G10/G11/FR4/FR5)

2) Phenolic Paper Laminated sheets (X/XX/XP/XPC)

3) Phenolic Cotton Cloth Laminated sheets (C/CE/L/LE)

4) Others: Colored G10, Anti-static G10 ESD, Phenolic Rods/Tubes, Epoxy Rods/Tubes, G7 Glass Reinforced Silicone, and many others.

Custom machining, including cutting, sanding, routing, drilling, turning, slotting, and assembling, are welcome.

Just send us inquiries or drawings today, we appreciate an opportunity to service your insulating needs.
