Polyimide Flexible PCB Single Sided FPC with 0.20mm Thick

Name: Polyimide Flexible PCB Single Sided FPC with 0.20mm Thick
Brand: all-electronics-online.com
SKU: 826646645
Availability: InStock
Rating: 4.4 (23 reviews)

Price:	US $ 1.25/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-1827-V7
Board Thick:	0.20mm
Surface Finish:	Immersion Gold
Pth Cu Thickness:	≥20 µm
Copper Thick:	35 Um(1 Oz)
Coverlay Colour:	Yellow
Stiffener Thickness:	0.2mm
Color of Silkscreen:	White
Peeling Test of Coverlay:	No Peelable
RoHS Required:	Yes
Test:	100% Electrical Test
Structure:	Single-Sided FPC
Material:	Polyimide
Combination Mode:	Adhesive Flexible Plate
Conductive Adhesive:	Conductive Silver Paste
Application:	Wireless Dongle

Product Description

Polyimide Flexible PCB single sided FPC with 0.20mm thick 388

Commodity Introduction

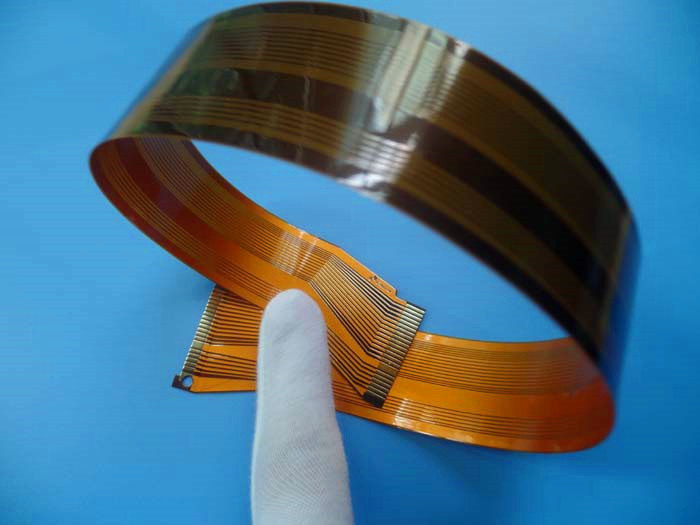

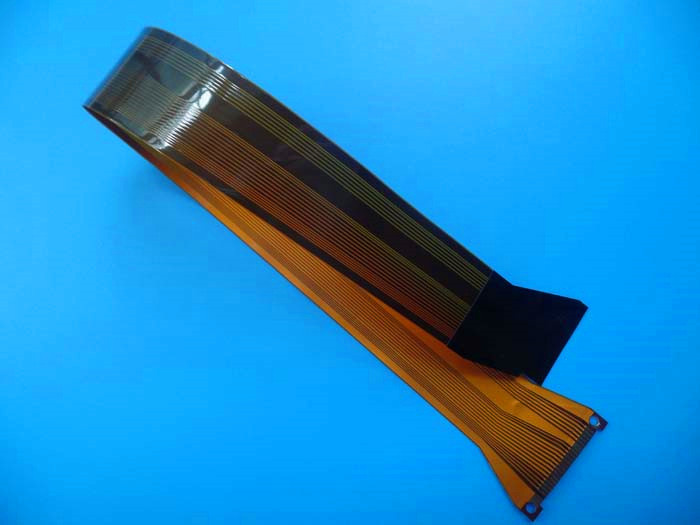

This is a type of flexible printed circuit for the application of Wireless Dongle. It's a single sided
layer FPC at 0.2mm thick. The base laminate is from ITEQ, It's fabricated per IPC 6012 Class
2 using supplied Gerber data. Polyimide stiffener is applied on the inserting head.

Parameter & Data Sheet

Size of Flexible PCB	230.5 X 40.8mm
Number of Layers	1
Board Type	Flexible PCB
Board Thickness	0.20mm
Board Material	Polyimide (PI) 25µm
Board Material Supplier	ITEQ
Tg Value of Board Material	60ºC

PTH Cu thickness	≥20 µm
Inner Iayer Cu thicknes	N/A
Surface Cu thickness	35µm (1oz)

Coverlay Colour	Yellow
Number of Coverlay	1
Thickness of Coverlay	25 µm
Stiffener Material	Polyimide
Stiffener Thickness	0.2mm

Type of Silkscreen Ink	IJR-4000 MW300
Supplier of Silkscreen	TAIYO
Color of Silkscreen	White
Number of Silkscreen	1

Peeling test of Coverlay	No peelable
Legend Adhesion	3M 90ºC No peeling after Min. 3 times test

Surface Finish	Immersion Gold
Thickness of Nickle/Gold	Au: 0.03µm(Min.); Ni 2-4µm
RoHS Required	Yes
Famability	94-V0

Thermal Shock Test	Pass, -25ºC±125ºC, 1000 cycles.
Thermal Stress	Pass, 300±5ºC,10 seconds, 3 cycles. No delamination, no blistering.
Function	100% Pass electrical test
Workmanship	Compliance with IPC-A-600H & IPC-6013C Class 2

Single-Sided Flexible Printed Circuits (FPC)

It is the simplest type of FPC, and consists of a thin and flexible base material (Polyimide or PET)
to which a copper foil is laminated by means of an adhesive. The finished circuit is frequently
provided with a coverlay bonded to the copper side by means of an adhesive.

Stack up
           |-Polyimide
Coverlay }   |
           |-Adhesive

           |-Copper Foil
Flex PCB }   |Adhesive
           |-Polyimide
