Polyimide FPC Keypad Connector Flexible Printed Circuit

Name: Polyimide FPC Keypad Connector Flexible Printed Circuit
Brand: all-electronics-online.com
SKU: 827291035
Availability: InStock
Rating: 4.3 (32 reviews)

Price:	US $ 1.23/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-1827-V18
Board Thickness:	0.2mm
Surface Cu Thickness:	35 Um
Coverlay Colour:	Yellow
Stiffener Thickness:	0.20mm
Legend Color:	White
Peeling Test of Coverlay:	No Peelable
Surface Finish:	Immersion Gold
RoHS Required:	Yes
Pth Cu Thickness:	≥20 µm
Test:	100% Electrical Test
Structure:	Double-Sided FPC
Material:	Polyimide
Combination Mode:	Adhesive Flexible Plate
Conductive Adhesive:	Conductive Silver Paste
Application:	Keypad

Product Description

Polyimide FPC Keypad Connector Flexible Printed Circuit 409

Commodity Introduction

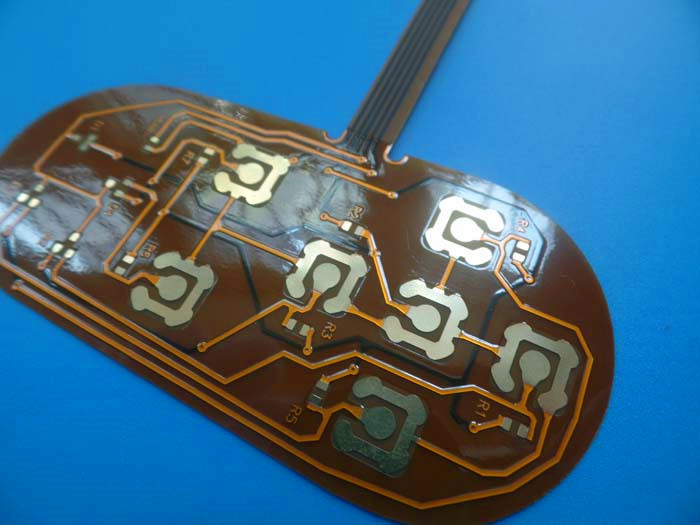

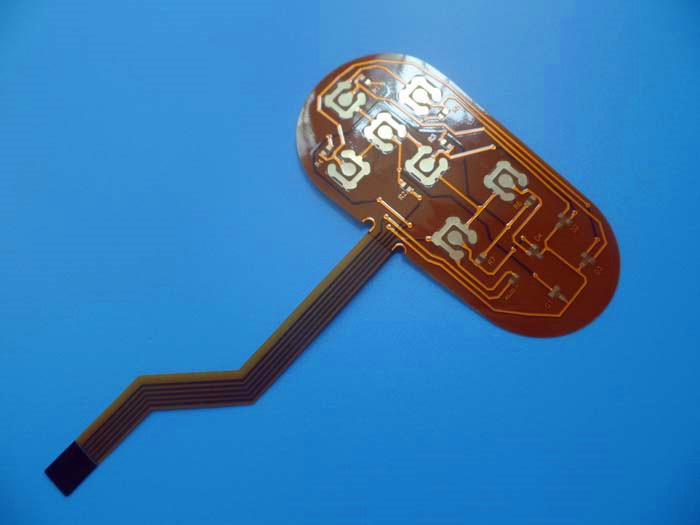

This is a type of flexible printed circuit for the application of keypad. It's a 2 layer FPC at 0.2mm
thick. The base laminate is from ITEQ, It's fabricated per IPC 6012 Class 2 using supplied Gerb
-er data. Polyimide stiffner is applied on the inserting part.

Parameter & Data Sheet

Size of Flexible PCB	120.18 X 30.28mm
Number of Layers	2
Board Type	Flexible PCB
Board Thickness	0.20mm
Board Material	Polyimide 25µm
Board Material Supplier	ITEQ
Tg Value of Board Material	60ºC

PTH Cu thickness	≥20 µm
Inner Iayer Cu thicknes	N/A
Surface Cu thickness	35 µm

Coverlay Colour	Yellow
Number of Coverlay	2
Thickness of Coverlay	25 µm
Stiffener Material	Polyimide
Stiffener Thickness	0.2mm

Type of Silkscreen Ink	IJR-4000 MW300
Supplier of Silkscreen	TAIYO
Color of Silkscreen	White
Number of Silkscreen	1

Peeling test of Coverlay	No peelable
Legend Adhesion	3M 90ºC No peeling after Min. 3 times test

Surface Finish	Immersion Gold
Thickness of Nickle/Gold	Au: 0.03µm(Min.); Ni 2-4µm
RoHS Required	Yes
Famability	94-V0

Thermal Shock Test	Pass, -25ºC±125ºC, 1000 cycles.
Thermal Stress	Pass, 300±5ºC,10 seconds, 3 cycles. No delamination, no blistering.
Function	100% Pass electrical test
Workmanship	Compliance with IPC-A-600H & IPC-6013C Class 2

Double Sided Flex PCB
Double sided flexible circuits consist of a thin and flexible polyimide base material with copper foil laminated to each side through adhesive. The outer sides of the finished circuits are frequently provided with coverlay bonded to the outer side copper.

    Polyimide
              } Coverlay
    Adhesive
    Copper Foil   |
    Adhesive     |
    Polyimide     } Flexible Printed Circuit
    Adhesive     |
    Copper Foil   |
    Adhesive
                } Coverlay
    Polyimide

Plated through holes in double sided flexible circuits are usually drilled and contour and non- plated through holes are punched by mold.

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
