Polypropylene Terminal Block with Zin Plated

Name: Polypropylene Terminal Block with Zin Plated
Brand: all-electronics-online.com
SKU: 677004895
Availability: InStock
Rating: 5 (117 reviews)

Price:	US $ 0.14/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Copper
Application:	Transmission of Electrical Signals
Type:	Feed Through

Product Description

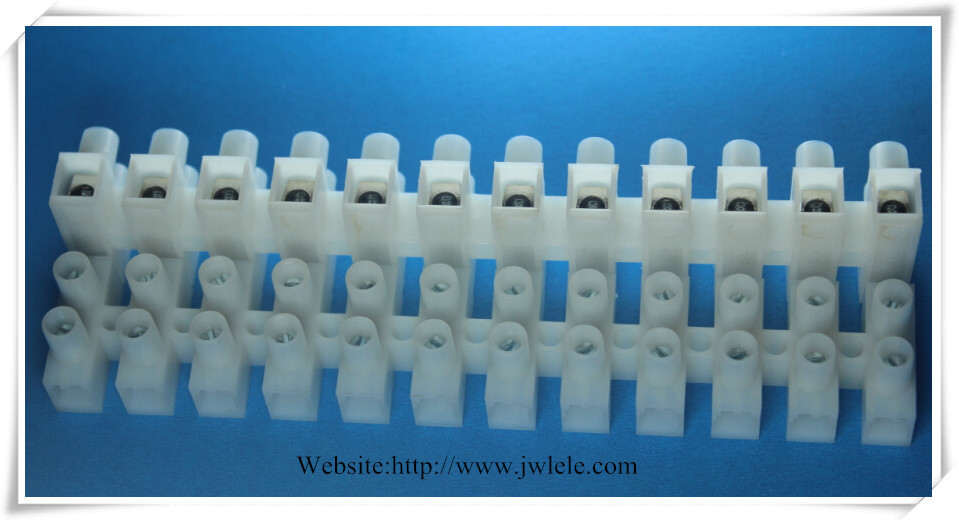

12 ways terminal block
* Type: Feed Through (H)
* Current: From 3A to 100A
* Voltage: 250 - 450V
* Material: PE, PP, PA

Fastening part: Brass plated nickel, screw is Iron plated zinc.
Model Number: 3AMP, 6AMP, 10AMP, 15AMP, 30AMP, 60AMP

Certificate: CE, RoHS, CQC
Color: Nature, White or black color AS YOUR REQUIREMENT
Cable Range: 2.5MM-40MM

PE, Polyethylene, good pliability, transparence, extensibility, resist dissolve, radiation. Working Temperature: - 40° C to 65° C, short time is 80° C.

PP, Polypropylene, inflaming retarding, low transparency, low rigidity, good bounce impact force. Working Temperature: - 30° C to 110° C, short time is 140° C

PA, Polyamide 6/6, 94V-2 grade. Inflaming retarding, good resist dissolve, good bounce impact force, Working Temperature: - 35° C to 115° C, short time is 180° C.

Item No.	L	W	H	mm²	VOLT	AMP
JWL-U3A	88	15	11	4	380V	3A
JWL-U6A	104	18	13.5	6	380V	6A
JWL-U10A	128	20	15	10	380V	10A
JWL-U15A	133	23	15	12	380V	15A
JWL-U20A	134	22	17.5	14	380V	20A
JWL-U30A	163	24	18	20	380V	30A
JWL-U60A	188	30	25	25	380V	60A
JWL-U80A	205	35	28	35	380V	80A
JWL-U100A	233	40	30	40	380V	100A
JWL-U150A	255	45	35	60	380V	150A

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
