Popular Screw Terminal Spst Momentary Push Button Switch (IP65)

Name: Popular Screw Terminal Spst Momentary Push Button Switch (IP65)
Brand: all-electronics-online.com
SKU: 791084175
Availability: InStock
Rating: 4.7 (113 reviews)

Price:	US $ 1.39/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HBGQ16F-10
Mounting Hole Size:	16mm
Switch Rating:	2A/36VDC
Contact Configuration:	1no
Operation Type:	Momentary
Terminal Type:	Screw Terminal
The Front Shape:	Flat
Crust Material:	Nickel-Plated Brass and Stainless Steel
Protection Degree:	IP65 Ik09
Mechanical Life:	1000000
Electrical Life:	200000
Type:	Normal Open
Usage:	Start Button
Kind:	Double Throw Switch
Contact Type:	Type X Contact
Brand:	Hban
Certification:	RoHS

Product Description

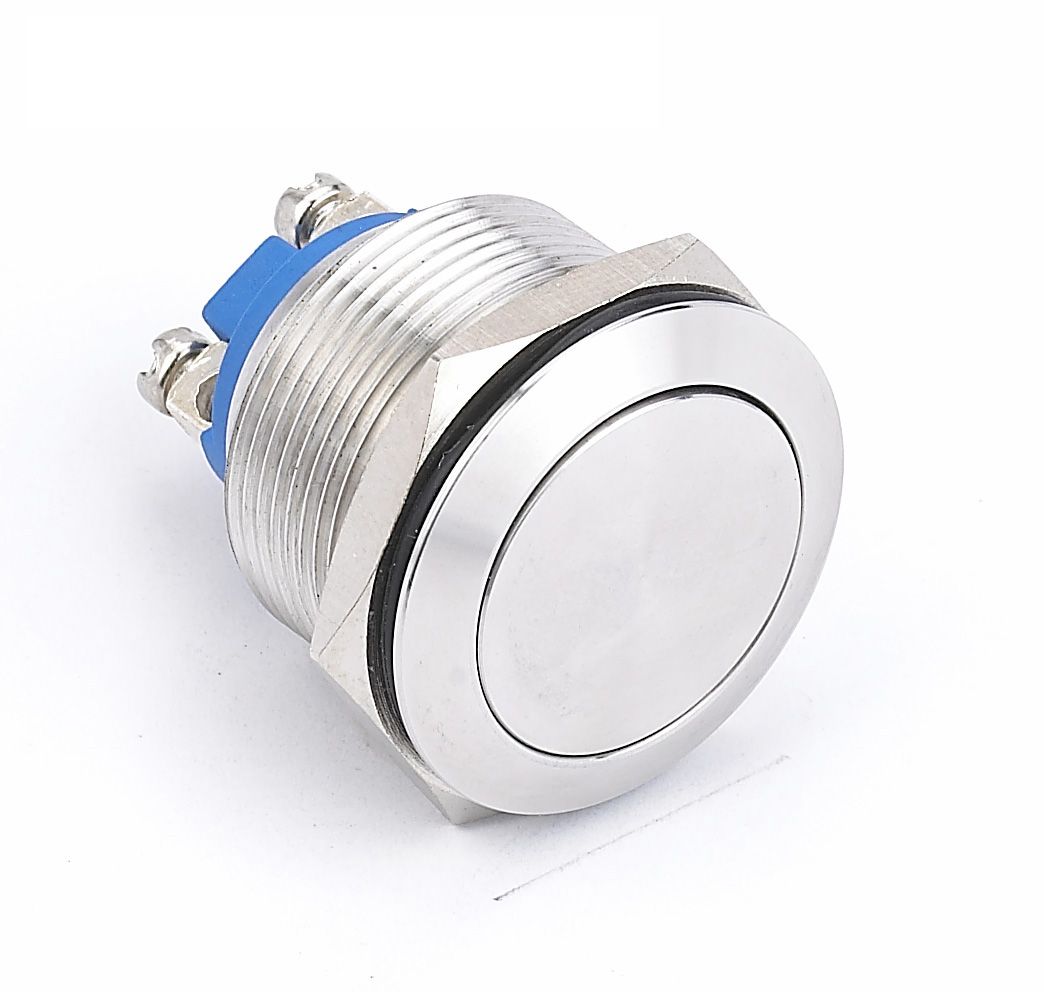

Popular Screw terminal SPST momentary push button switch (ip65

1.Specification

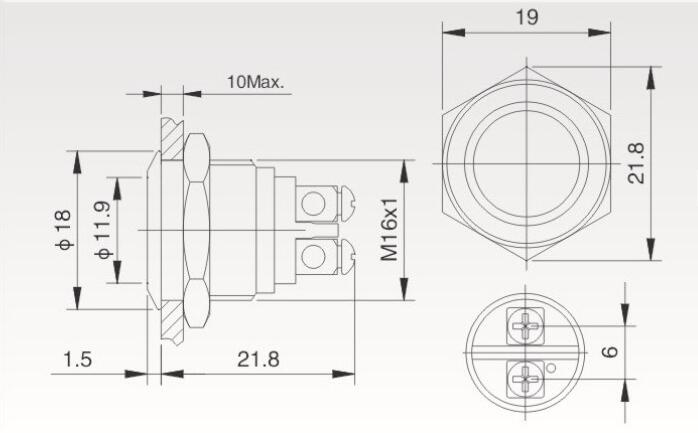

Mounting hole size:16mm
Switch Rating:2A/36VDC
Contact confirguration:1NO
Operation Type:Momentary
The front shape:Flat
The crust material:Stainless steel/Nickel-plated Brass

Specification	HBGQ16F-10/
The Front Shape	Flat
Terminal Type	Screw terminal
Switch Type	Two terminal breakpoints slow moving contact
Switch Specification	2A/36VDC
Contact Resistance	<50mΩ
Insulation resistance	>1000mΩ
Dielectric Strength	2000VAC
Operation Temperature	-20ºC~ 55ºC
Mechanical Life	>1,000,1000 times
Elecrical Life	>200,000 times
Panel Thickness	1~6mm
Torque	5-14Nm
Operation Pressure	<6N
Operation Stroke	about 1.5mm
Protection Degree	IP65 IK08
Material
Contact	Silver Alloy
Button	Stainless steel Mirror Surfact CD Pattern
Case	Stainless steel or Nickel-plated Brass
Base	PBT

2.Package:

ITEM	PC/BOX	BOX/CTN	PCS/CTN	CBM
HBGQ16F-10	40	25	1000	435X380X335

3.RAQ:
If you do not know which you need, please reply the following question, we can recommend of you.
1.Mounting hole size:6mm,8mm,10mm,12mm,14mm,16mm,19mm,22mm,25mm
2.Operation type: Momentary or Latching
5.The front shape: Flat, Flat Round, High Round, Concave, Slide, Hyperplane
6.The crust material: plastic, nickel-plated Brass, stainless steel or others
7.Pretection DegreeIP67 IK10

Would you need LED lamp? If yes, please reply the following question.
1.LED type: Ring or Dot
2.LED Rated Voltage: 2v/6v/12v/24v/110v/220v
3.LED color: one color or two, Red, Green, Yellow, Orange, Blue, White

4.Catalogue:
E-catalogue: http://www.cnyangben.cn/yangben/hban/#
Moblie Catalogue:

Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.

Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.

After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.

At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.
