VICCIA Electrical Co., Ltd. >> Porcelain Disc Insulator

Porcelain Disc Insulator

Porcelain Disc Insulator
Price: US $ 4-8/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 500/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: ANSI 52-10
Markets: North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia
Application: High-voltage
Material: Porcelain
Structure: Suspension Insulator
Type: 52-10

Product Description

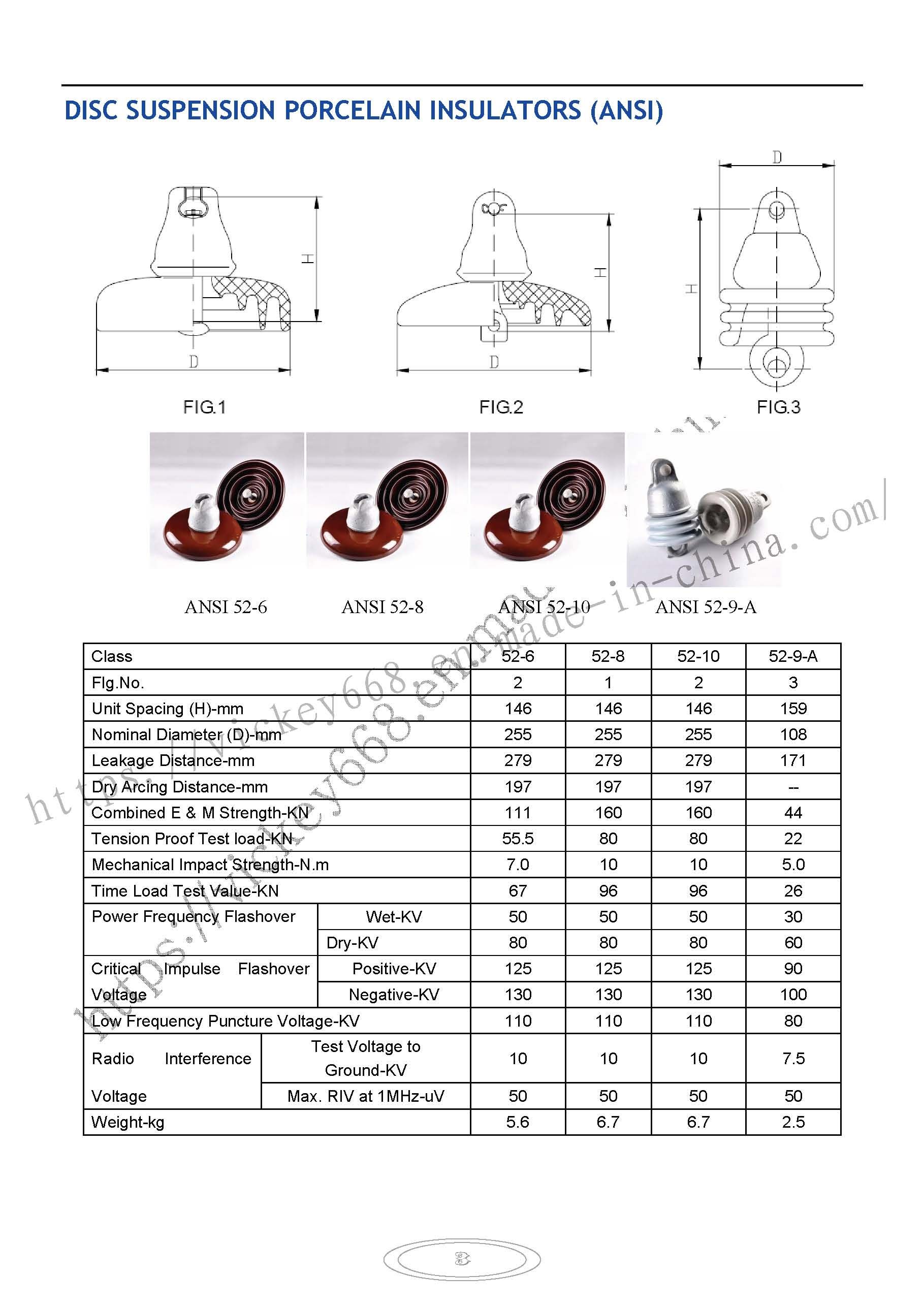

ANSI 52-10 Porcelain disc suspension insulator
1.Factory price
2.Timely delivey
3.ANSI,CESI,DIN,BS CLASS



Class52-10
Unit Spacing (H)-mm146
Nominal Diameter (D)-mm255
Leakage Distance-mm279
Dry Arcing Distance-mm197
Combined E & M Strength-KN160
Tension Proof Test load-KN80
Mechanical Impact Strength-N.m10
Time Load Test Value-KN96
Power Frequency FlashoverWet-KV50
 Dry-KV80
Critical Impulse Flashover VoltagePositive-KV125
 Negative-KV130
Low Frequency Puncture Voltage-KV110
Radio Interference VoltageTest Voltage to Ground-KV10
 Max. RIV at 1MHz-uV50
Weight-kg6.7
VICCIA Electrical Co., Ltd., a member of Fuzhou Light Industry Co., Ltd, is located in Sanming City of Fujian Province. We specialized in manufacturing and supplying multiple products, particularly in the field of electrical appliance, such as Fiberglass ladder and Aluminum ladder, high and low voltage product, power fittings and so on. Started with the business of international trading and sales agent of domestic supplier and overseas buyer, we now have skilled and experienced engineer team in design and manufacturing, as well as trained talents in business and management which enables us to respond effectively to the demands of market and our customers at all times.

The slogan of VICCIA is to provide the highest quality services to each customer, and to provide products to each customer with reasonable price and good quality. At the same time, we can develop and manufacture gratifying products in accordance with customers' certain requirements.

Put your trust in VICCIA, let us work together and achieve more.
