Refine Technology Limited >> Porcelain Line Post Insulator for Hv (57-1)

Porcelain Line Post Insulator for Hv (57-1)

Porcelain Line Post Insulator for Hv (57-1)
Price: US $ 3.75-5.75/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10000/Piece
Pay Type: L/C,T/T
Prod Model: 57-1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structure: Post Insulator
Material: Porcelain
Application: High-voltage
Size Of Bearing Capacity: 12.5kn
Type: ANSI

Product Description


Type: Line Post Insulator
Material: Porcelain
Application: Insulation for High Voltage Lines
Standard: ANSI
Color: Brown or Light Grey

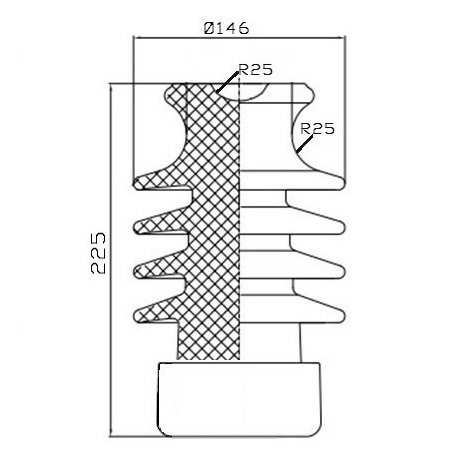

Dimension Drawing

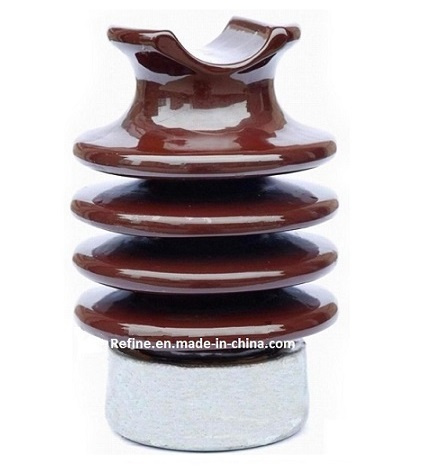

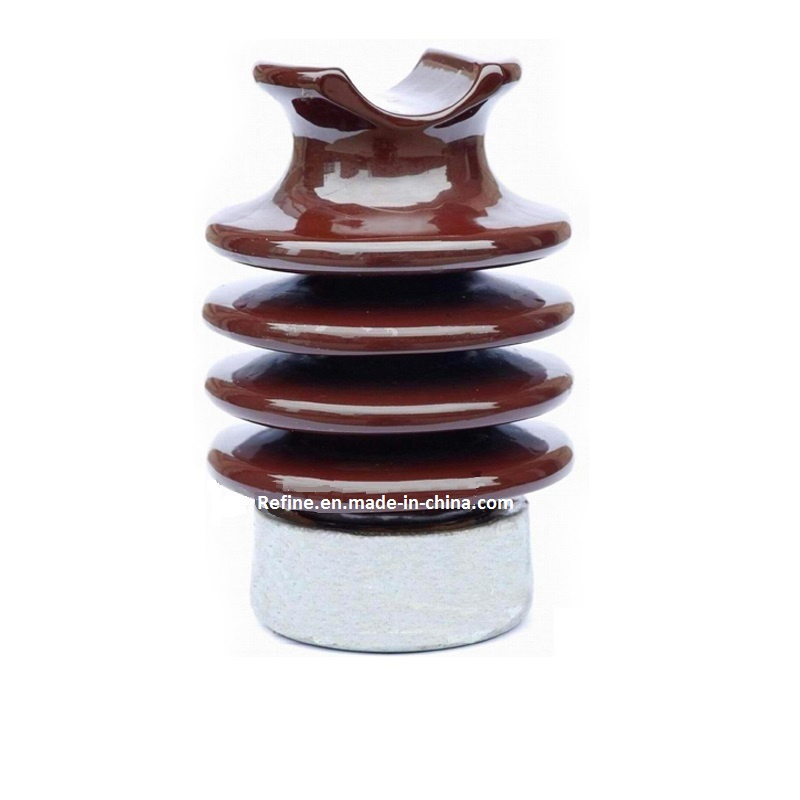

Product Picture

Standard Technical Particulars
ANSI Standard 57-1
Fig No. 1
Min Creepage Distance (mm) 356
Dry Arcing Distance  (mm) 165
Cantilever Strength (kN) 12.5
Power Frequency Flashover Voltage Dry (kV) 70
Wet (kV) 50
Critical Impulse             Flashover Voltage Positive (kV) 120
Negative (kV) 155
Radio Influece Voltage Test Voltage to ground (kV) 15
Maximum RIV at 1000kHz (μV) 100
Located in Shenzhen, Refine Technology Limited is a professional supplier and solution provider for electrical equipment and manufacturing machinery.

Up to now, we have established strategic partnership with power utilities, state-owned enterprises, reputed companies in North America, Europe, Asia, Africa, South America, etc.

In the past years, our quality products and complete solution has been exported to many countries worldwide, such as whole-process solution on tendering, turnkey project to set up a new concrete pole factory, one-stop electrical equipment procurement/delivery/after sales services, etc.

Since the foundation of the company, we regard quality as the foundation of long-term development, our company has been operating strictly as per ISO9001 quality management system, while our products has been certified in the target markets like Europe, North America, Asia, etc.

Apart from the offline marketing channels, our online E-commerce marketing is also growing drastically, our O2O business mode and professional backup team will keep bring value to all our partners.

Regarding ' Integrity' as our core value and ' Win-win' as the business strategy, we sincerely welcome you to visit our company or contact us for any upcoming cooperation opportunities.

Looking forward to establishing a long-term partnership with you.
