| Material: |
Porcelain/Polymer |
| Rated Voltage: |
15kv~38kv |
| Application: |
Outdoor |
| Rated Current: |
100~200A |
| Basic Impulse Withstand Voltage (Kv,Bil): |
95~150kv |
| Breaking Capacity: |
High |
| Type: |
Current Fuse |
| Usaga: |
High Voltage |
| Fusing Device: |
with Holder |

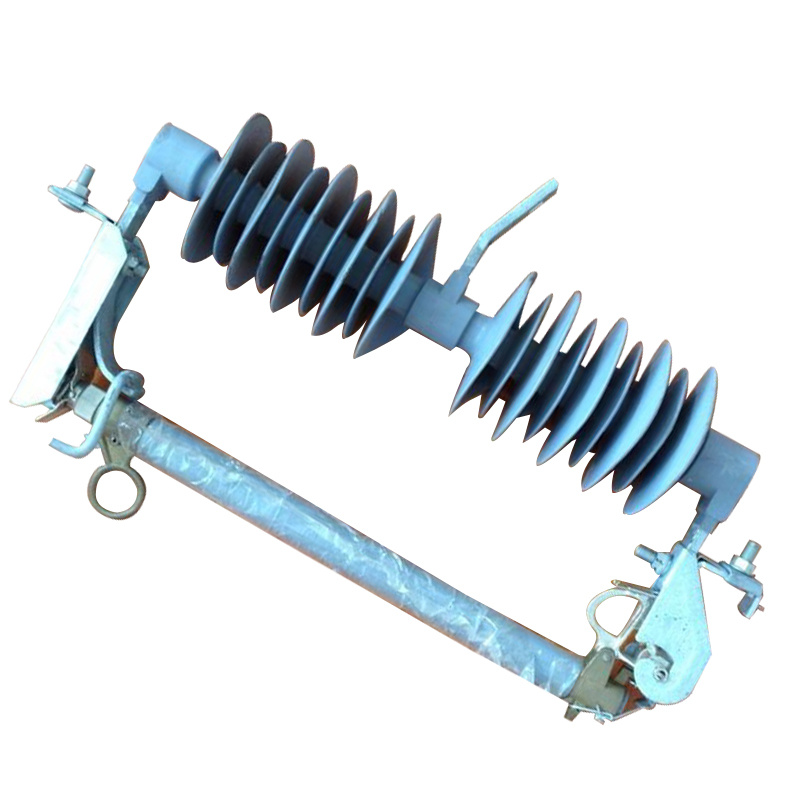

Product Description
In electrical distribution,a fuse cutout or cut-out fuse is a combination of a fuse and a switch, used in primary overhead feeder lines and taps to protect distribution transformers from current surges and overloads.An overcurrent caused by a fault in the transformer or customer circuit will cause the fuse to melt,disconnecting the transformer from the line.It can also be opened manually by utility linemen standing on the ground and using a long insulating stick called a hot stick.
Components
A cutout consists of three major components:The cutout body,an open"C"-shaped frame that supports the "fuse holder" and and porcelain insulator that electrically isolates the conductive portions of the assembly from the support to which the insulator is fastened.The fuse holder,often called the "fuse tube" or "door",which contains interchangeable fuse element and also acts as a simple knife switch ,and hang from a hinge assembly. This hinging fuse holder provides a visible inducation that the fuse has operated and assurance that the down-stream circuit is electrically isolated. The fuse element,or "fuse link",is the replaceable portion of the assembly that operates due to high electrical currents.
Application
The primary purpose of any cutout is to provide protection for your system and various apparatus on these lines,such as transformers and capacity banks.SPI cutouts provide reliable protection for low-level,intermediate and high-level faults. With the use of portable loadbreak tool,SPI cutouts can function much like an overhead disconnect switch.Alternatively 200 amp Solid Links are available.
Ratings&Specifications
Standard SPI cutouts have maximum design voltage ratings to simplify the choice of cutouts.There are no restrictions to grounded star,ungrounded star or delta systems having maximum operating voltages equal to,or less than the cutout maximum design rating.In each voltage class,these are continuous current ratings of 100A using fuse links and 200A using a solid disconnect link.
1)The fuse should be installed tightly when the melt tension (the fuse body is about 24.5N of the tension), otherwise easily lead to contact heat.
2)Fuse installed in the crossarm should be solid and reliable, can not have any shaking or shaking phenomenon.
3) The melting tube should have an angle of 25 ° ± 2 °, so that the fuse melt the fuse tube to rely on its own weight quickly fall.
4) Fuse should be installed in the vertical distance from the ground of not less than 4m on the cross arm, if installed in the distribution transformer above, with the distribution of the outermost contours to maintain a horizontal distance of 0.5m above, in case of melting Causing other accidents.
5) The length of the fuse tube should be adjusted to moderate, requiring the closure mouth after the closuring can be more than two-thirds of the contact length, so as to avoid the occurrence of self-drop in the operation of the malfunction, To prevent the fuse is melt while the fuse tube can not fall in time.
6) The melt used must be the standard product of the regular manufacturer, and has a certain mechanical strength, the general requirements of the melt can withstand at least more than 147N of tension.
7) 10kV drop fuse installed in the outdoors, requiring interphase distance greater than 70cm.
