Porcelain Pin Insulator for High Voltage (56-2)

Porcelain Pin Insulator for High Voltage (56-2)
Price: US $ 3.75-5.75/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10000/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Prod Model: 56-2
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Porcelian Insulator: Pin Insulator
Structure: Pin Insulator
Material: Porcelain
Application: High-voltage
Type: ANSI
Brand: Refine
Color: Brown

Product Description


Type: Pin Insulator
Material: Porcelain
Application: Insulation for High Voltage Lines
Standard: ANSI
Color: Brown or Light Grey

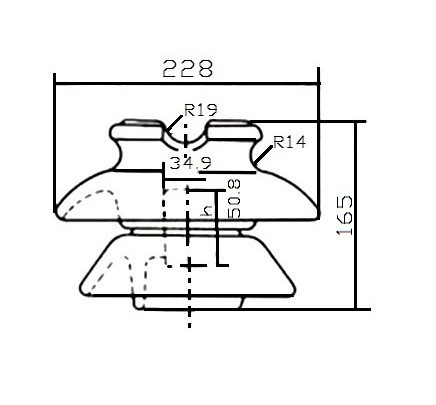

Dimension Drawing

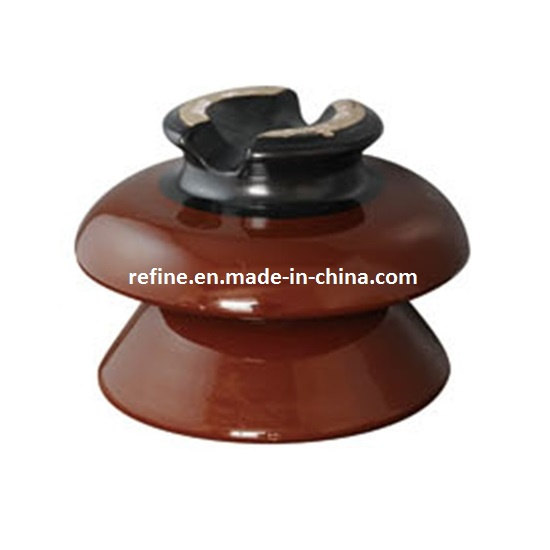

Product Picture
Standard Technical Particulars
ANSI Class 56-2
Creepage Distance (mm) 432
Min Pin Length (mm) 178
Leakage Distance   in 17
Dry Arcing Distance  in 8
Low Frequency Voltage (kV) Dry Flashover(kV) 110
Wet Flashover (kV) 70
Puncture 145
Critical Impulse Flashover Voltage Positive (kV) 175
Negative (kV) 225
Radio Influece Voltage Test Voltage to ground (kV) 22
Maximum RIV at 1000kHz (μV) Plain 12000
Radio Freed 100
Cantilever Failing Load (lb) 3000
Cantilever Failing Load (kN) 13.2
