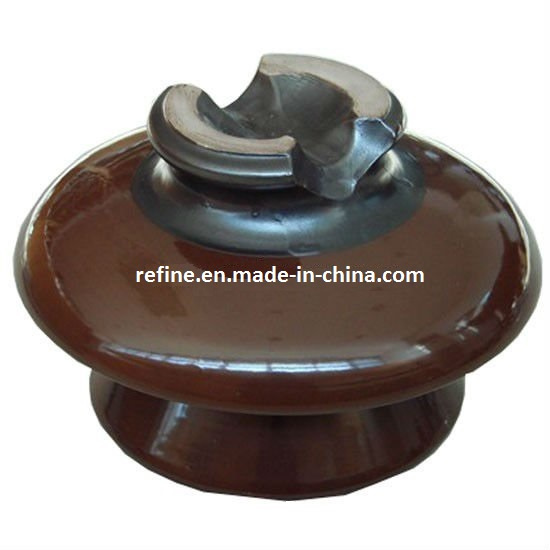

Porcelain Pin Insulator for High Voltage (56-3)

Porcelain Pin Insulator for High Voltage (56-3)
Price: US $ 3.75-5.75/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10000/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Prod Model: 56-3
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pin Insulator: High Voltage
Structure: Pin Insulator
Material: Porcelain
Application: High-voltage
Type: ANSI

Product Description

Type: Pin Insulator
Material: Porcelain
Application: Insulation for High Voltage Lines
Standard: ANSI
Color: Brown or Light Grey

Dimension Drawing
Product Picture
Standard Technical Particulars
ANSI Class 56-3
Creepage Distance (mm) /
Min Pin Length (mm) /
Leakage Distance   in 21
Dry Arcing Distance  in 9
Low Frequency Voltage (kV) Dry Flashover(kV) 125
Wet Flashover (kV) 80
Puncture 165
Critical Impulse Flashover Voltage Positive (kV) 200
Negative (kV) 265
Radio Influece Voltage Test Voltage to ground (kV) 30
Maximum RIV at 1000kHz (μV) Plain 16000
Radio Freed 200
Cantilever Failing Load (lb) 3000
