Porcelain Pin Insulators with BS Standard Approved for 11kv
| Price: |
US $ 3/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
11kv/33kv/36kv |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
2.3kg |
| Application: |
High-voltage |
| Material: |
Porcelain |
| Structure: |
Pin Insulator |
| Type: |
Pin Insulators(BS Standard Type) |
| Color: |
White or Brown |
| Brand: |
Cie or OEM |
Product Description
1. Name: Porcelain/Ceramic Pin BS Standard Insulators for 11KV/33KV/36KV
2. Specification: 11kv/33kv/36kv

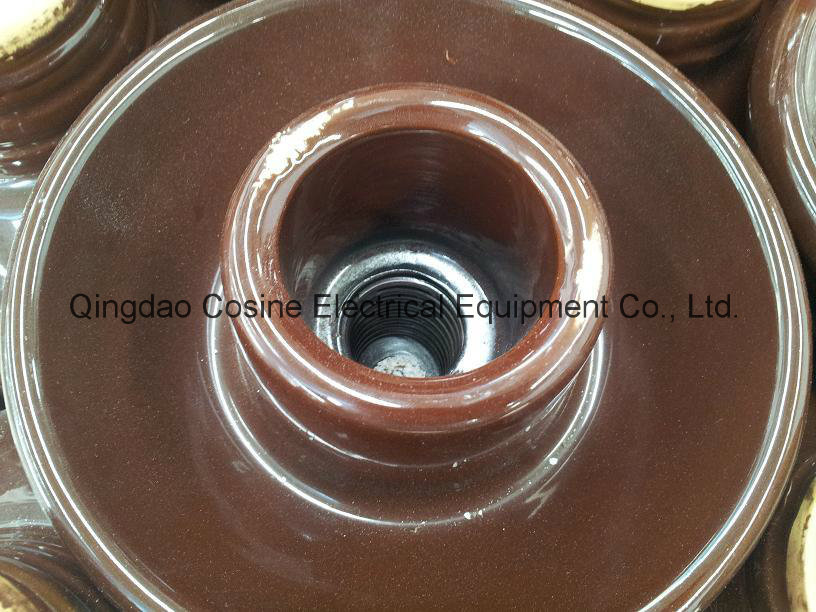

These pin type insulators are furnished with cemented zinc thimbles designed to fit the small or large steel head pins specified in BS 137, Part 2.
3. Style: British Standard Type Pin Insulators
4. Standard: Comply with the BS Standard
5. Colour: The glaze colors of the insulators are Brown or light gray or meet client`s requirment

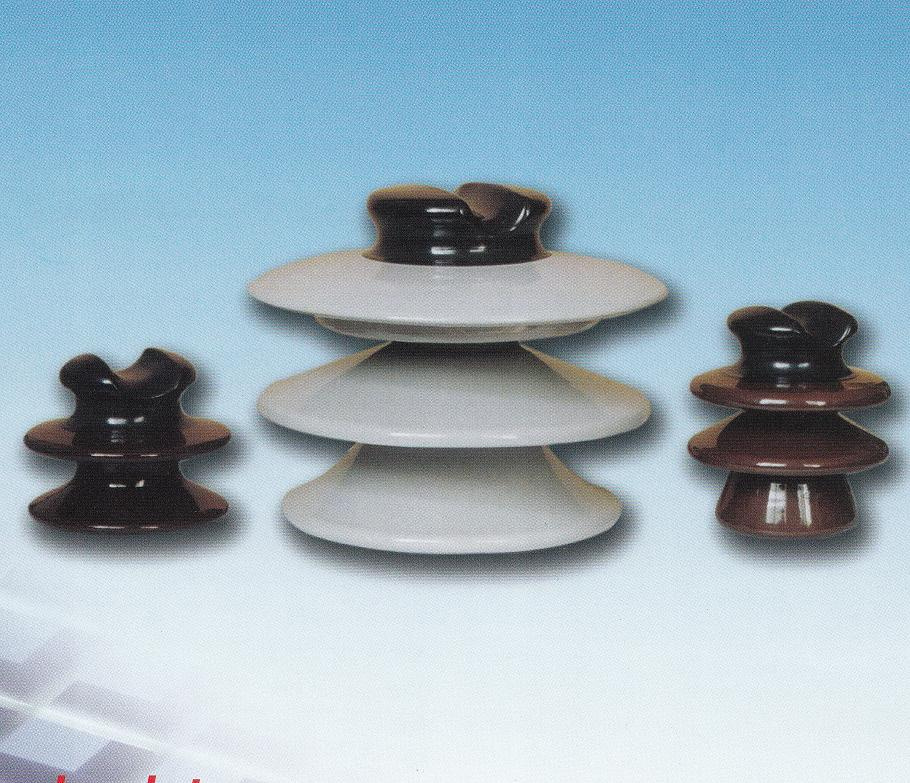

Product as following:
Technology Data as following:| Fig.No. | 1 | 2 | 3 |
| Voltage Class | 11kv | 11kv | 11kv |
Dimension,mm
| R1 | 11 | 25 | 25 |
| R2 | 11 | 14 | 14 |
| d | 78 | 78 | 78 |
| D | 159 | 159 | 152 |
| H | 133 | 133 | 166 |
| Creepage Distance,mm | 235 | 235 | 320 |
| Cantilever Strength,kN | 10 | 10 | 10 |
| Power Frequency Withstand Voltage,Wet,kV | 45 | 45 | 50 |
| Impulse Withstand Voltage,kV | 95 | 95 | 110 |
| Power Frequency Puncture Voltage,kV | 130 | 130 | 130 |
| Net Weight,Approx.,kg | 2.3 | 2.3 | 2.5 |
More Details as following:
For more about 11kv/33kv/36kv BS standard pin insulator or British Standard Type Pin Insulators with Zinc Thimbles or ANSI STANDARD PIN INSULATOR other insulators SUC AS POLYMER INSULATOR, GLASS INSULATOR, pls contact us freely,
Company Profile:

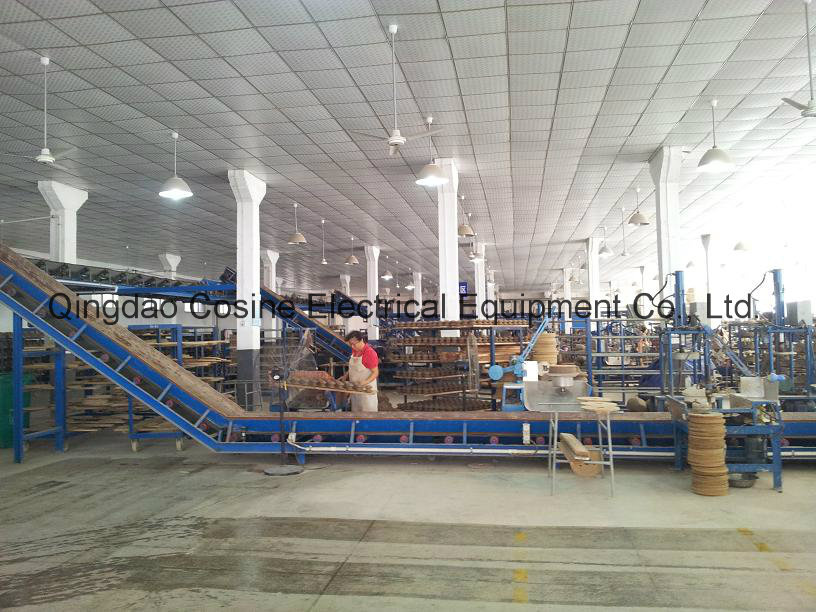

QINGDAO COSINE electrical equipment specializes in supplying insulator and pole line hardware. With high speed of power construction in China and oversea country, QINGDAO COSINE has grown into a leader of exporting of insulator in China.
Our products range from10KV-500KV polymer insulator, 40KN-420KN porcelain insulator and various kinds' pole line hardware. All the insulators have been produced by modern equipment, For example 500KV polymer insulator has been produced by high volume injection machine, which can finish two pieces 500KV at one time. Mention to the porcelain insulator, the vacuum pug mill has been imported from Germany in order control the quality from blank.| Product Range | 10KV-500KV polymer insulator, 40KN-420KN porcelain insulator,glass insulator and various kinds' pole line hardware |
| Fitting Mainly Process | (1)Drawing
(2)Mould making
(3)Smelting
(4)casting
(5)Annealing
(6)Hot-DIP galvanized
(7)Machining
(8)Inspecting |
| Produce Equipment | Friction Screw Press Series,CNC Lathe,Machinning Center,CNC Milling Machine,Bentch Drilling,etc |
| Inspection Equipment | Metallurgical Analysis,Tensile Strength Tester,Hadress Tester,Altimeter,Micrometer,Chemical Component Analysis,etc |
| Surface Treatment | Heat Treatment,Polishing,Shot Blasting,Painting,Electro-Plating,Chemical Plating,etc |
| Galvanization | hot dip galvanizing or electro plating |
| Insulator | Pocerlain, composite, glass, silicon rubber, fibreglass
- Stay insulators
- Reel insulators
- Pin type insulators
- Shackle insulators
- Toughened glass disc insulators
- Suspension insulators
- Strain insulators
- Line post insulators
- Station post insulators |
We pay more attention to the product quality all time. All the insulators have been tested 100% strictly by IEC Standard or ANSI Standard. We ensure the rate of qualified Production up to 100% before delivery. Base on good quality and service, our products are popular in USA, UK, Vietnam, Italy, Russia, Greece, Argentina and Chile. In order to keep good quality, we have got ISO9001: 2008 certificate.
Product Details:

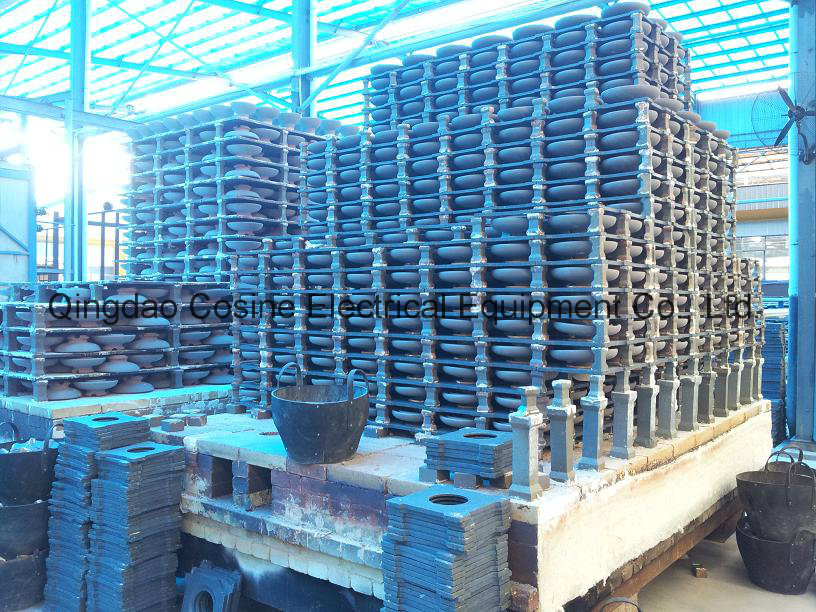

WareHouse:
Excellent service attitude, fast reaction speed, on-time delivery, consciousness of responsibility and flexibility are what we are practicing from the very beginning.The competitive price,the good quality,the punctual delivery.All of these are offered by us.Hope you will interest in our products and Warmly welcome to cooperate with you to make mutual benefits. Looking forward to your inquiry!
Experience: 16 years producing experience from 1999-2015 for insulator and line hardware
Product: Composite insulator, glass insulator and ceramic insulator
SML: From 40KN to 550KN From AC insulator to DC insulator.
Package: Exported free-fumigation
Quality control: Can do all the test according to IEC
Quality control System: Exactly according to ISO9001: 2000
Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.
Engineer term: Have 12 engineers to reply all your questions and offer professional service.
Sale term: All the sale man have been trained every month. And offer best service.
