Porcelain Stay Insulator

Name: Porcelain Stay Insulator
Brand: all-electronics-online.com
SKU: 728861315
Availability: InStock
Rating: 4.8 (55 reviews)

Price:	US $ 0.15-0.25/Piece
Trade Terms:	FOB,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	54-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Creepage Distance: 41mm:	Height:89mm
Unit Weight: 0.5kg:	Mechnical Failing Load: 44kn
Application:	Low-voltage
Material:	Porcelain
Structure:	Stay Insulator
Type:	ANSI

Product Description

Type: Stay insulator/Strain Insulator

Material: Porcelain

Application: Insulation for Low Voltage lines

Standard: ANSI

Color: Brown or Light Grey

Standard Technical Particulars
Mechanical Failing Load: 44KN

Power Frequency Flashover Voltage (Dry): 25kV

Power Frequency Flashover Voltage (Wet): 12KV

Certification: CE & ISO9001

OEM Service: Available

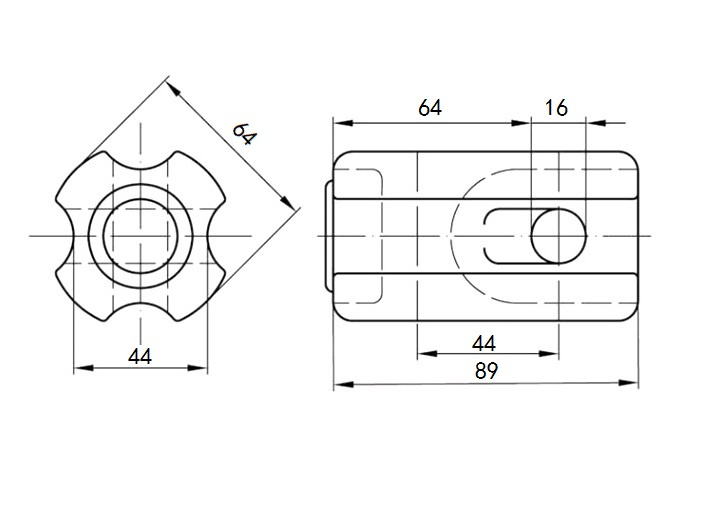

Dimension Drawing

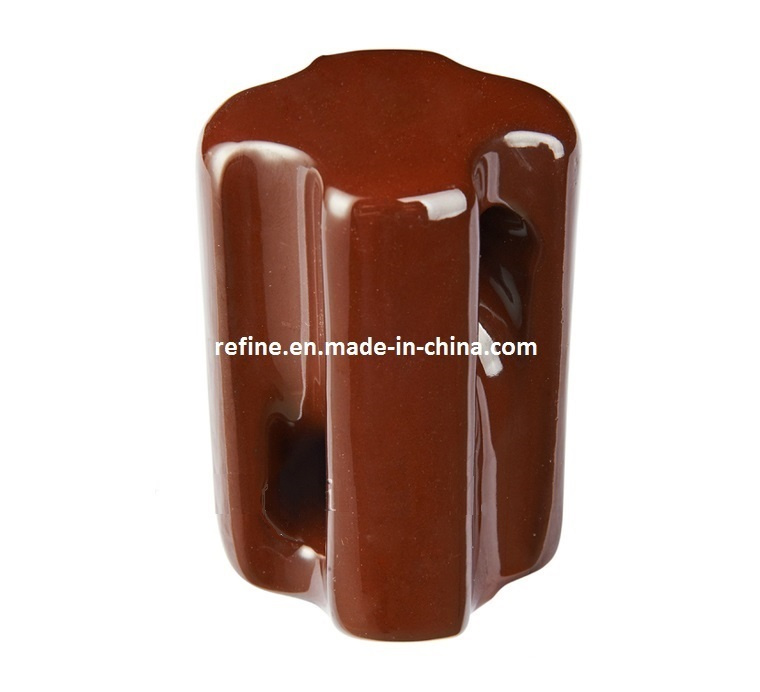

Product Picture

Why Choose us?

We are professional suppliers for different types of insulators, our company have the following advantages:

1. We have our own factory which has more than 20 years experience in porcelain products.

2. We have a trained team of engineers and professional staff.

3. We have excellent quality products with strict quality control process.

4. We have competitive factory direct price.

5. We can deliver the goods in time and offer you the best service before and after sales.

Feel free to contact us for more details.

Type		54-1
Creepage Distance (mm)		41
Main Dimensions (mm)	H	89
	h	44
	h₁	64
	D	64
	d	44
	d₁	16
Mechanical Failing Load (KN)		44
Power Frequency Flashover Voltage	Dry (kV)	25
Power Frequency Flashover Voltage	Wet (kV)	12
Application Standard		ANSI
