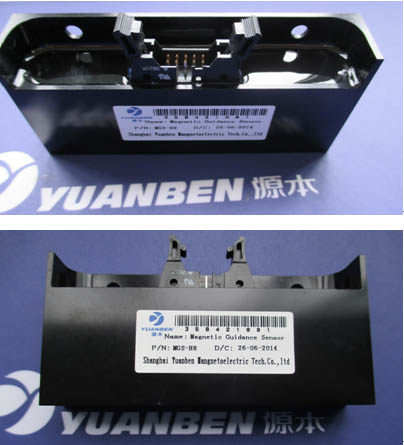

Position Sensor Magnetic Guidance Sensor Mgs-H8 for Agv

Name: Position Sensor Magnetic Guidance Sensor Mgs-H8 for Agv
Brand: all-electronics-online.com
SKU: 724300675
Availability: InStock
Rating: 4.7 (61 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB
Min Order:	50/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MGS-H8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operating Temperature:	-10c-+50c
Operation Humidity:	35%-95%Rh (No Condensation)
Storage Temperature:	-30c-+80c
Target:	Mgt-50 -25 Series Magneticguide Tape
Operation Air Gap:	30-40mm (with Mgt-50-25)
Sensitivity:	N-Pole;6mt and Over/ S-Pole; 6mt and Over
Element:	8 Bits
Pitch:	10mm at Even Intervals
Logic:	Normally Open
Circuit:	NPN Open Collector (DC30V, 50mA Max.)

Product Description

Magnetic Tape Guidance AGV's route can be constructed in various locations, since the magnetic tape route can be constructed where the floor can not be carved. Modification of a magnetic tape route can be done easily and the route is durable against dust, water and light. MGS-H8 Magnetic Guide sensor detects the slight magnetic flux from a magnetic guide tape at operation distance 20mm (20mm to 30mm) and generates multiple switching signals or deviation voltage.

Our Corp.Specializes in studying and manufacturing magnetoelectric sensors, of the ability producing the following series with large scale.

Temperature Switches, PT100, PT1000 sensor, transmitter, and preventing cooling switches, pressure switches and sensors, liquid level switches, flow switches and turbin flow sensor, level Transmitter, position switches, proximity switches, gear tooth speed sensor, magnetic encoder, rotary sensors are marching to market.Our products can be widely applied to automobile engine, automobile-conditioner, household conditioner refrigerator, Electro-heater for appliance, solar boiler, for watching out and controlling temperature, liquid level, pressure and fluid flow parameters.

Products are matched with these famous domestic enterprises, such as Shanghai Carrier.A.O.Smith, Pentair, XinFei (Henan) Guangzhou refrigerator, Midea, , Meiling, Roshita, Hitachi of Japen etc.At the same time, we provide the OEM service.

Our products are CCC, VDE, ETL, CE, CQC, EX approved and have passed through the ISO 9001-2000 certified.

Our whole staff carries out the following operations and managing ideal:Credit, honest and meeting customer's demand.All employees are working hard on your and our business with highly attitude!
