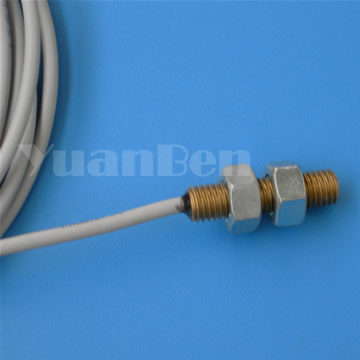

Proximity Switches of Mps-B-18-4000

Name: Proximity Switches of Mps-B-18-4000
Brand: all-electronics-online.com
SKU: 723939365
Availability: InStock
Rating: 4.6 (131 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPS-056

Product Description

Design Features Adjustable in conjunction with Magnet Move to target via lock nuts and through chassis mounting Sealed via potting Shunt or direct magnet operation Multiple Mode of Operation Threaded Barrel Mounted Normally Open Stainless Steel Material Housing Overall length 35mm Threaded Area Fitted with 2 lock nuts Typical Applications:Door Interlocks, Hook Switches, Security Systems, Safety Interlocks, Position Indication. Features Adjustable in conjunction with Magnet Move to target via lock nuts and through chassis mounting Sealed via potting Shunt or direct magnet operation Multiple Mode of Operation Threaded Barrel Mounted Normally Open Stainless Steel Material Housing Overall length 35mm Threaded Area Fitted with 2 lock nuts Typical Applications:Door Interlocks, Hook Switches, Security Systems, Safety Interlocks, Position Indication. Specifications Mounting: Threaded with two nut Material: Stainless Steel SUS304 Contact Form: Form A - SPST Contact Material: Ruthenium Maximum Switching Volts: 250 V ac or 200V dc Maximum Switching Current: 1.0 A Electrical Switching: SPST Normally Open Maximum Power: 15 Watts Housing Temperature Range: 130 C Housing Material: SUS304 Connection Type: Stripped Cables Cable Type: 2 x 24AWG, UL2464 wire length 0.5M Operating Temperature: 120 C Actuation Method: Proximity Mounting Shock: 50g for 11ms duration Mounting Vibration: 35g up to 500Hz Operate Distance: 4mm Magnetic Approach: End Operate

Our Corp.Specializes in studying and manufacturing magnetoelectric sensors, of the ability producing the following series with large scale.

Temperature Switches, PT100, PT1000 sensor, transmitter, and preventing cooling switches, pressure switches and sensors, liquid level switches, flow switches and turbin flow sensor, level Transmitter, position switches, proximity switches, gear tooth speed sensor, magnetic encoder, rotary sensors are marching to market.Our products can be widely applied to automobile engine, automobile-conditioner, household conditioner refrigerator, Electro-heater for appliance, solar boiler, for watching out and controlling temperature, liquid level, pressure and fluid flow parameters.

Products are matched with these famous domestic enterprises, such as Shanghai Carrier.A.O.Smith, Pentair, XinFei (Henan) Guangzhou refrigerator, Midea, , Meiling, Roshita, Hitachi of Japen etc.At the same time, we provide the OEM service.

Our products are CCC, VDE, ETL, CE, CQC, EX approved and have passed through the ISO 9001-2000 certified.

Our whole staff carries out the following operations and managing ideal:Credit, honest and meeting customer's demand.All employees are working hard on your and our business with highly attitude!
