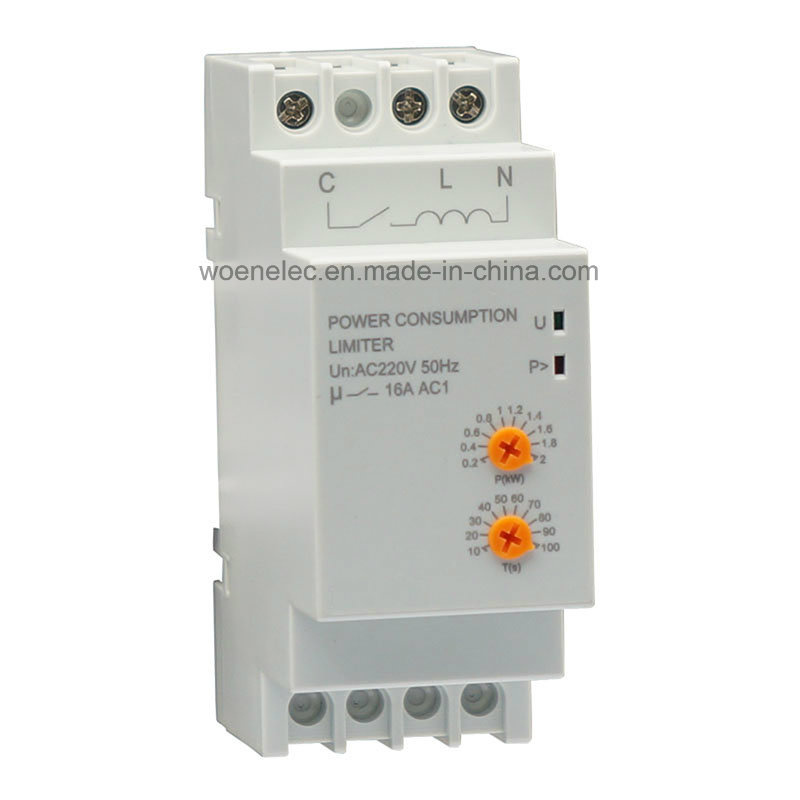

Power Absorption Limiter Relay

Name: Power Absorption Limiter Relay
Brand: all-electronics-online.com
SKU: 714326702
Availability: InStock
Rating: 4.4 (141 reviews)

Price:	US $ 8/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLR-1

Product Description

Introduction
power consumption limiter is used to automatic power supply switch off in a supervised circuit, when the output (load) power value has been exceeded. The power value can be adjusted in the range by means of potentiometers.

Features
1. Microprocessor control technology
2. Two modules, 36mm wide
3. Power threshold adjustable range 0.2-2kW
4. Reset delay 10s-100s adjustable
5. Maximum output current 16A
6. LED indication for power supply and relay status
7. Din-rail mounting

Technical data

Supply terminals	L,N
Rated supply voltage	AC 220V
Rated frequency	50Hz
Current actuation threshold	50Hz
Hysteresis	2%
Trip delay	1.5s
Reset delay	10-100s
Output contacts	1NO
Current rating	16A/250V AC1
Insulation voltage	250V
Power treshold	0.2-2kW
Mechanical life	10000000
Electrical life	1000000
Protection degree	IP20
Pollution degree	3
Altitude	≤2000m
Mounting	TH-35 Rail

Founded by engineers who worked in the field of electronic, mechanical and industrial design for over 10 several years, Reletek is a professional manufacturer of electronic modular devices, which bring new possibilities for home and office controlling, monitoring and security, as well as for industrial process control.

Development and modern technology are the pillars of our work, which is highly appreciated by our customers, because all products and services can be customized according to individual requirements - you get not just a product, but a long-term solution.

Thanks to high quality production and service on customers, Reletek had partners from Spain, Australia, Russia, Ukraine, Algeria and Egypt etc.
