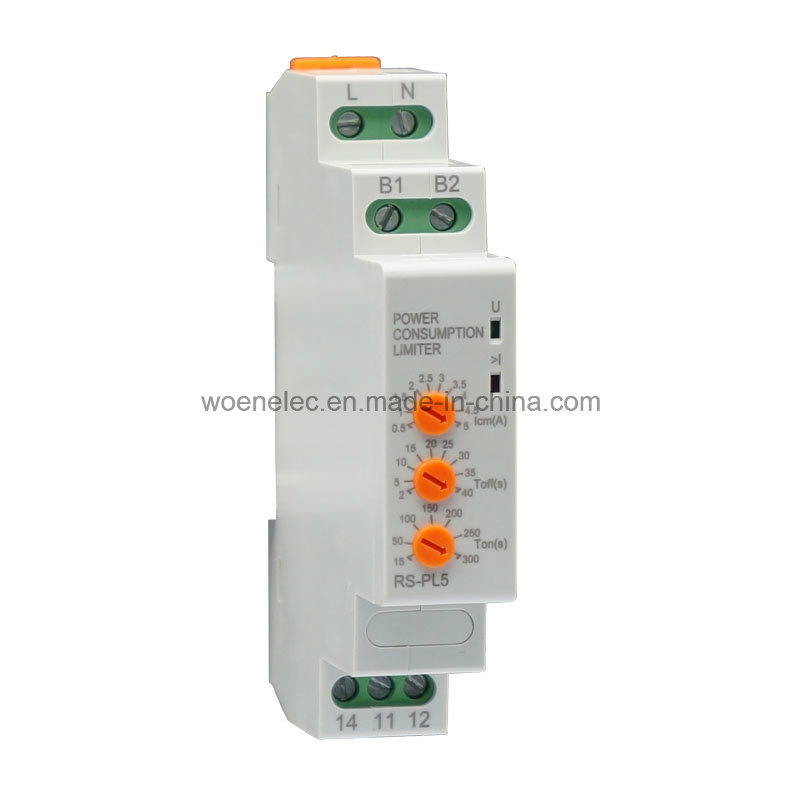

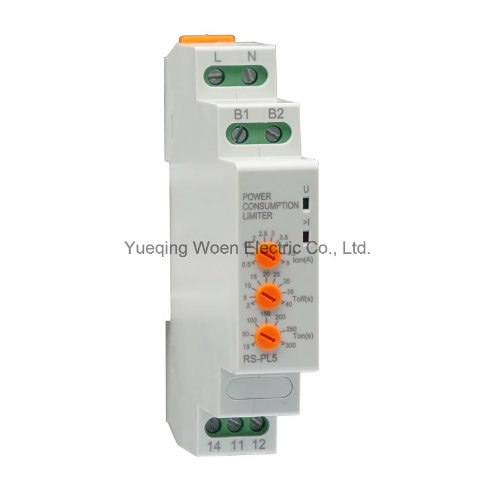

Power Consumption Limiter

Power Consumption Limiter
Price: US $ 8/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: PLR-5

Product Description


Introduction

power consumption limiter is used to automatic power supply switch off in a supervised circuit, when the output (load) power value has been exceeded. The power value can be adjusted in the range  by means of potentiometers.

Features
1. Microprocessor control technology
2. One modules, 18mm wide
3. Current actuation threshold adjustable
4. Trip and reset/start delay adjustable
5. Overcurrent,overvoltage and undervoltage protection
6. LED indication for power supply and relay status
7. Din-rail mounting


Technical data

Supply terminalsL,N
Rated supply voltageAC 220V
Operating range AC 150-275V
Current actuation threshold0.5A-5A
Hysteresis3%
Start-up delay15s-300s
Output contact1C/O
Current rating8A/250V AC1
Contacts capacity AC-15: 2A
Insulation voltage250V
Max. fuse ratingsFast-acting 5A
Mechanical life10000000
Electrical life1000000
Protection degreeIP20
Pollution degree3
Altitude≤2000m
MountingTH-35 Rail
Founded by engineers who worked in the field of electronic, mechanical and industrial design for over 10 several years, Reletek is a professional manufacturer of electronic modular devices, which bring new possibilities for home and office controlling, monitoring and security, as well as for industrial process control.

Development and modern technology are the pillars of our work, which is highly appreciated by our customers, because all products and services can be customized according to individual requirements - you get not just a product, but a long-term solution.

Thanks to high quality production and service on customers, Reletek had partners from Spain, Australia, Russia, Ukraine, Algeria and Egypt etc.
