Power Cord (H05VVH2-F)

Name: Power Cord (H05VVH2-F)
Brand: all-electronics-online.com
SKU: 709317265
Availability: InStock
Rating: 4.7 (131 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR
Min Order:	30000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	H05VVH2-F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	Low and Medium Voltage Cable
Insulation Material:	PVC
Current:	DC & AC
Application:	Electrical Appliance
Certification:	VDE

Product Description

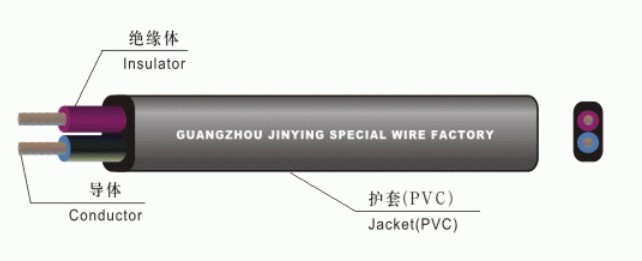

Power cable
Model: H05VVH2-F

Techincal data

File NO: 40022725
Approval: VDE
Standard: IEC227, VDE0281
Rated Voltage: 300V / 500V
Temperature Range: 70 degree
Conductor: Copper twisted wire
Insulator: PVC

Application:
Application in Small Electrical Appliances.

Type	NO of Conductor	Conductor		Insulator		Jacket		Amp Rating
Type	NO of Conductor	Sectional Area (mm2)	Construction (NO/mm)	Thickness (mm)	Diameter (mm)	Thickness (mm)	Diameter (mm)	Amp Rating
H05VVH2-F	2	0.75	30/0.18	0.60	2.35	0.80	4.10x6.50	6A
H05VVH2-F	2	1.00	40/0.18	0.60	2.35	0.80	4.30x6.80	10A

Senhall Ltd (Guangzhou Tuoyuan Wire Make Limited) is manufacturing Heat-resistant wire for home appliances and underfloor heating cable.

Senhall is currently the leading manufacturer of High-temperature wire for the automotive and appliance wire harness industries in North America. Our wires are mainly used by home appliances in the world, including SANYO, Meidia, Toyo, Leoni, etc...We have been in the business of manufacturing heat-resistance wire since 1988 and have sold worldwide. Our wire are currently deployed in the following countries: Sweden, Denmark, Germany, Singapore, South Africa, United Kingdom, Canada, Mexico, Honduras, Brazil, Turkey, India, Tailand, Argentina and so on

I understand that your company deals with electronics manufacturing and during the process I am sure that your manufacturing plant use some our heat-resistant wires to your appliances components That is why I invite you personally to write this email to you. We offer a reliable and cost-effective products for your appliances.

If you have any questions or would like a quotation, please do not hesitate to contact me.

In the meanwhile, I thank you for your time.
