Power Cord (SVT /SVTO)

Name: Power Cord (SVT /SVTO)
Brand: all-electronics-online.com
SKU: 709315355
Availability: InStock
Rating: 4.9 (105 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR
Min Order:	30000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SVT /SVTO
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	Low and Medium Voltage Cable
Insulation Material:	PVC
Current:	DC & AC
Application:	Electrical Appliance
Certification:	UL

Product Description

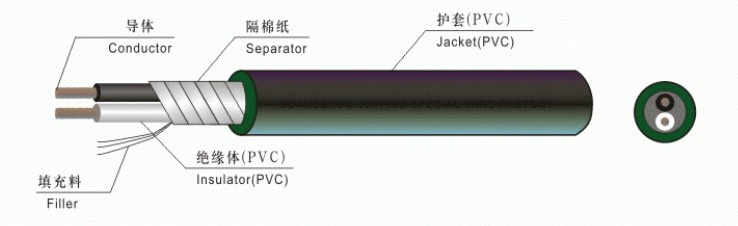

Power cable
Model: SVT /SVTO

Techincal data

File NO: E313195
Approval: UL
Standard: UL62
Rated Voltage: 300V
Temperature Range: 60 degree to 105 degree
Conductor: Copper twisted wire
Insulator: PVC
Flammability Test by UL /cUL VW-1 insulator.

Application:
Power supply cord for motor operated tools.

Type	NO of Conductor	Conductor			Insulator		Jacket		Amp Rating
Type	NO of Conductor	AWG	Sectional Area (mm2)	Construction (NO/mm)	Thickness (mm)	Diameter (mm)	Thickness (mm)	Diameter (mm)	Amp Rating
SVT SVTO	2	18	0.82	32/0.18	0.38	2.15	0.76	6.05	10A
		17	1.01	40/0.18	0.38	2.30	0.76	6.35	10A
		16	1.31	50/0.18	0.38	2.45	0.76	6.65	13A
	3	18	0.82	32/0.18	0.38	2.15	0.76	6.35	10A
		17	1.01	40/0.18	0.38	2.30	0.76	6.70	10A
		16	1.31	50/0.18	0.38	2.45	0.76	7.00	13A

Senhall Ltd (Guangzhou Tuoyuan Wire Make Limited) is manufacturing Heat-resistant wire for home appliances and underfloor heating cable.

Senhall is currently the leading manufacturer of High-temperature wire for the automotive and appliance wire harness industries in North America. Our wires are mainly used by home appliances in the world, including SANYO, Meidia, Toyo, Leoni, etc...We have been in the business of manufacturing heat-resistance wire since 1988 and have sold worldwide. Our wire are currently deployed in the following countries: Sweden, Denmark, Germany, Singapore, South Africa, United Kingdom, Canada, Mexico, Honduras, Brazil, Turkey, India, Tailand, Argentina and so on

I understand that your company deals with electronics manufacturing and during the process I am sure that your manufacturing plant use some our heat-resistant wires to your appliances components That is why I invite you personally to write this email to you. We offer a reliable and cost-effective products for your appliances.

If you have any questions or would like a quotation, please do not hesitate to contact me.

In the meanwhile, I thank you for your time.
