Power Distribution Aluminium Urd Cable

Prod Model:	ABC Cable
Insulation Colour:	Black
Insulation:	PVC/PE/XLPE
Factory Area:	40000m2
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	UL
Sheath Material:	None
Wire Core Material:	Aluminium
Model:	Jkv
Brand:	Huatong

Product Description

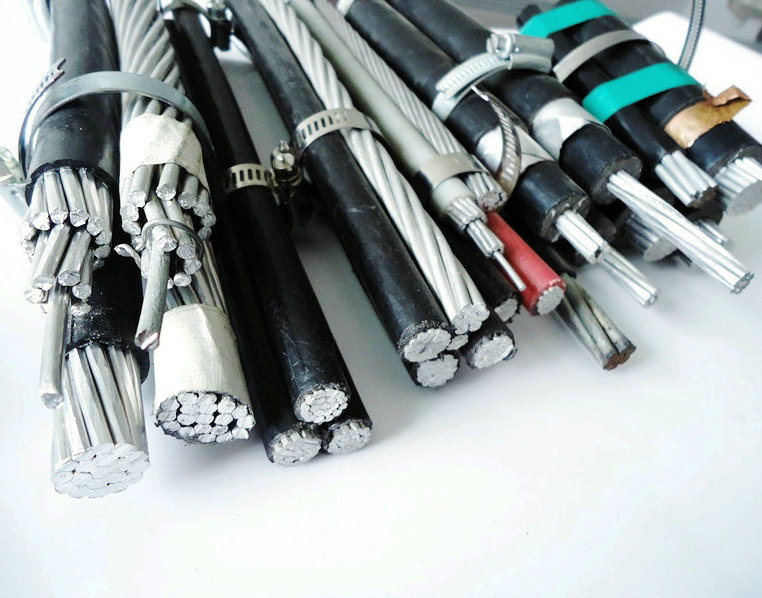

Aluminium Secondary UD Cable
Aluminium Conductors. Polythylene or Crosslinked Polyethylene Insulation.
ABC Cables Applications:
Used to supply 3 phase power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.
ABC Cables Construction:
Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or XLP crosslinked polyethylene. Neutral messengers are concentrically stranded 6201, AAC, or ACSR.One conductor is manufactured with an extruded ridge for phase identification.
ABC Cables Standards:
1.B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
2.B-231 Aluminum conductors, Concentric-Lay-Stranded.
3.B-232 Aluminum Conductors, Concentric- Lay-Stranded, Coated Steel Reinforced (ACSR).
4.B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors.
5.B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
6.Quadruplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.
ABC Cables Using Properties
1.Rated Voltage:0.6/1kV
2.Cable installation temperature not less than -20°C
3.Max. temperature of cable at short circuit(The max. duration does not exceed 5 minutes)
   For XLPE insulation is 250°C.
   For HDPE insulation is 150 °C.
4.The Max. bending radius of cable shall not be less than 20Dmm(D overall diameter of cable)
Type of ABC Cable
1.Duplex Service Drop:To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75 maximum.
2.Triplex Service Drop: To supply power from the ulility`s lines to the consumer`s weatherhead. For service at 600 volts or less(phase to phase ) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation .
3.Quadruplex Service Drop: Used to supply 3 phase power , usually from a pole-mounted transformer to the use`s servic head where connection to the service entance cable is made . To be used at voltages of 600 volts or less phase to phase and at conductor temperature not to exceed 75 for PE insulated conductors or 90 for XLPE insulated conductors.

ASTM B-230, B-231 and ICEA S-66-524
UL Standard 854 for type USE
Federal Specification JC-30B NEC

Code Name	Phase Conductor			Neutral			Single Phase Conductor(in)	Outside diameter(in)	Weight Per 1000ft (lbls)	Ampacity
	Size AWG	Strand	Insulation Thickness (mls)	Size AWG	Strand	Insulation Thickness (mls)				Direct Burial	In Duct
Tulsa	4	7/w	60	4	7/w	60	.345	.833	258	119	85
Dyke	2	7/w	60	4	7/w	60	.403	.938	346	153	115
Wittenberg	2	7/w	60	2	7/w	60	.403	.973	375	153	115
Notre Dame	1/0	19/w	80	2	7/w	60	.522	1.188	541	198	150
Purdue	1/0	19/w	80	1/0	19/w	80	.522	1.260	596	198	150
Syracuse	2/0	19/w	80	1/0	19/w	80	.566	1.316	664	225	170
Lafayette	2/0	19/w	80	2/0	19/w	80	.566	1.367	720	225	170
Swarthmore	3/0	19/w	80	1/0	19/w	80	.616	1.430	805	250	195
Davidson	3/0	19/w	80	3/0	19/w	80	.616	1.487	874	250	195
Wake Forest	4/0	19/w	80	2/0	19/w	80	.672	1.560	979	290	225
Earlham	4/0	19/w	80	4/0	19/w	80	.672	1.623	1066	290	225
Slippery Rock	350	37/w	95	4/0	19/w	80	.851	1.945	1544	385	305
Wofford	500	37/w	95	350	37/w	95	.851	2.348	2174	467	420
Windham	750	61/w	110	500	37/w	95	.979	2.850	2542	615	492
