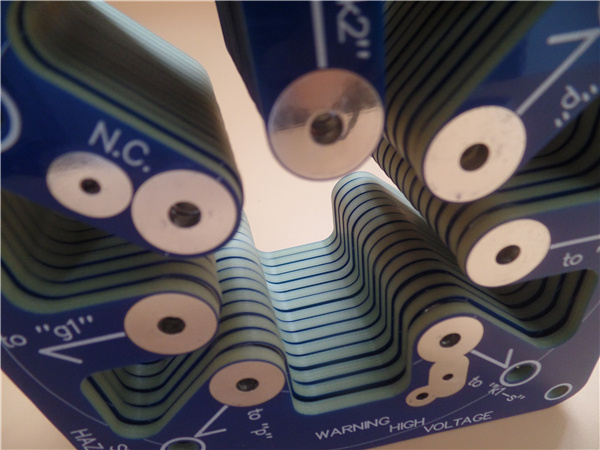

Power Distribution PCB on 3.2mm Fr-4 with 4 Oz Copper
| Price: |
US $ 0.79/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-998-V9.98 |
| Board Thick: |
3.20mm |
| Surface Finish: |
HASL Lead Free |
| Out Layer Copper: |
140 Um (4 Oz) |
| Soldermask Color: |
Blue |
| Silkscreen Color: |
White |
| Mininum Trace (Mil): |
15.8 Mil |
| Minimum Gap(Mil): |
15.8 Mil |
| Via: |
Plated Through Hole(Pth) |
| RoHS Required: |
Yes |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
1.1 General description This is a type of heavy copper PCB built on FR-4 substrate with Tg 150°C for the application
of Solar power converters . It's 3.2 mm thick with white silkscreen(Taiyo) on blue solder mask
(Kuangshun) and immersion gold on pads. The base material is from ITEQ supplying 1 up PCB
per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 boards
are packed for shipment. 1.2 Features and benifits
a. Low Z-CTE and excellent through hole reliability
b. Excellent wetting during component soldering and it can avoid copper corrosion.
c. Large current can pass through steadily
d. Comprehensive equipment management and maintenance and process control
e. 8000 types of PCB per month
f. 12 hours quotation
g. Prototype PCB capability1.3 Application
Power LED, Power Converters, External Power Supply, 1U Power Supply, Bipolar Power
Supply, Electronics Power Supply, Switched Mode Power Supplies, Inverter DC AC, AC DC
Converters, AC DC Inverter
1.4 Parameter and data sheet| Number of Layers | 2 Layers |
| Board Type | Double Sided PCB |
| Board Thickness | 3.20 mm +/-10% |
| Board Size | 120 x 120mm=1UP |
| Board Material | FR-4 IT158 |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 150ºC |
| |
| PTH Cu thickness | ≥20 um (See hole wall details) |
| Inner Iayer Cu thicknes | - |
| Surface Cu thickness | 140 um (4 oz) |
| |
| Solder Mask Type and Model No. | LPSM, KSM-6189BL04/KSM-19H01 |
| Solder Mask Supplier | KUANG SHUN |
| Solder Mask Colour | Blue |
| Number of Solder Masks | 2 |
| Thickness of Solder Mask | 14 um |
| |
| Type of Silkscreen Ink | IJR-4000 MW300 |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | White |
| Number of Silkscreen | 1 |
| |
| Mininum Trace (mil) | 15.8 mil |
| Minimum Gap(mil) | 15.8 mil |
| |
| Surface Finish | HASL Lead free |
| RoHS Required | Yes |
| Warpage | 0.25% |
| |
| Thermal Shock Test | Pass, 288±5ºC,10 seconds, 3 cycles.
No delamination, no blistering. |
| Solderablity Test | Pass, 255±5ºC,5 seconds
Wetting Area Least 95% |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H
& IPC-6012C Class 2 |
| Drill table (mm) | T1: 2.500 |
| T2: 3.000 |
| T3: 4.600 |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
