Power Supply &Controller Integrated Solution for LED Strip Light

Power Supply &Controller Integrated Solution for LED Strip Light
Price: US $ 1/Piece
Trade Terms: FOB,CIF,DDP
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: P&C Integrated Solution
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LED Type: SMD 5050
LED Numbers/M: 60PCS/M
Color: Multi-Color
Life(H): 50000
Power: 72W
Emitting Color: Changeable
IP Rating: IP33
Voltage: 12V
Type: Flex LED Strip
Certification: Ce, RoHS

Product Description

Basic Info.

Model NO.: P&C Integrated Solution

Type: Flex LED Strip
LED Type: SMD 5050

IP Rating: IP33
LED Numbers/M: 60pcs/m

Voltage: 12V
Color: Multi-color

Life(h): 50000
Export Markets: Global


Additional Info.
Origin: China

HS Code: 9405409000

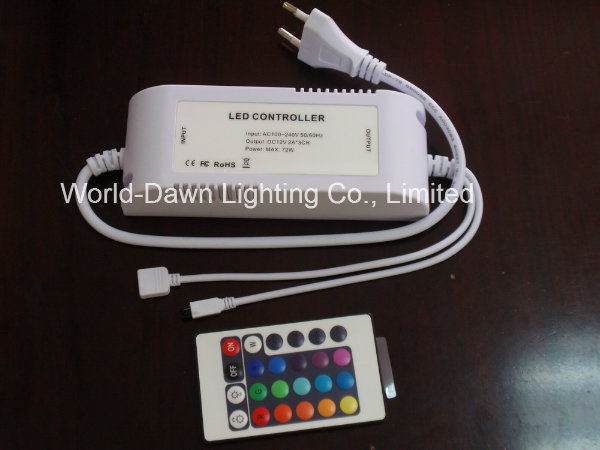

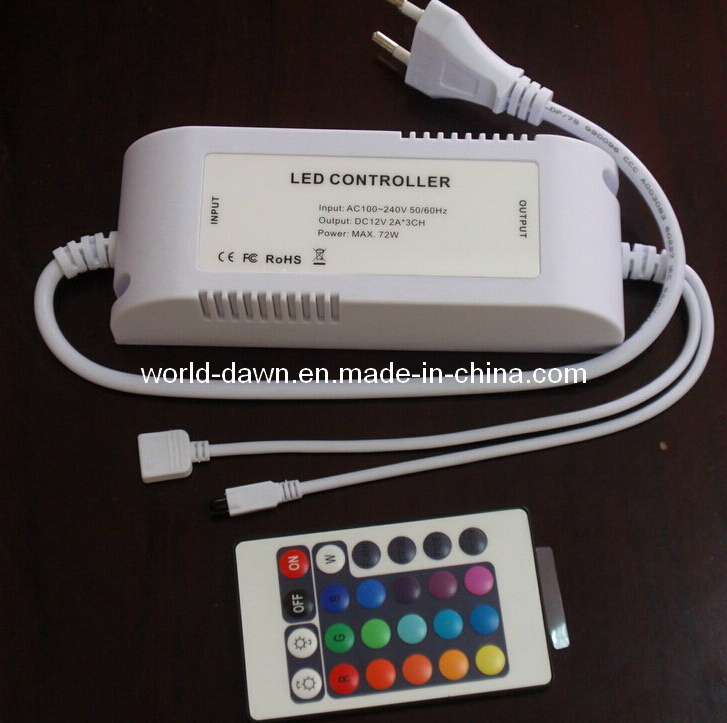

Operation Instructions of Controller
I. Specifications:
Working temperature: -20-60 degree Supply voltage: AC85~265V
Output voltage: DC12V Product size: L148× W54× H33mm
Net weight: 260g Output: Three CMOS drain- open output
Connecting Mode: Common anode Max load current: 2 A each color
II. Control Method:
Adopt IR remoter to control the led controller, which has 24 buttons, the function of each button as the table below:

Brightness +( 16 in all )Brightness-( 16 in all ) OffOn
Static redStatic greenStatic blueStatic white
Static orangeStatic pea greenStatic dark blue7 color jumpy change
Static dark yellowStatic cyanStatic brownAll fade out & fade in
Static yellowStatic light blueStatic pink7 color fade change
Static straw yellowStatic sky blueStatic purple3 base color jumpy

Direction: Press static color every time, the matching mode flicker two times before stopping, then recover the static color. When switching to four dynamic mode (7 color jumpy change, All fade out & fade in, 7 color fade change, 3 base color jumpy), the button of "Brightness +"/ "Brightness -" means the speed of light change is up/ down, there are 32 step in all.

IV. Warning:
1. Supply voltage of this product is AC85~265V, output voltage is DC12V.
2. Lead wire should be connected correctly according to colors that connecting diagram offers.
3. Warranty of this product is one year, but exclude the artificial situation of damaged or overload working.

Should you have any question, pls feel free to contact us, thanks.
