Product Description
Basic Info.
Model NO.: HX-SZ100-Touch
IP Rating: IP33
Certification: CE, EMC, RoHS
Usage: Festival, Landscaping, Commercial, Home
Export Markets: Global
Product Description

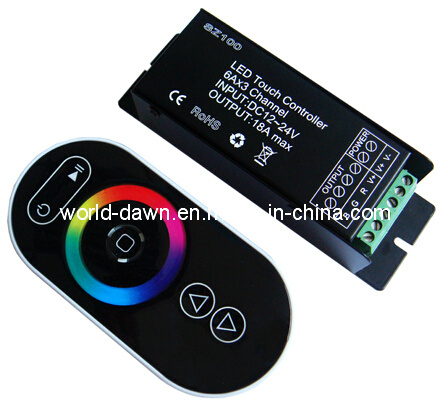

RF touch controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; It has many advantages such as touch remote control, easy connection and simplicity to use. Meanwhile, you can adjust brightness, static color choices and various dynamic changes in lighting effects through wireless touch remote control. And according to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.
Technical Parameters
Working temperature-20-60 degree
Supply voltageDC5V, 12V~24V
0utput3 channels
Connecting modecommon anode
External dimensionL127*W42*H33 (mm)
Packing sizeL135*W55*H40 (mm)
Net weight270g
Gross weight310g
Output gray256 levels (RGB each)
Output current<6A(each channel)
Output power12V: <216W, 24V: <432W
Frequency of RF remote control433.9MHz
The function of each button as below:
Name of keyInstructionRemarks
ON/OFFON or OFF in any time
PausePause or Continue
ModeThe mode will go to next, when you touch the key each time21 modes in total.
Speed/Brightness +The Speed/Brightness will add, when you touch the key each timeSpeed for dynamic modes, Brightness for static modes.
Speed/Brightness -The Speed/Brightness will subtract, when you touch the key each timeSpeed for dynamic modes, Brightness for static modes.
Color RingTouch any color which you wantIf you do not press any buttons continued 20S, color ring will be in a dormant state, want to color with the color ring, basis having any of the other five keys to activate the color ring function.
9 modes in total as below:
NoPatternsRemarks
1Static worm whiteBrightness is adjustable, speed is unadjustable
2Static cool white
3White breathSpeed is adjustable, brightness is unadjustable
4Seven-color jumpy changing
5Seven-color smooth
6Seven-color fade
7R/B crossfade
8B/G crossfade
9G/R cross fade
Notes
1. Supply voltage of this product is DC12V~24V, never connect to others or AC220V.
2. Lead wire should be connected correctly according to grade that connecting diagram offers.
3. This product is not to overload;
4. Warranty of this product is one year, but exclude the artificial situation of damaged or overload working.
Common Problems
ProblemsPossible causeSolution
1. Lamp does not light after powerPower cord is not properly connected, or there is not output switching power supplyConnect the power cord properly or replay the power
Lamp power cord is not connected or short circuitConnected lighting power cord
2. After connecting some of the load the controller does not work The connected load is too large, so that it has burned in some of the components of the controllerReplace parts of components or replace the controller.
Any question, pls feel free to contact us. Thanks.
