| Prod Model: |
YR-ABC-012 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| ABC Cable: |
Aerial Bundle Cable |
| Original Place: |
Henan, China |
| Voltage Type: |
Low Voltage |
| Standards: |
IEC61089, ASTM, DIN |
| Color: |
Black, Red, Yellow |
| Working Temperature: |
-20~90 |
| Features: |
Power Cable Characters and Aerial Cable as Well |
| Character: |
Weather-Proof, Aging-Resistant |
| Conductor Materials: |
Aluminum, Aluminum Alloy |
| Orininal Place: |
Luoyang, Henan, China |
| Type: |
Bare |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Aluminum |
| Insulation Material: |
XLPE |
| Certification: |
ISO9001 |
| Sheath Material: |
XLPE |
| Range Of Application: |
Overhead, Power Transmission Line |
| Brand: |
Dayuan |
Product Description

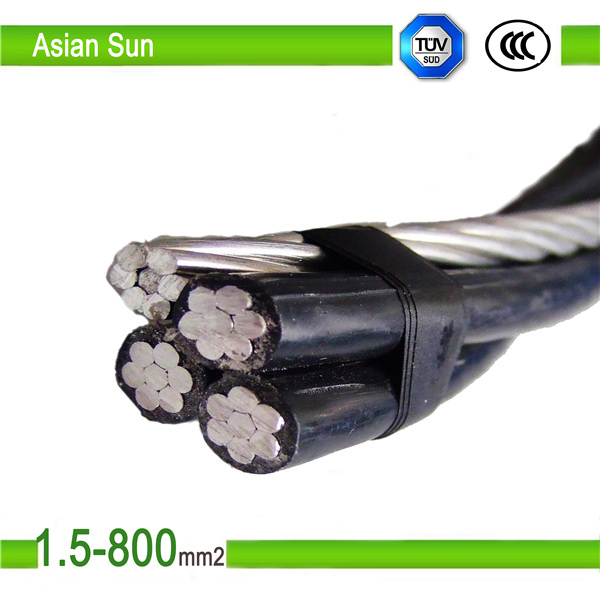

Brief description Aerial Bundle Cable (ABC Cable)
1. Aerial bundle cable consists of copper or aluminum conductor, inner shielding layer, weather-proof insulation material and outer shielding layer.
2. It has not only power-transmitting character of power cable, but strong mechanical character of aerial cable as well.
3. In comparison with bare wire, it boasts many advantages such as small span in laying the cable, high reliability and good aging-resistant character,
4. It's an cable species that city & town electric power engineering have the initiative to choose to use.
Applications of twisted abc cable
Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.
Specification of twisted abc cable
service drop cable meets or exceeds the following ASTM specifications:
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
· B-231 Aluminum Conductors, Concentric-Lay-Stranded.
· B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
· B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
· B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire
Construction of twisted abc cable
Conductors are concentrically stranded, compressed 1350H-19 aluminum. Insulated with either polyethylene or cross-linked polyethylene (XLPE). Neutral messengers are concentrically stranded 6201, AAC, or ACSR.
About Raw Material of ABC Cable
We have our own processing factory of aluminium rod, which can ensure the quality
and greatly reduce the cost of conductor.
About Package
simple roll, plastic drum/reel, wooden pallet/box, cartons or customized as your requirement
About Asian Sun Group
1: a group with seven sub-companies;
2: Factory about 200,081 square meters;
3: 800 staffs and 40 engineers, 11 production lines;
4: production capacity: 100,000m/day.
Our Products
Mainly Electric Cables & Wires, 300 Varieties, 2000Kinds Specifications
| No. | Products Name |
| 1 | electrical wires, power cables, control cables |
| 2 | solar cables |
| 3 | aerial cables |
| 4 | all aluminum conductor(AAC) |
| 5 | aluminum conductor steel reinforced wire(ACSR) |
| 6 | all aluminum alloy conductor(AAAC) |
Our service
1) Inquiries are answered within 12 hours and OEM is welcome.
2) 11 production lines, experienced QC to control the quality of kinds of cables.
3) CCC Certificated, and can provide CE, RoHS and SGS certificates before exporting.
4) Grown from a small factory with annual turnover of $50,000,to over$50,000,000 during 10years.\
5) Ship your order immediately after contracted. We ship worldwide.
6) 800 staffs and 40 engineers, we all glad to provide you best service.
Welcome You Visit Our Factory!
Please Contact Us
Name: Mandy Liu
Position: International Trade Department
Mobile: + 86-137-2168-9492
Web: http://www.yr-group.cn
Group Address: 1209 Room, 12th floor, Luoyang Asian Sun Group Co., Ltd, Hundsun Science&Technology Park, Luoyang, Henan Province, China
Factory Address: Yichuan Electricity Industry zone, Luoyang, Henan Province, China
Welcome you come Luoyang and visit our factory!
Started in year 2006, Luoyang Asian Sun Group - formerly known as 'Luoyang YaRi'- was a small factory with only tens of employees back then, but after years of growing and developing, now we are a group company with 5 branch companies, with more than 800 employees including 100 engineers and technicians, and with registered capital 410 million RMB. Our factories are located in county Yichuan, Luoyang, Henan, China, and our headquarters are in the beautiful historic city Luoyang. Totally we have 20, 000 square meters area for production and management, with fixed assets valuing 960 million RMB.
Our main products are power transformer, ABC cable, ACSR, AAC, Aluminum rod, PV bracket, screw pile, power cable, and aluminum bar etc. We also carry on projects of engineering, electrical installation and other general contracting. Our research, production and management are strictly in accordance with the ISO9001 quality system, ISO14001 environment system, OHSAS18001 occupational health and safety management system, the EU TUV, etc. The quality assurance is carried out in every aspect of design, material selecting, production, testing, inspection and management.
At home, we have reached strategic cooperation agreements with State Grid Corporation of China, GD Solar Co., Ltd., Huaneng China, Datang Corporation, China Power Investment Energy Conservation and Environmental Protection Group, and other large state-owned enterprises. At abroad, our products have been exporting to Russia, Middle East Asia, European Union, South America, Africa and other parts of the world.
Our continuing growth and success have been the direct result of the excellent word-of-mouth we consistently earn from both our new and established clients. Thinking of others' benefit and win-win cooperation is the core idea of our company culture. Perfection is not easy to achieve, but we chase it and we can catch excellence. Our excellence is the glamour which brings the good quality and service into every clients.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
