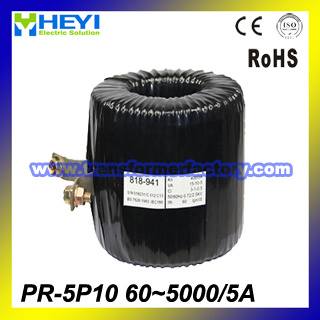

Pr Model Protective Current Transformer/ (PR-5P10) for Panel Meter

Name: Pr Model Protective Current Transformer/ (PR-5P10) for Panel Meter
Brand: all-electronics-online.com
SKU: 750255875
Availability: InStock
Rating: 4.3 (99 reviews)

Price:	US $ 1.0-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PR-5P10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Approve:	CE
Color:	Black
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

DESCRIPTION
PR Series Protective Current Transformer can work under such condition when system currentis much times than rated working current, also can work under exceeding measuring current transformer. When current transformer is used to power protective relay, it will keeps its electricalfeatures on many times working current, this ratio wiil be 5, 1 0, 20 0r even higher.

Protective grade: 5P10; 10P5; 10P10

SPECIFICATIONS

Rated Frequency()
Rated Test Voltage()
Rated short-time thermal current(lth)()
Rated dynamic curren t (ldyn)()
Rated voltaae (Um)()
Contin uou s -ove rload ()
Operating temperature()
Housing self-extinguishing class()
Safety factor()
Secondary current()

50/60Hz
3kv AC.(1min)
6oln
2.5lth
0.72Kv AC.
1.2ln
-10ºC~50ºC
VO
FS5
5A/1A

CI: 5P10 15VA

Spec.	100 /5A	150 /5A	200 /5A	250 /5A	300 /5A	400 /5A	500 /5A	600 /5A	800 /5A	1000 /5A	1200 /5A	1600 /5A	2000 /5A	2500 /5A	3000 /5A	3500 /5A	4000 /5A	5000 /5A
OD	100	100	100	96	96	96	102	110	120	120	123	123	123	178	178	182	182	184
ID	34	34	34	45	45	45	62	68	62	85	82	82	125	125	125	120	120	118
HT	180	130	110	110	110	90	110	88	22	68	60	68	40	40	40	35	35	38

Type	Ratio(A)	Burden(VA)	Dimension(mm)
Type	Ratio(A)	Burden(VA)	ID	OD	HT
PR-30 5P10	60/5	15	30	145	165
PR-34 5P10	100/5	15	34	100	180
PR-34 5P10	150/5	15	34	100	130
PR-34 5P10	200/5	15	34	100	110
PR-45 5P10	250/5	15	45	96	110
PR-45 5P10	300/5	15	45	96	110
PR-60 5P10	400/5	15	45	96	98
PR-60 5P10	500/5	15	60	100	100
PR-68 5P10	600/5	15	68	110	78
PR-85 5P10	800/5	15	85	120	78
PR-82 5P10	1000/5	15	82	123	70
PR-82 5P10	1200/5	15	82	123	70
PR-82 5P10	1600/5	15	82	123	60
PR-125 5P10	2000/5	15	125	178	38
PR-125 5P10	2500/5	15	125	178	35
PR-120 5P10	3000/5	15	120	178	35
PR-140 5P10	3500/5	15	140	200	35
PR-140 5P10	4000/5	15	140	200	35
PR-140 5P10	5000/5	15	140	200	35

We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on

1. Who we are

Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer

Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss

2 why choose us

We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.

3 Heyi Mission, vision values

Heyi mission is to provide reliable, accurate and customized current transformer solution

Heyi vision is leading global split core CT manufacture and energy solution provider

Values Enthusiastic by our work, we offer a quality personal and close service to our customers

Some products have been approved by CE and IEC certificates.
