Product Description

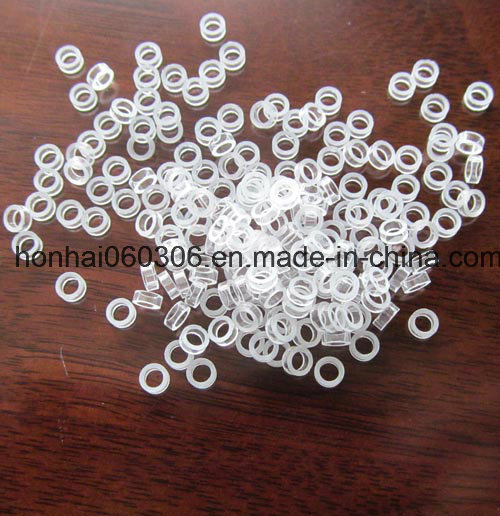

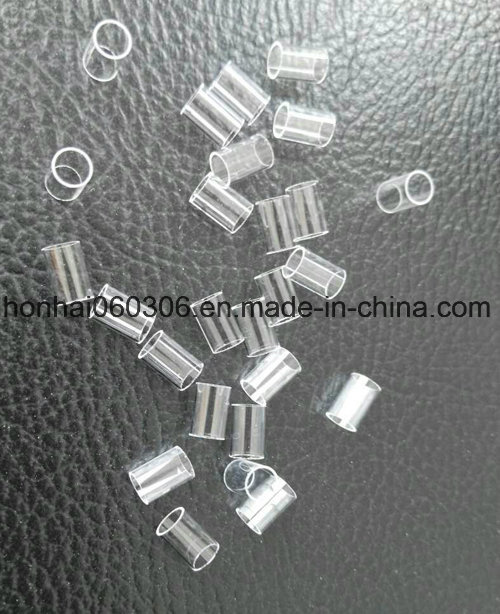

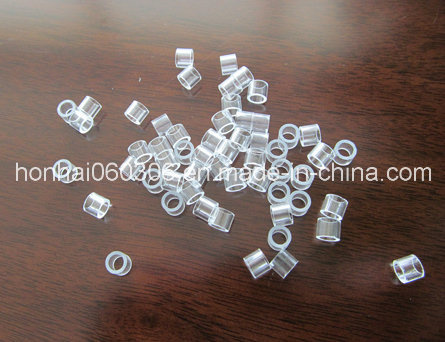

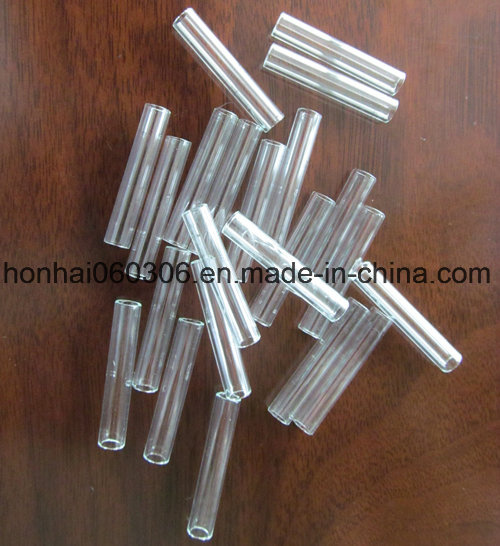

precision glass Fiber Optic Collimator Sleeves
FEATURES:
High power handling
Rugged and compact design
Low insertion loss
Low backreflection
Wide wavelength range
Wide range of beam diameters
GRIN, aspheric, achromatic, plano-convex, and
Biconvex lenses available
Singlemode, multimode, and polarization maintaining
Fiber versions
Diffraction limited optics
LOW COST!
APPLICATIONS:
Fiber optic device packaging, including WDM's
Splitters, and integrated optics
Source to fiber coupling
Fiber to detector coupling
SPECIFICATIONS:
Wavelength: 180nm - 2000nm
Backreflection: -35, -40, -50, and -60dB
Polarization
Extinction ratios: 20, 25, or 30dB
Beam Diameters: 0.2 to 22mm
Spot size: As small as <5 microns
Wavefront distortion: L/4 to l/10
Insertion Loss: £ 0.6 dB for 60mm separation
£ 0.3 dB for 10mm separation
PRODUCT DESCRIPTION:
We offers a complete line of fiber collimators and focusers with low
Backreflection, designed to collimate or focus light exiting a fiber to a
Desired beam diameter or spot size. By utilizing diffraction limited lenses,
Spot sizes of a few microns can be achieved. These devices can be used
With laser diodes, photodiodes, acousto-optic modulators and other fiber
Optic devices. Collimators and focusers can be used as matched pairs to
Couple light in and out of optical devices. This makes them ideal for fiber
Packaging of devices.
When using the above formulae, please exercise caution. Different
Definitions for the numerical aperture are used by fiber manufacturers. For
Instance, definitions based on 50 percent, 13.5 percent (1/e2), 5 percent,
And 1 percent intensity levels are all used.
| SN | OD(mm) | ID(mm) | Length(mm) |
| 1 | 1.01±0.03 | 0.31±0.04 | 11.2±0.1 |
| 2 | 1.6+0.01 | 1.005+0.01 | 4±0.1 |
| 3 | 1.796±0.005 | 0.95±0.05 | 4.9±0.1 |
| 4 | 1.8±0.01 | 1.025±0.005 | 4.0±0.1 |
| 5 | 2.2±0.01 | 1.025±0.005 | 4.0±0.1 |
| 6 | 2.2±0.005 | 1.6±0.01 | 4.0±0.1 |
| 7 | 2.76±0.01 | 1.81±0.005 | 9.0±0.1 |
| 8 | 2.78±0.01 | 1.81±0.005 | 8.0±0.1 |
| 9 | 2.78±0.03 | 1.885±0.015 | 8.5±0.1 |
| 10 | 2.976±0.01 | 1.808±0.04 | 12±0.1 |
| 11 | 3.0±0.1 | 2.0±0.03 | 19±0.1 |
| 12 | 3.0±0.05 | 1.8+0.05 | 4±0.1 |
| 13 | 3.05±0.01 | 1.81±0.005 | 8.0±0.1 |
| 14 | 3.2±0.02 | 1.812±0.005 | 9.0±0.1 |
| 15 | 3.3±0.1 | 1.81±0.005 | 3.0±0.1 |
| 16 | 3.3±0.05 | 2.07±0.06 | 7.5±0.02 |
| 17 | 3.37±0.02 | 2.812±0.005 | 9.0±0.1 |
| 18 | 3.5±0.02 | 1.81±0.005 | 4.7±0.1 |
| 19 | 3.5±0.1 | 2.5+0.05 | 3.5±0.1 |
| 20 | 3.6±0.05 | 3.0+0.05 | 9±0.1 |
| 21 | 3.7±0.02 | 1.81±0.005 | 4.7±0.1 |
| 22 | 3.7±0.05 | 2.607±0.005 | 4.7±0.1 |
| 23 | 4.0±0.01 | 2.415±0.005 | 11.5±0.02 |
| 24 | 4.1±0.05 | 2.807±0.005 | 4.7±0.1 |
| 25 | 4.13±0.03 | 2.88±0.02 | 16±0.1 |
| 26 | 4.1±0.1 | 2.8+0.05 | 3±0.1 |
| 27 | 4.2±0.05 | 2.93±0.01 | 17.0±0.1 |
| 28 | 4.4±0.02 | 1.8±0.02 | 1.9±0.1 |
| 29 | 4.45±0.05 | 3.3±0.01 | 16±0.1 |
| 30 | 4.6±0.02 | 3.05±0.007 | 15±0.1 |
| 31 | 4.6±0.03 | 3.6±0.02 | 19±0.1 |
| 32 | 4.9±0.02 | 3.1±0.02 | 5±0.05 |
| 33 | 6.8±0.03 | 4.04±0.02 | 4±0.1 |
| 34 | 9.9 | 6.84±0.03 | 3±0.1 |
Table3- Application of the electric light sources
(BJ-40 and molybdenum glass group)
| SN | OD(mm) | ID(mm) | Length(mm) |
| 1 | 1.60±0.03 | 0.90±0.03 | 10±0.2 |
| 2 | 2.0±0.05 | 0.8±0.01 | 20 |
| 3 | 2.6±0.05 | 0.8±0.05 | 1000 |
| 4 | 2.94±0.03 | 2.0±0.01 | 20±0.1 |
| 5 | 3.0±0.1 | 0.7±0.02 | 9.1±0.1 |
| 6 | 3.15±0.03 | 2.0±0.01 | 1100 |
| 7 | 4.55±0.1 | 0.7±0.05 | 19.1±0.1 |
| 8 | 5.55±0.1 | 0.75±0.05 | 19.1±0.1 |
| 9 | 6.0±0.05 | 5.0±0.01 | 170 |
| 10 | 3.0±0.03 | 2.0±0.02 | 1000 |
