Precision Manufacturing Terminal Block, Professional Terminal Connector

Precision Manufacturing Terminal Block, Professional Terminal Connector
Price: Negotiable/Piece
Trade Terms: FOB,CIF
Min Order: 300/Piece
Pay Type: L/C,T/T
Prod Model: USLKG
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: Uslkg
Application: Conduct Electricity
Type: Terminla Block
Certification: Ce
Brand: Longroad

Product Description


General:

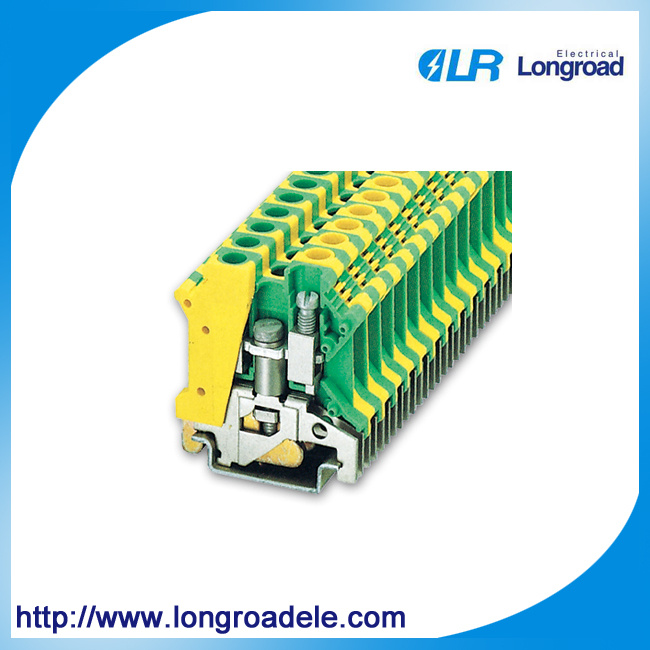

USLKG series combined terminal row adopts frame type screwconnection structure. The design complies with IEC60947-1 standards, which is widely used in the circuit of AC 50Hz (60Hz), rated voltage 660V, DC 40V and below, rated sectional area 0.75~150mm² conncction conductor, it also is suitable for connecting the circle copper conductor of tube terminal that is not specially processed or pressure welding.

Characteristics:
1,Reasonable installation structure design, wide general-purpose nature, can be used both G type and TH type guide rail. If it is above 50mm, adopts fasten accessory installation.
2,Small volume, complete set of spccification, big connectcd conductor sectional area and good electrical conductivity, the one that is below 50mm adopts copper press line frame and copper fasten screw; and the one that is above 50mm, adopts copper press line frame and steel screw and copper skirt plate. It has big tighten moment and self-locking function.
3,The strong combined function makes the connection of conductor be simpler.

Explain:
(1)End covcr: Thickncss 1.5mm grey
(2)10 Center counection-strips, can be divided into 2 position or 3 position.
(3)Isolator bridge bar: 10-position, divisible need cushion block.
(4)Switch bar for 2 terminal blocks complete, add end cover between two teminals.
(5)Separating plate: be used for electrical separation of neighbouring brodges.
(6)Partition plate: 1.5mm Thickness
(7)Unviersal end fixed piece.

Model

Hard Wire (mm2)

Soft Wire (mm2)

Rated Current
(A)

Dimension
(mm)

USLKG2.5

0.2-4

0.2-2.5

32

6.2 x 42.5 x 42

USLKG3

0.2-4

0.2-2.5

32

6.2 x 42.5 x 42

USLKG5

0.2-6

0.2-4

41

6.2 x 42.5 x 47

USLKG6N

0.2-10

0.2-2.5

57

6.2 x 42.5 x 47

USLKG10N

0.5-16

0.5-10

76

10.2 x 42.5 x 47

USLKG16N

2.5-25

4-16

101

12.2 x 42.5 x 54

USLKG35N

0.75-50

0.75-35

150

15.2 x 50.0 x 62

USLKG50

16-50

25-50

150

20 x 70.5 x 81.5
Long Road Electric Co. Ltd founded in 2010, is located in the largest manufacturing base of low-voltage electric equipment of Wenzhou China, which is called "the Electric Device Metropolis of China". Long Road Electric specialized in the SMC, DMC and PLASTIC materials energy meter boxes Manufacturing, International trade and service.

Long Road Electric Co, Ltd regards quality of products as life, Longroad Electric Co., Ltd has been granted ISO9001 management system certifications. The comprehensive product line has more than 100 models which have been approved by TUV, CE, CB, SGS, RoHS, SASO. The products sells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa, Nigeria etc...More than 70 countries and regions.

Long Road Electric Co. Ltd is always striving hard to provide the best services and competitve pricing to all customers.
