Prepreg DMD Insulation Paper

Name: Prepreg DMD Insulation Paper
Brand: all-electronics-online.com
SKU: 666755852
Availability: InStock
Rating: 4.9 (105 reviews)

Price:	US $ 4000/Ton
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Ton
Pay Type:	L/C,T/T,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	0.20-0.35X960mm
Markets:	North America,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
0.18-0.35mm:	960mm 60kg/Roll
Application:	Motor
Type:	Insulation Paper
Chemistry:	Inorganic Insulation
Material:	Paper
Thermal Rating:	F 155
Maximum Voltage:	20KV~100KV
Color:	Red
Brand:	Chr

Product Description

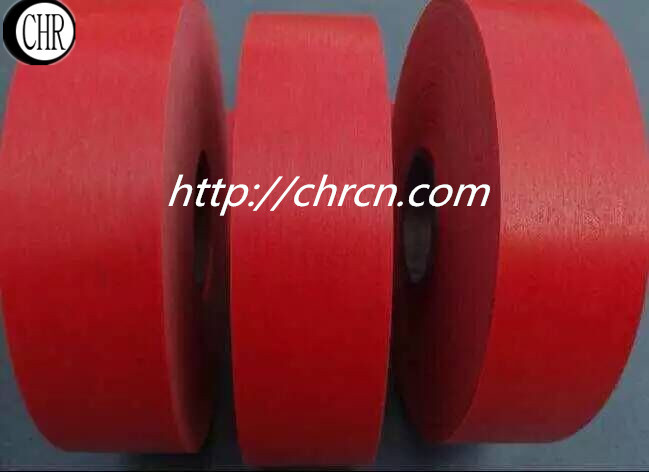

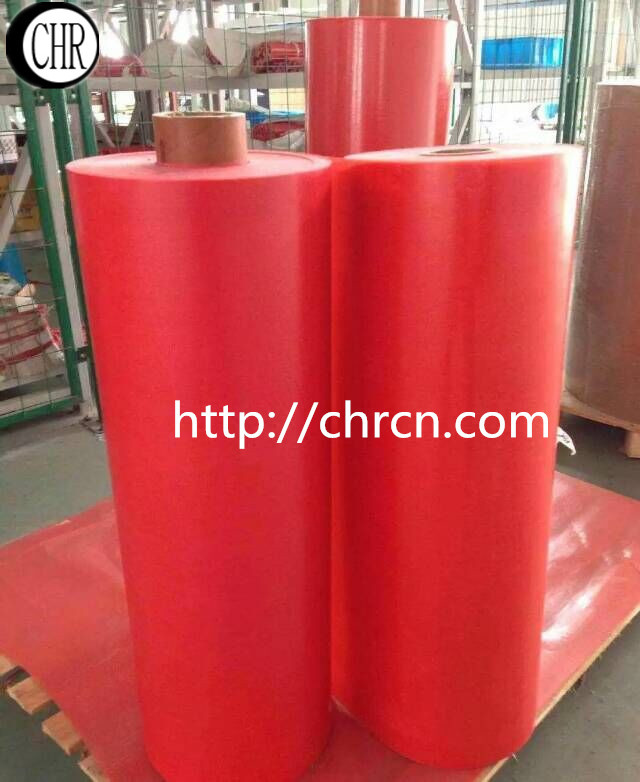

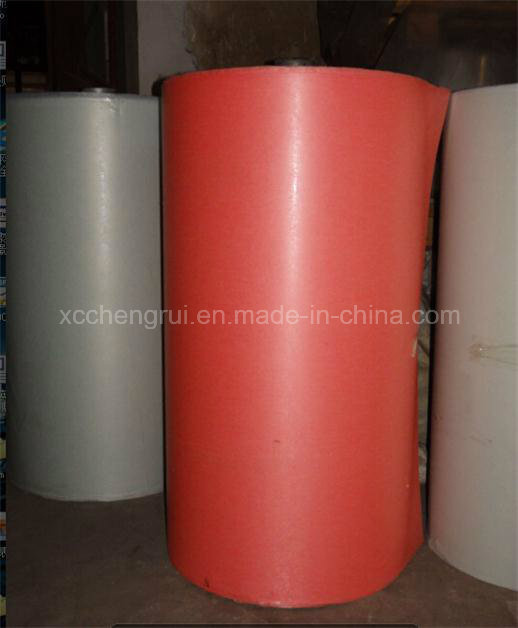

PREPREGED DMD insulation paper
Epoxy-resin prepreg polyester film and non-woven fabric composite , heat temperature: 155 centigrade
advantage: this material has good heat-resistance, sound dielectrical property and mechanical property. It is compatible with more gules,resins and varnishes. When cured to C-stage in moderate temperature, it will firmly adhere on the surface of copper or aluminium metals, without producing any small molecular volatiles.
Applications:
It is suitable for layer insulation of copper foil or aluminium foil on low-tension coils of dry-type transformers as well as suitable for slot and turn-to turn insulation of B-class and F-class motors and electrical appliances.
thickness: 0.18mm 0.20 0.25mm 0.30 0.35mm width: 960mm

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
