Printed Circuit Board 2 Layer PCB Board 0.6mm Thick
| Price: |
US $ 1.8/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-121-V1.21 |
| Final Foil External: |
1 Oz |
| Final Height Of PCB: |
0.6mm |
| Surface Finish: |
No Surface Finish Requried, Copper Exposure. |
| Solder Mask Color: |
Gloss Green |
| Colour Of Component Legend: |
White |
| Via: |
Plated Through Hole(Pth) |
| Test: |
100% Electrical Test Prior Shipment |
| Minimum Trace and Space: |
12 Mil/20 Mil |
| Minimum / Maximum Holes: |
0.3/0.3mm |
| Board Plating: |
0.0029" |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
PCB RO4350b 20mil |
| Material: |
Hydrocarbon/Woven Glass |
| Insulation Materials: |
Glass Reinforced Hydrocarbon |
Product Description

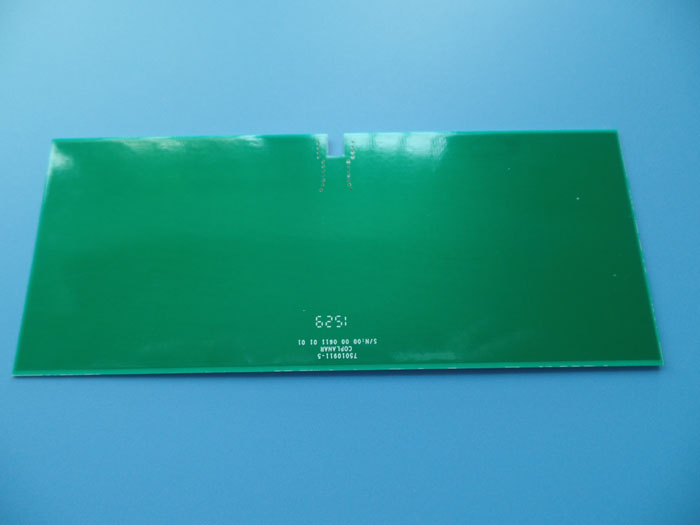

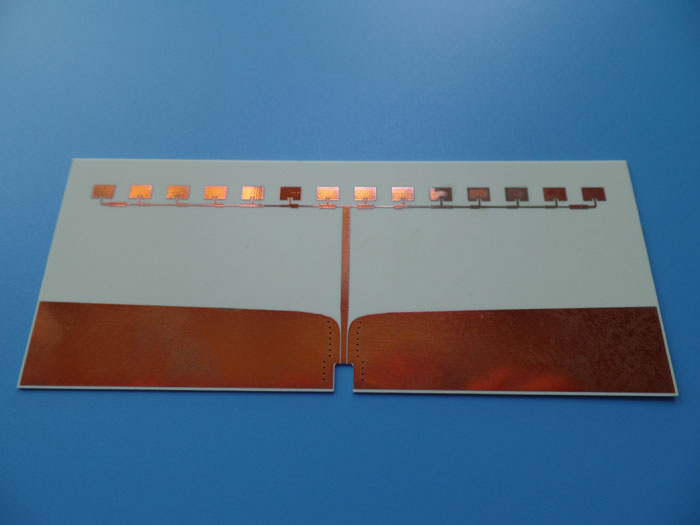

High Frequency printed Circuit Board PCB RO4350B 20 mil(0.508mm) UL Certified Green Solder Mask Applied In Splitter
Commodity IntroductionThis is a type of RO4350B PCB for the application of Splitter. It's a 2 layer board at 0.6mm thick. The base
laminate is from ROGERS CORP., Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Cla
-ss 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 19 x 73mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1 oz)+plate TOP layer |
| RO4350B 20 mil (0.508mm) |
| copper ------- 35 um(1 oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 12 mil/20 mil |
| Minimum / Maximum Holes: | 0.3/0.3mm |
| Number of Different Holes: | 1 |
| Number of Drill Holes: | 22 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4350B 20 mil (0.508mm), Tg 288ºC |
| Final foil external: | 1 oz |
| Final foil internal: | 0 oz |
| Final height of PCB: | 0.6mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | No surface finish requried, Copper exposure. |
| Solder Mask Apply To: | TOP, 12micron Minimum |
| Solder Mask Color: | Gloss Green, Taiyo PSR-2000GT600D |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300 |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated through hole(PTH), Tented. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Splitter, Media Access Control
Door Entry Systems
POE Switches
Wireless CCTV Systems
Motor Drive |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
RO4000 Series:
A. Excellent high frequency performance due to low dielectric tolerance and loss.
B. Stable electrical coefficient of dielectric constant.
C. Excellent dimensional stability.Frequently Asked Questions
How do you control the quality?
We believe engineering design prevents problems from occurring in preproduction. Our PCB and Manufacturing process are certified by authorized organizations.
100% tests are inclusive of electrical test and AOI inspection, high voltage test, impedance control test, micro-section, solder-ability test, thermal stress test, reliability test, insulation resistance test and ionic contamination test etc.
