Printed Circuit Board 6 Layer Immersion Gold PCB Design
| Price: |
US $ 2.85/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-109-V1.09 |
| Final Foil External: |
1 Oz |
| Innner Copper Thick: |
1 Oz |
| Final Height Of PCB: |
1.6mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Green |
| Colour Of Component Legend: |
White |
| Via: |
Plated Through Hole(Pth), Via Tented. |
| Minimum / Maximum Holes: |
4 Mil/4 Mil |
| Board Plating: |
0.0030" |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Multialyer PCB Board Manufacturing 6 Layers FR-4 CTI 175-249V Immersion Gold PCB Applied In Air Heating System design

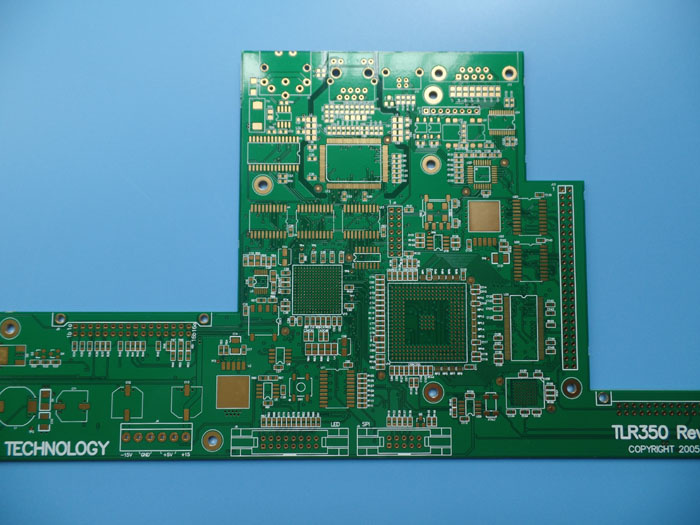

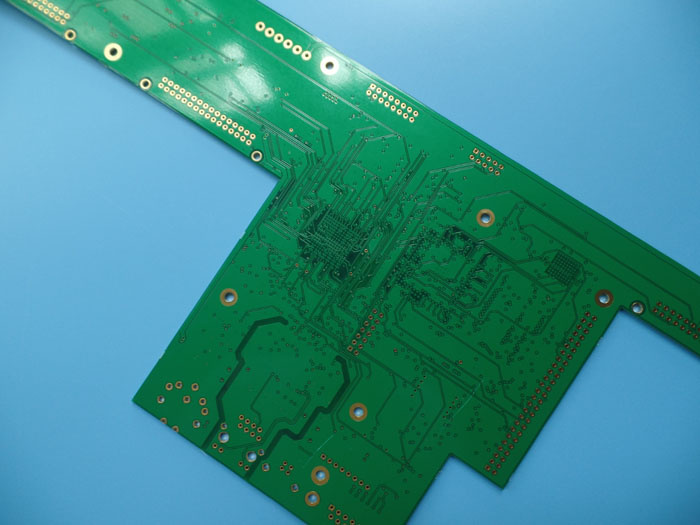

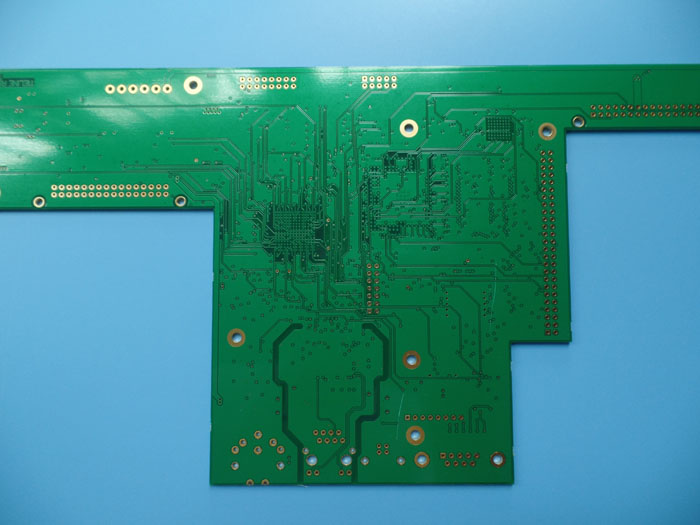

Commodity IntroductionThis is a type of FR-4 PCB for the application of Air Heating System. It's a 6 Layer board at 1.6mm thick.
The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012
Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| BOARD TYPE | |
| Number of Layers | Multilayer, 6 layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 18 um(0.5 oz)+plate TOP layer |
| Prepreg 7628 0.195mm |
| copper ------- 35 um(1 oz) MidLayer 1 |
| FR-4 0.4mm |
| copper ------- 35 um(1 oz) MidLayer 2 |
| Prepreg 7628 0.195mm |
| copper ------- 35 um(1 oz) MidLayer 3 |
| FR-4 0.4mm |
| copper ------- 35 um(1 oz) MidLayer 4 |
| Prepreg 7628 0.195mm |
| copper ------- 18 um(0.5 oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4 mil/4 mil |
| Minimum / Maximum Holes: | 0.3/5.5mm |
| Number of Different Holes: | 12 |
| Number of Drill Holes: | 9510 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | ITEQ FR-4 Tg135, CTI 175-249V |
| Final foil external: | 1 oz |
| Final foil internal: | 1 oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold 0.05 µm over 3 µm Nickel |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Green, TAI YO PSR-2000 KX700G |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, TAIYO S-380W |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated through hole(PTH), via tented. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Air heating system, 48V Power Supply
24 Volt Power Supply
DC Inverter
Astron Power Supply
Power Suply |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
BichengPCB serves global customers from Shenzhen, ChinaDifferent plant scale to suit for your requirements16000 square meter factory building30000 square meter month capability8000 types of PCB per monthISO9001, ISO14001, TS16949, UL Certified Variety of PCB technology to meet the market demandsHDI boardHeavy copper boardHybrid material boardBlind via boardHigh frequency boardMetal core boardImmersion gold boardMultilayer boardBackplane boardGold finger board Comprehensive sales service presale, in sale and after sale.Quick CADCAM checking and free PCB quotationFree-of-charge PCB panelizationPrototype PCB capabilityVolume Production capabilityQuick turn-around samplesFree-of-charge PCB testSolid carton packing
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
